36V eBike Battery 14Ah | Dorado 458mm | Incl Charger

36 Volt

14 Ah

504 Wh

Samsung Cells

Dorado-Pro

DC 2.1 / 5.5MM Charging Port

2A or 3A Battery Charging Options

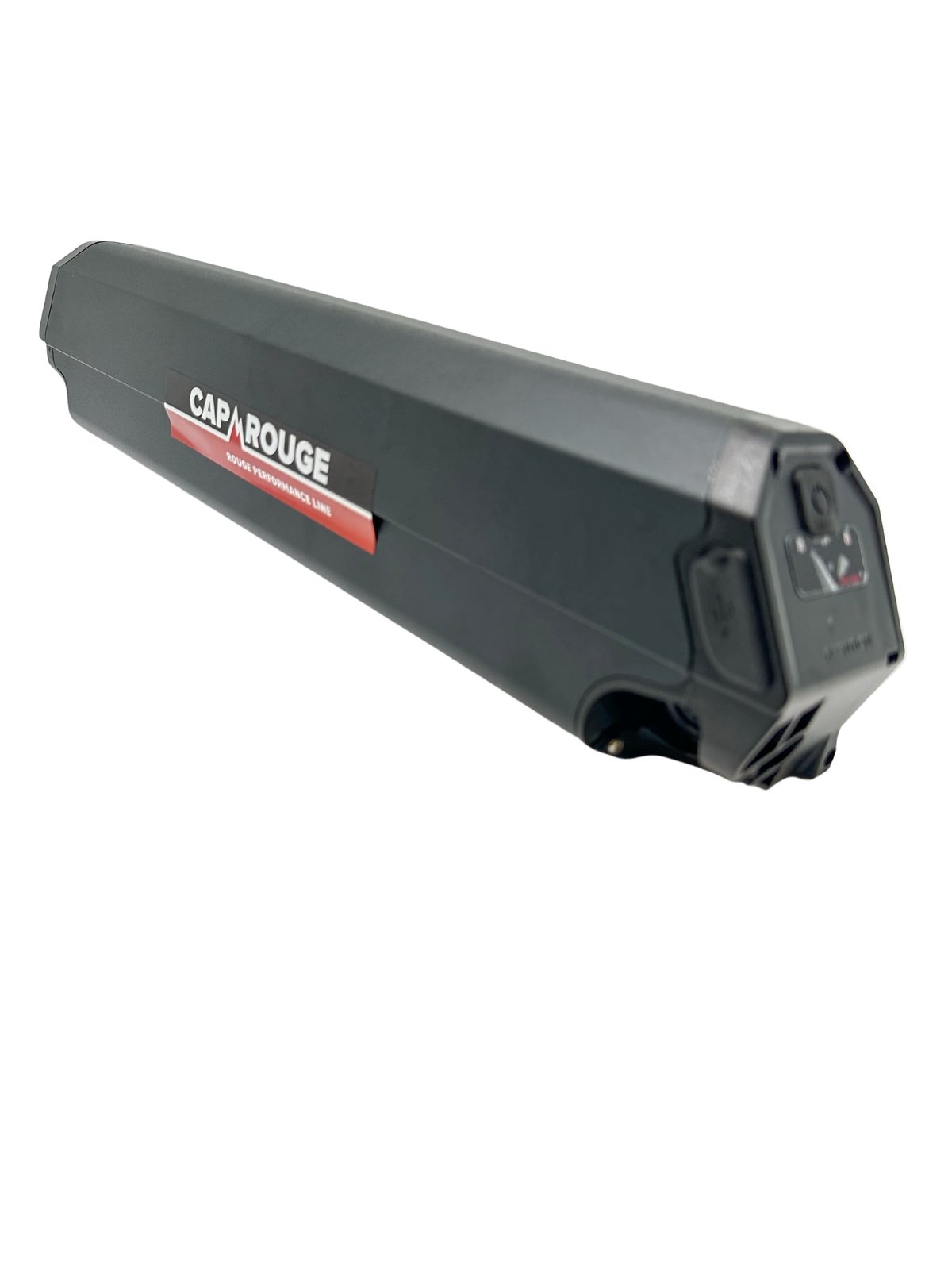

Removable Branding

L 458mm  x  W 61mm x  H109mm

Fits A Wide Variety of Chinese Style Bikes

Also Fits:

Also suits 36V NCM i5 Moscow, Aspen, Venice, Milano

High quality, long life battery built using Samsung 35E18650 cells

This replaces the longer Dorado battery that is fit in a wide variety of bikes. This case is slightly wider, to accommodate extra cells, while still allowing it to fit in the standard Dorado bracket.

In frame battery, mounting brackets, keys and charger, fits a wide range of Chinese built bikes that have in frame batteries.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

• 36 Volts
• 14 Ah
• 504 Wh
• 10S4P
• 2A or 3A Battery Charger Options

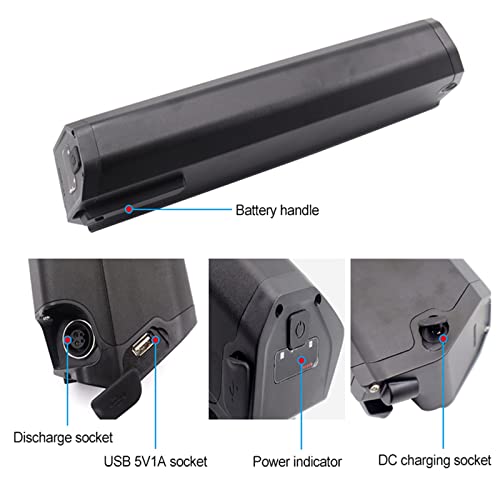

• DC 2.1 / 5.5MM Charging Port
• 3A maximum charge input
• Samsung 35E cells, tested to EN62133-2-22017
• Note: frame batteries vary in size and connection please check carefully your connection

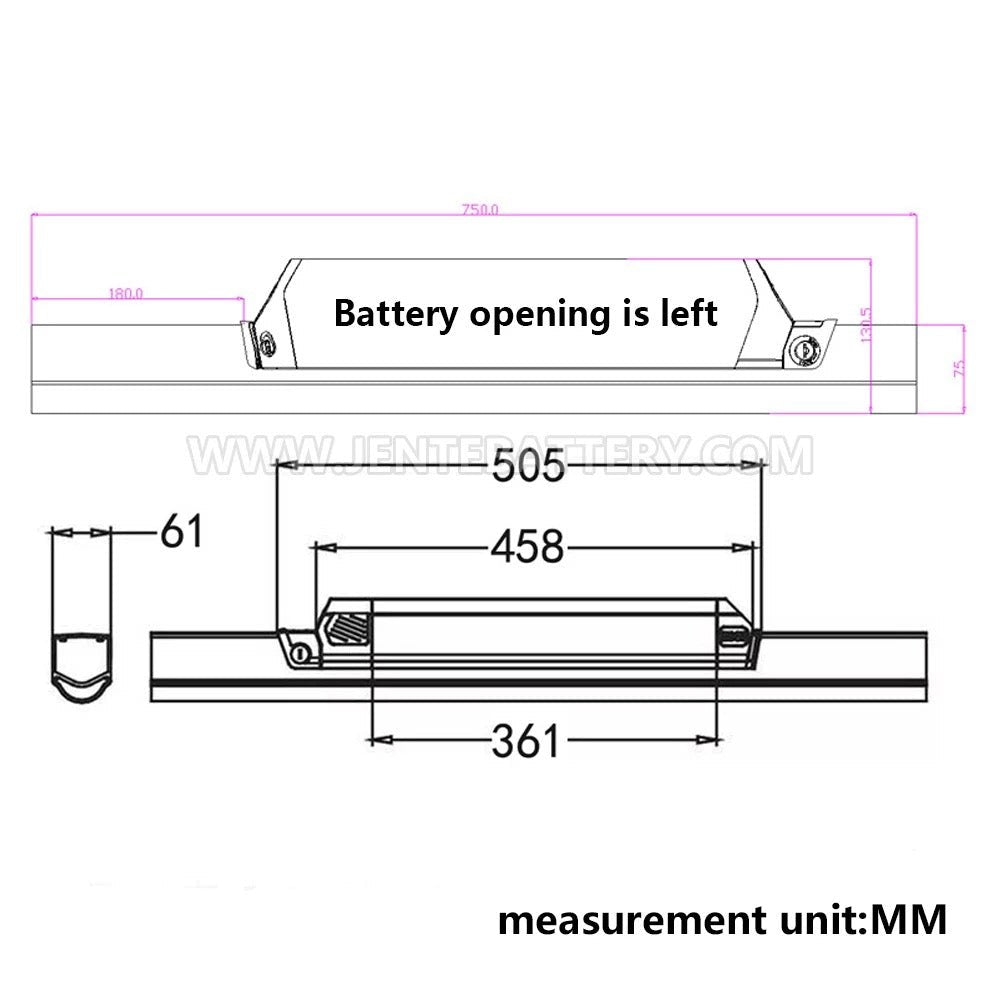

• Dimensions L 458mm  x W 61mm  x H 109mm
• Continuous discharge 30A
• 3.1 KG excluding charger
• 2 Keys included
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
