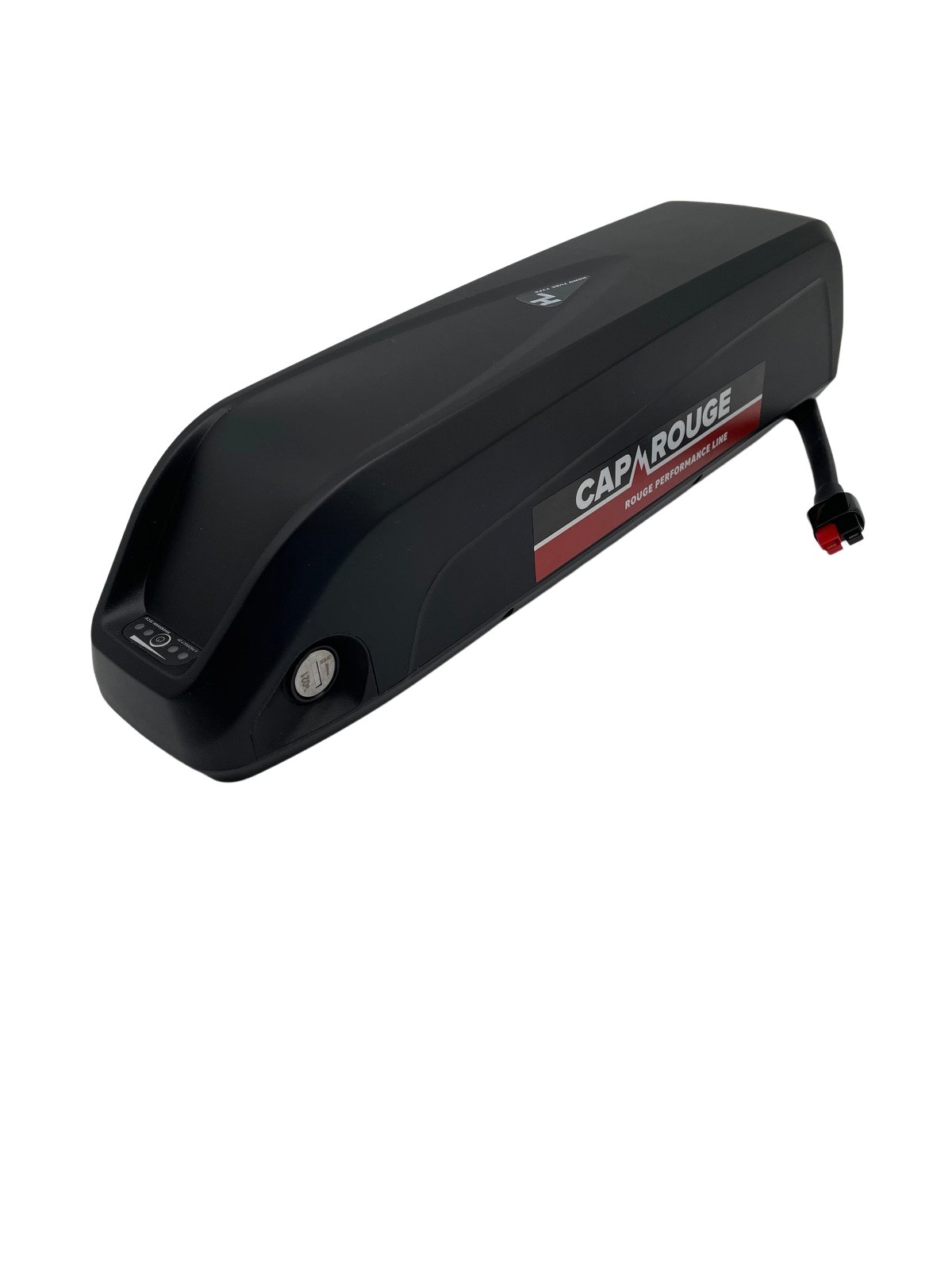

36V eBike Battery 14Ah | Hailong Downtube | Samsung Cells

36 Volts

14.5 Ah

505 Wh

Samsung 35E 18650 Cells

30A Continuous Discharge BMS - For Motors Up To 1000 Watts

ST3 3 Pin Charging Port (Free Single Pin Charger Adapter Available If Required - Select From Drop Down Menu)

2A, 3A or 4A Battery Charger Options

Removable Branding

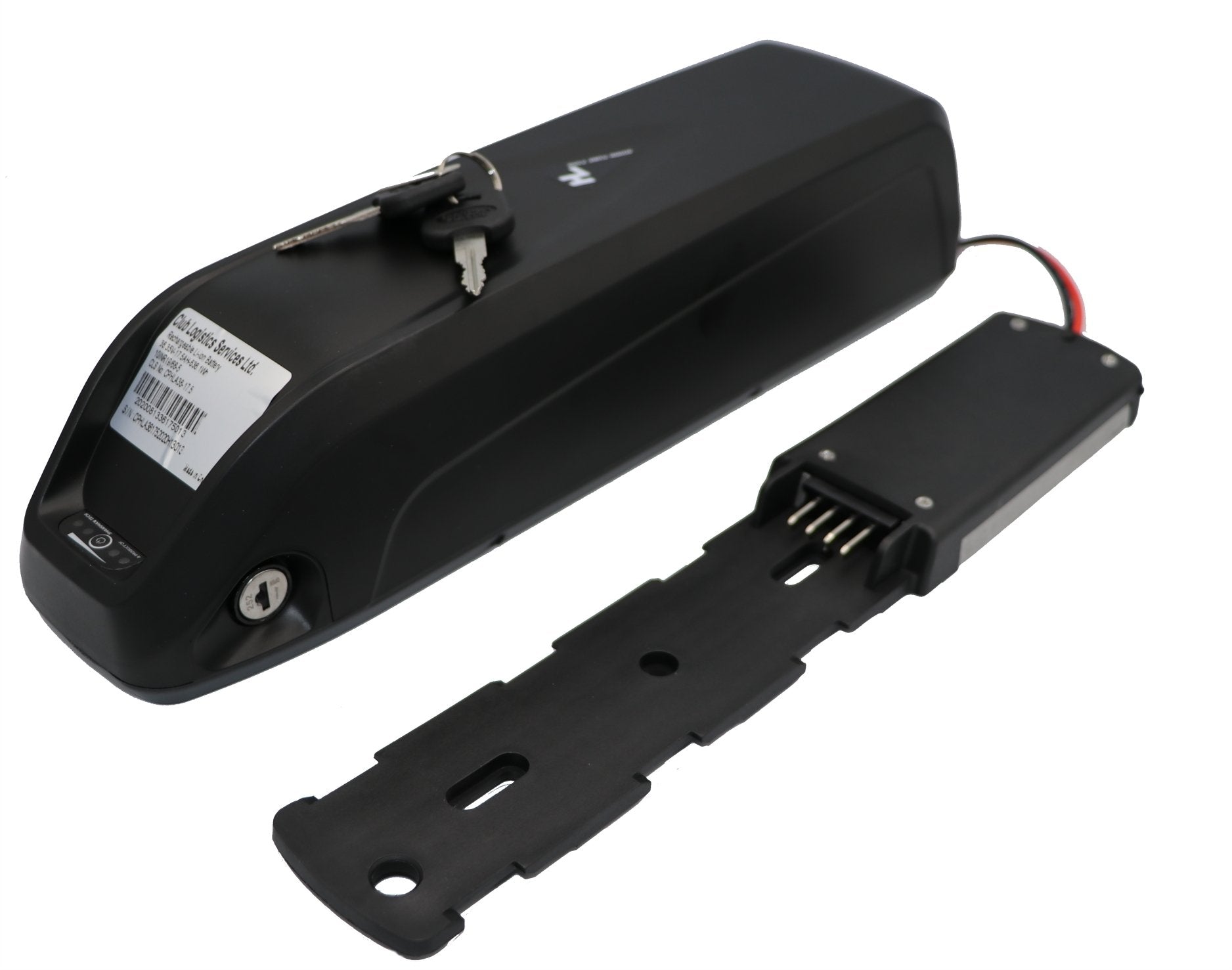

Hailong 01 Casing - 4 Pin Model

Independently tested and compliant to IEC 62133:2:2017

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

Also fits Michael Blast Greaser earlier models

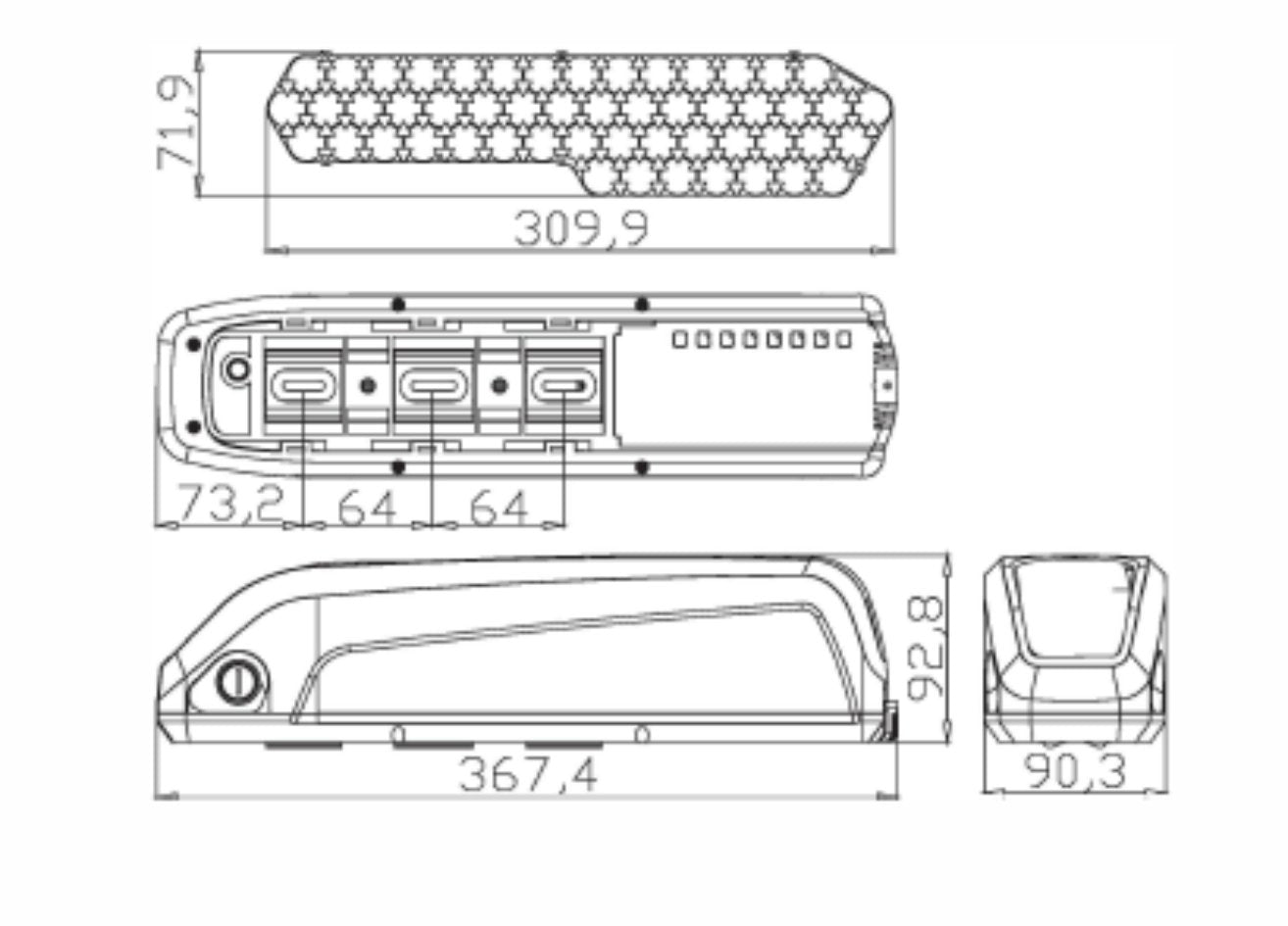

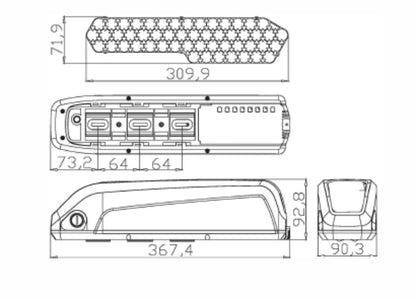

Dimensions: L 367mm - W 90mm - H 92mm

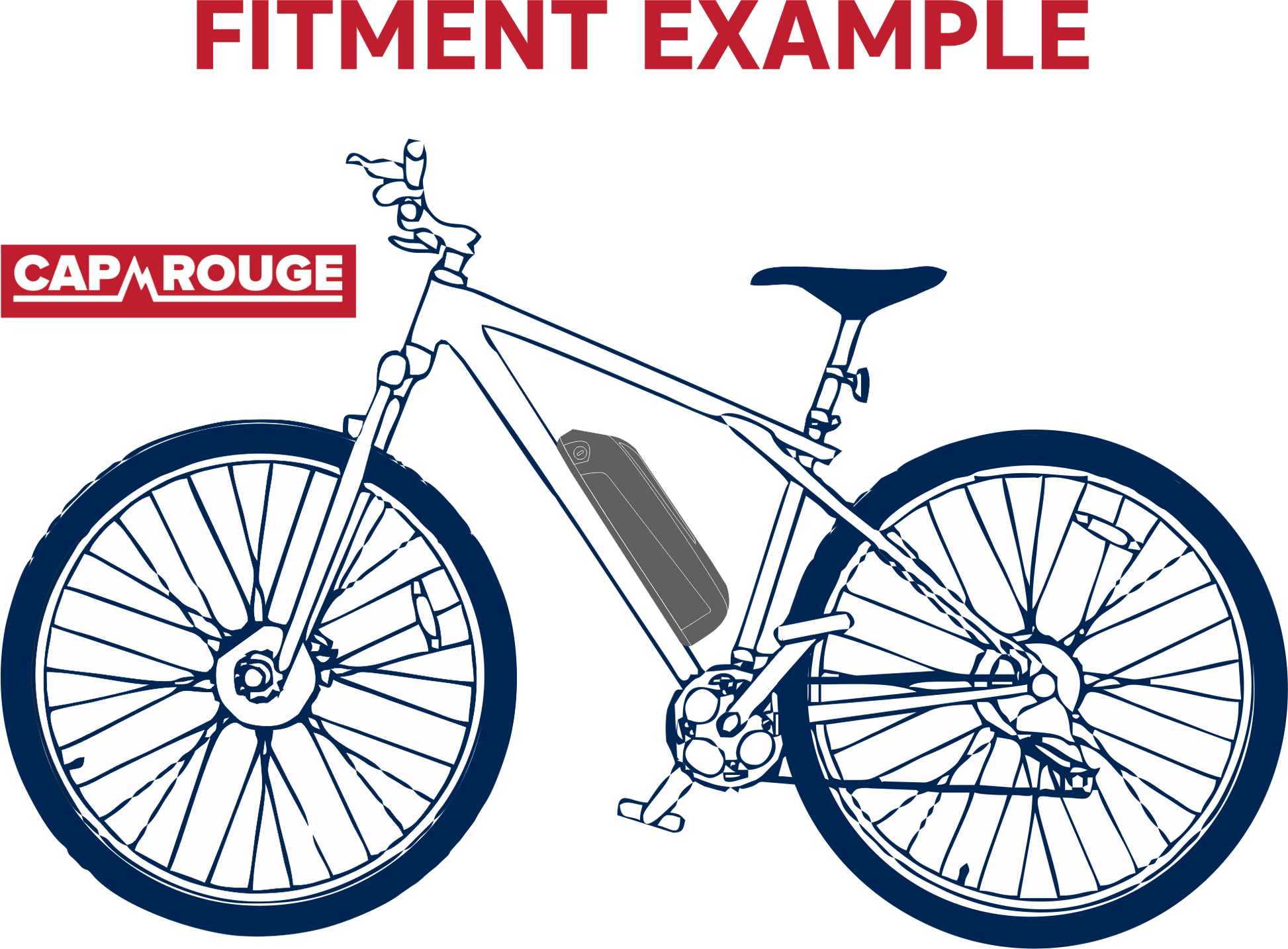

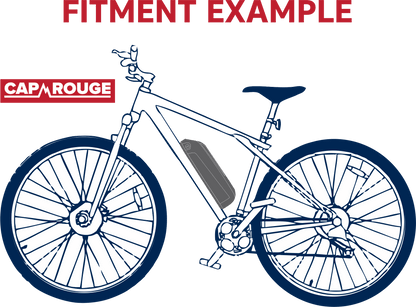

Hailong 01 battery, fits a broad range of bikes including:

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1000W

High quality, long life battery built using 18650 cells

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

• 36V

• 14 AH
• 504Wh
• Samsung 35E 18650 cells, tested to IEC62133
• Dimensions: L 367mm - W 90mm - H 92mm including mounting bracket
• Weight 3.1Kg Excluding Charger
• 4 Pin model
• 2A, 3A or 4A Battery charger options

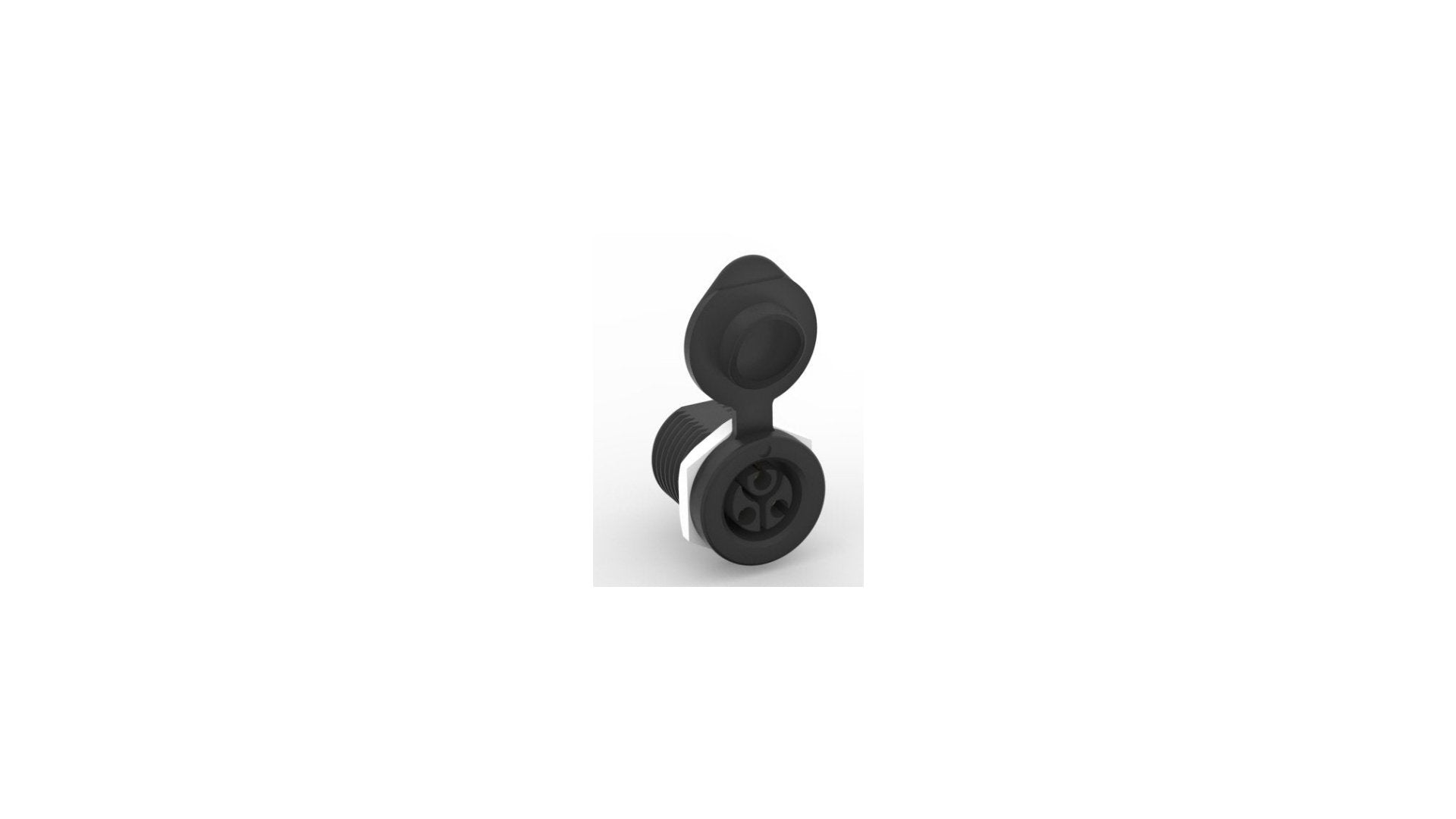

• ST3 3 Pin charging port

• Discharge cable with Micro Anderson connector

• 5A maximum charge input

• Keys with docking station
• 30A Continuous discharge - For motors upto 1000W
• Battery Management System (BMS) Managing

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
