36V eBike Battery 14Ah | Dorado 393mm | Samsung Cells

36 Volt

14 Ah

504 Wh

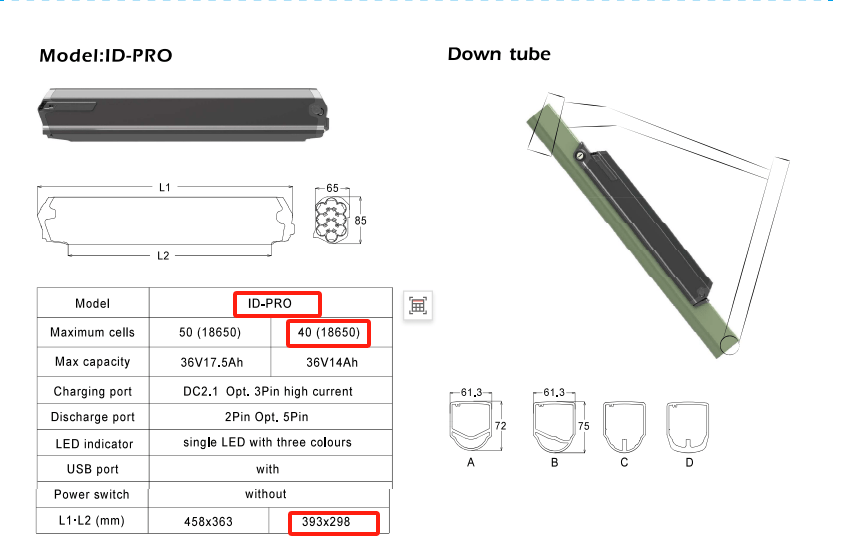

Dorado ID-PRO Battery

DC 2.1 / 5.5MM Charging Port

Samsung 35E 18650 Mah Cells

2A or 3A Battery Charger Options

Removable Branding

Direct Replacement for Lekker X eBike and Outback Models

Also Fits A Wide Variety of Chinese Style Bikes

Dorado Battery - Samsung 35E 18650 MAH Cells

393mm Long x 61.3mm Wide x 75mm High

440mm Length Includes Bracket Ends (Bracket Ends Not Included)

This battery is one of Cap Rouge specialties. This battery is for long life and high performance.

In frame battery, fits a wide range of bikes that have in frame batteries.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

• 36 Volts
• 14 Ah
• 504 Wh
• 3.2 KG
• Dimensions: L 393mm - W 61.3mm - H 75mm (Short Version) Excludes Bracket Ends
• Samsung 35E 18650 cells, tested to EN62133-2-22017
• Note: frame batteries vary in size and connection please check carefully your connection

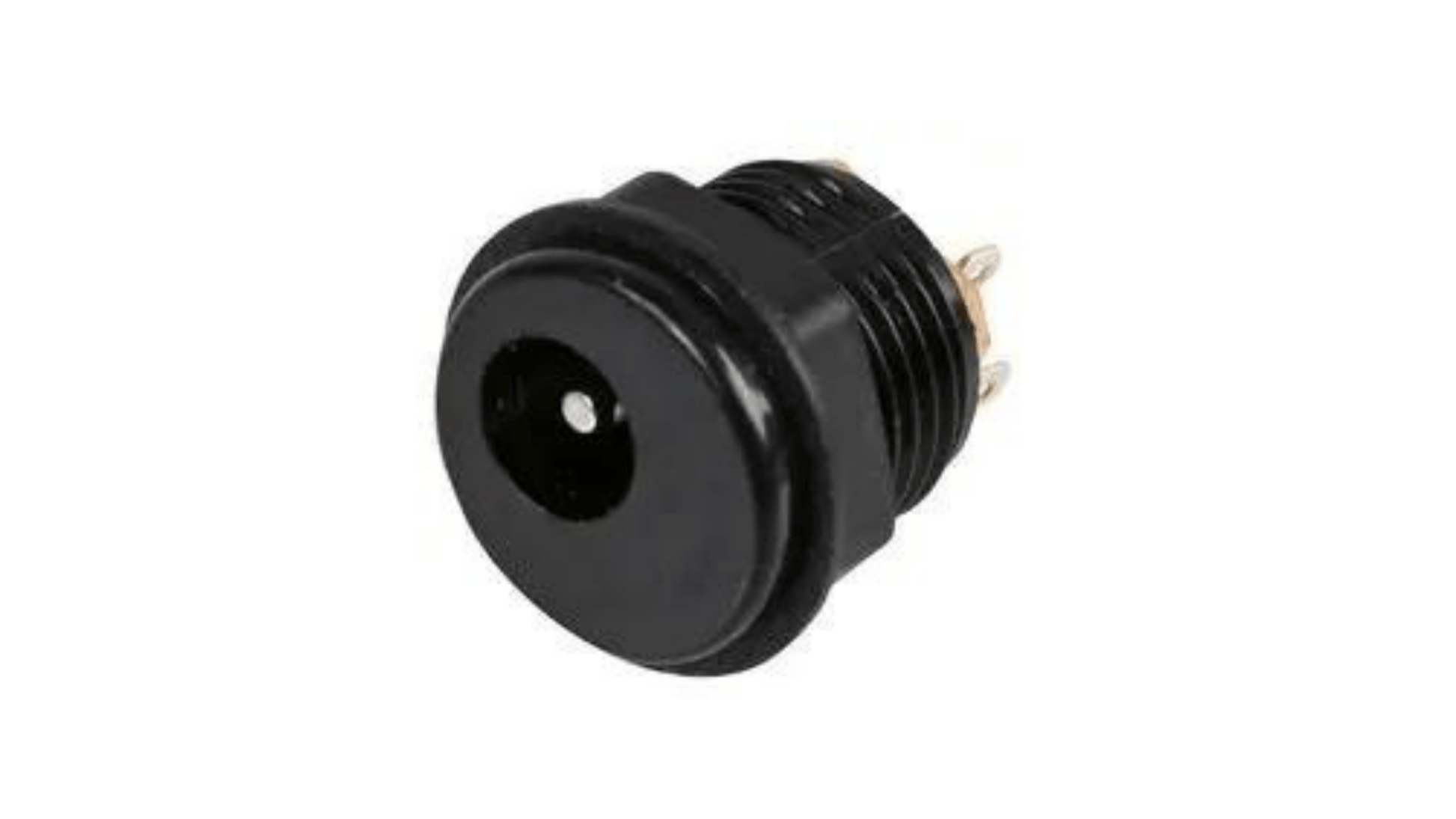

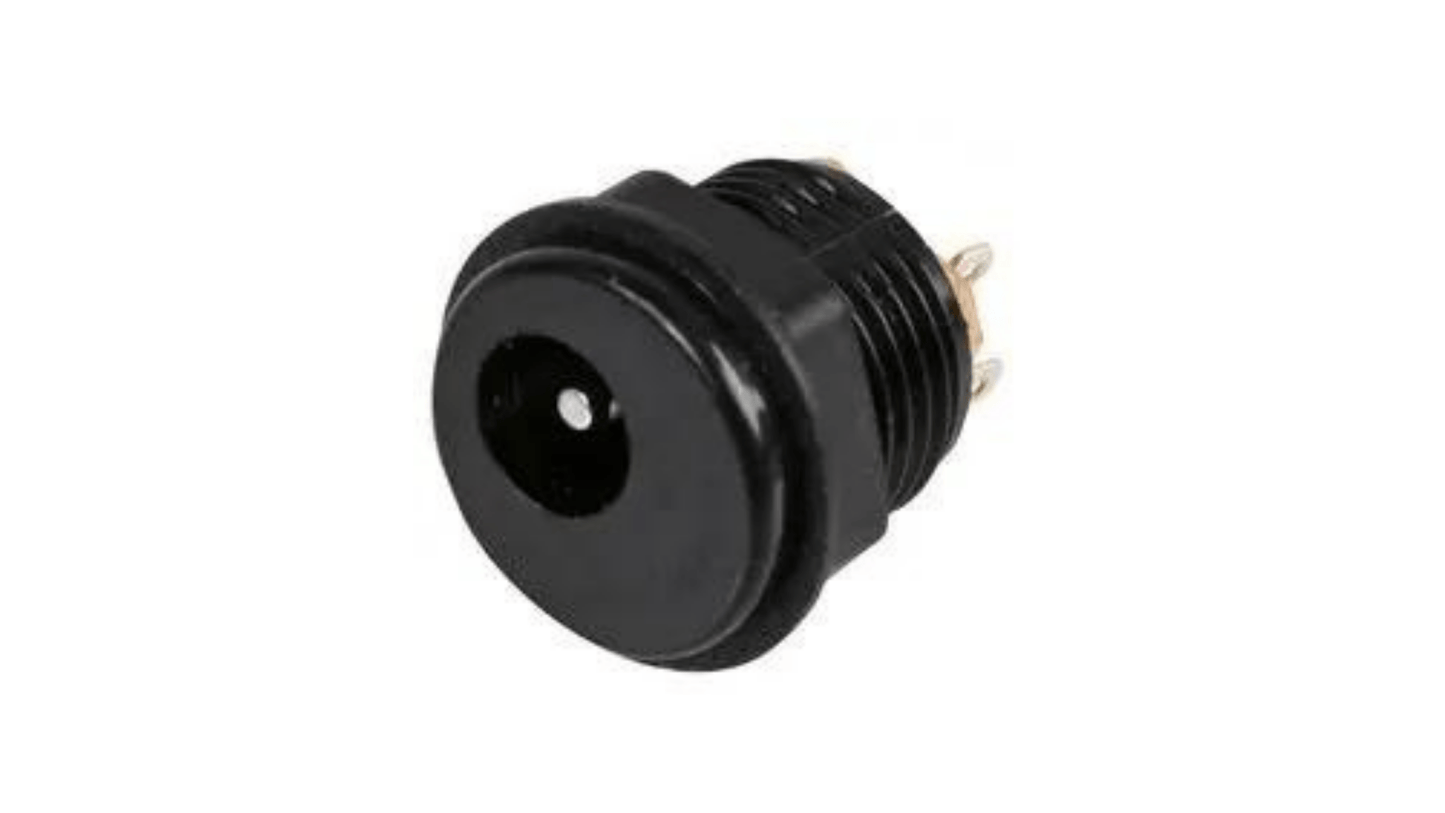

• DC2.1 Single pin charging port
• 2A or 3A Battery charger options
• 3A maximum charging input
• 30A Continuous discharge BMS
• Battery Management System (BMS) Managing

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
