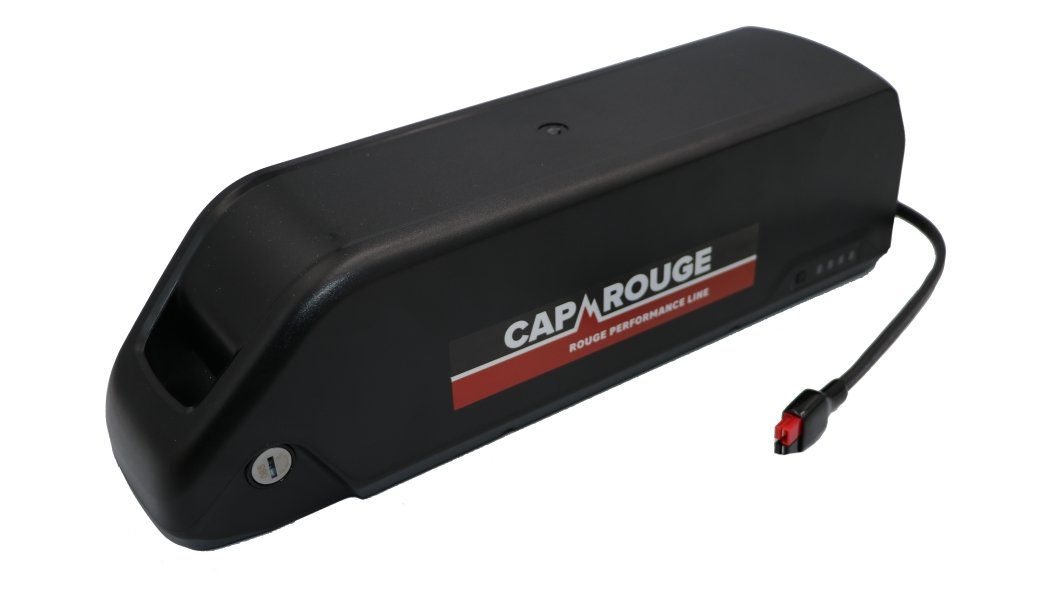

36V eBike Battery 15Ah | Downtube | Samsung Cells

36 Volts

15 AH

540 Wh

40A Continuous Discharge BMS - For Motors Up To 1300 Watts

ST3 3 Pin Charging Port (Free Single Pin Charger Adapter Available If Required - Select From Drop Down Menu)

2A, 3A, 4A or 1-5 Variable Battery Charger Options

Removable Branding

Reention DP-21700-4 Casing

UN38.3 Certification and MSDS

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

Dimensions: L 367mm - W 95mm - H 98mm

Also Fits:  Earth Ant eBike 20 Inch X 4" Fat Folding, Earth Ant eBike 20 Inch X 4" Cargo Bike

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1300W

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

• 36 Volts
• 15 Ah
• 540 Wh
• 10S3P
• Dimensions: L 367mm - W 95mm - H 98mm

• Samsung 50G 5000mah cells, tested to EN62133-2-22017
• 3.15kg, excluding charger
• 40A continuous discharge, for motors upto 1300W
• Discharge cable fitted with micro Anderson connectors
• 1-5A, 2A, 3A or 4A Battery charger options

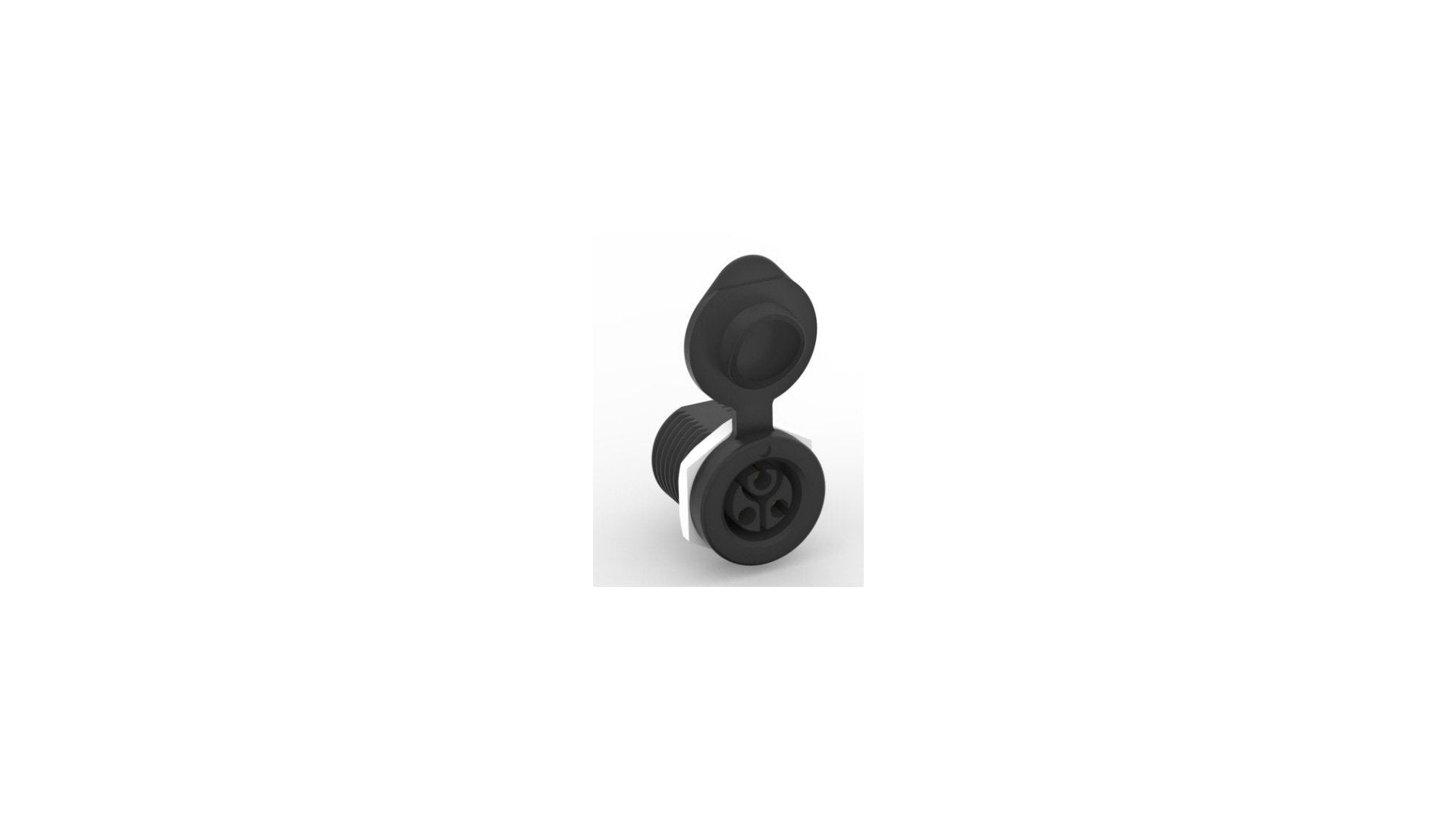

• ST3 3 pin charging port
• 5A maximum charge input

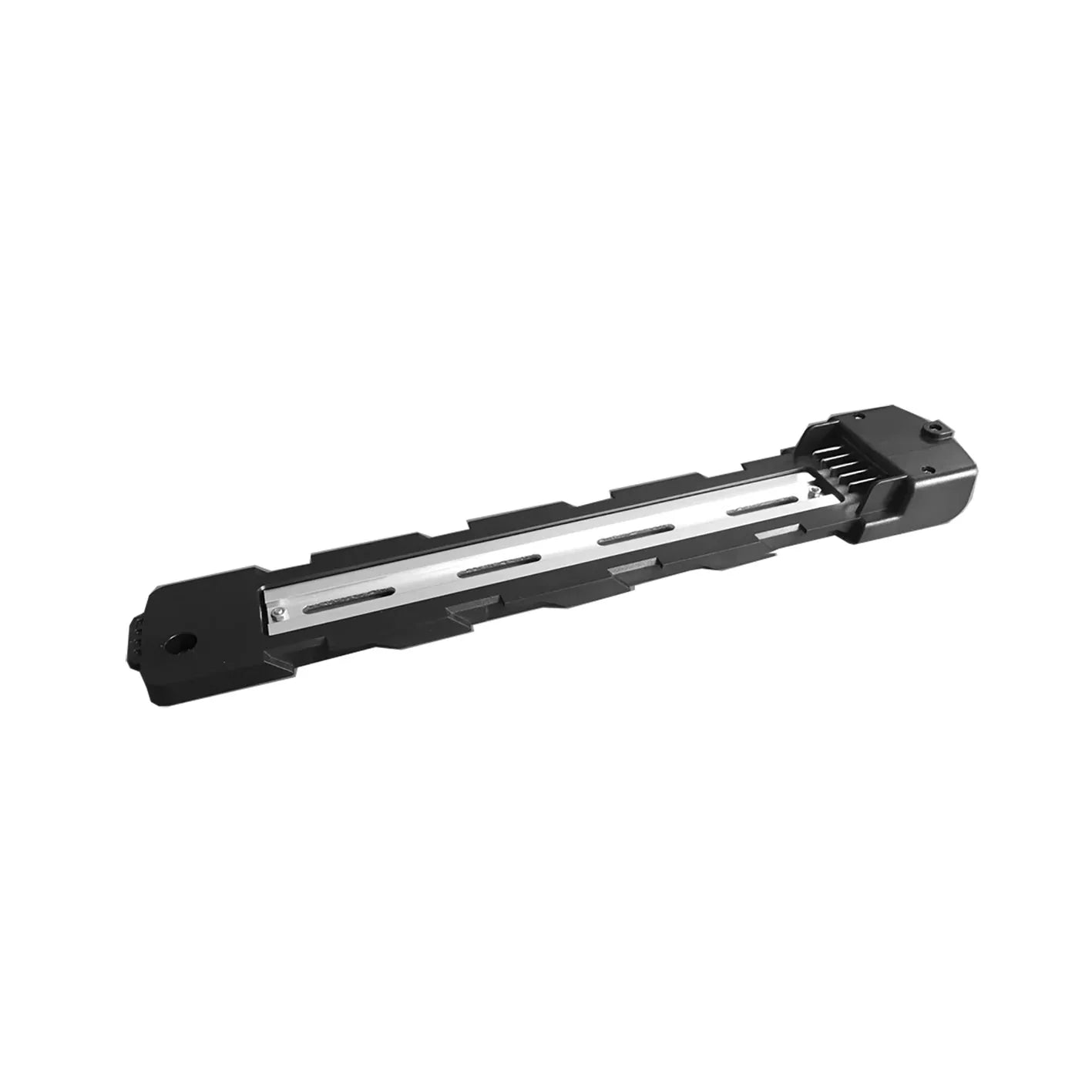

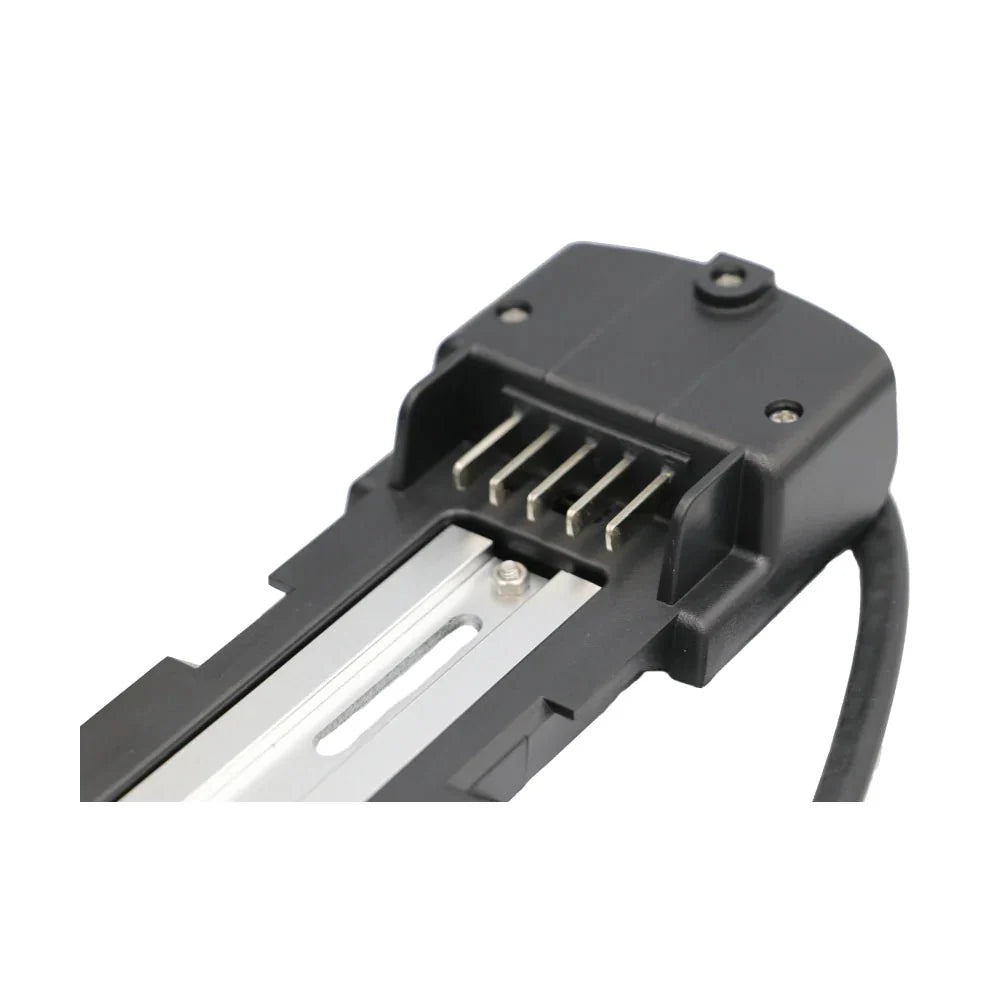

• Battery base bracket including which has 4 mounting slots
• Battery power indicator
• 2 keys

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
