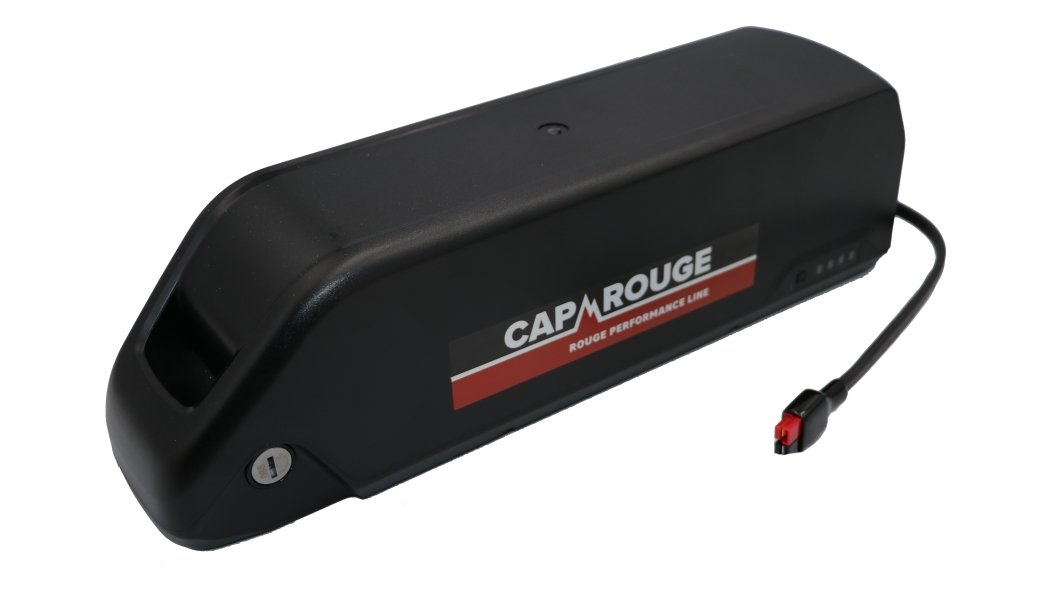

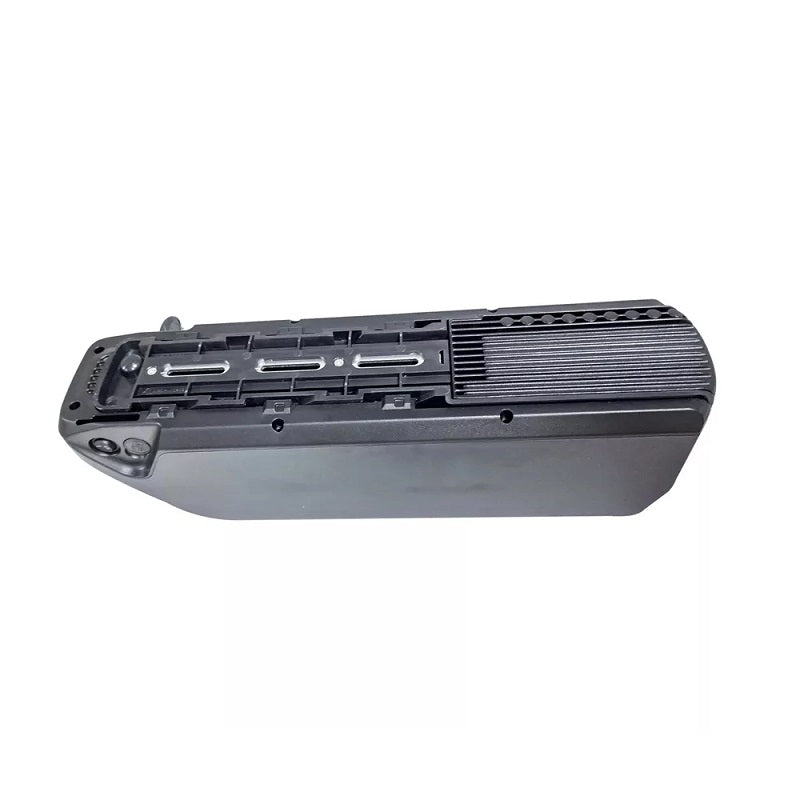

36V eBike Battery 20Ah | Downtube | Samsung Cells

36 Volt

20 Ah

720 Wh

Samsung 50G 5000mAh 21700 Cells

40A Continuous Discharge BMS - For Motor Up To 1300 Watts

ST3 3 Pin Charger Port

2A, 3A, 4A or 1-5 Variable Battery Charger Options

Removable Branding

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

UN38.3 Certification and MSDS

Dimensions: L 367mm - W 95mm - H 98mm

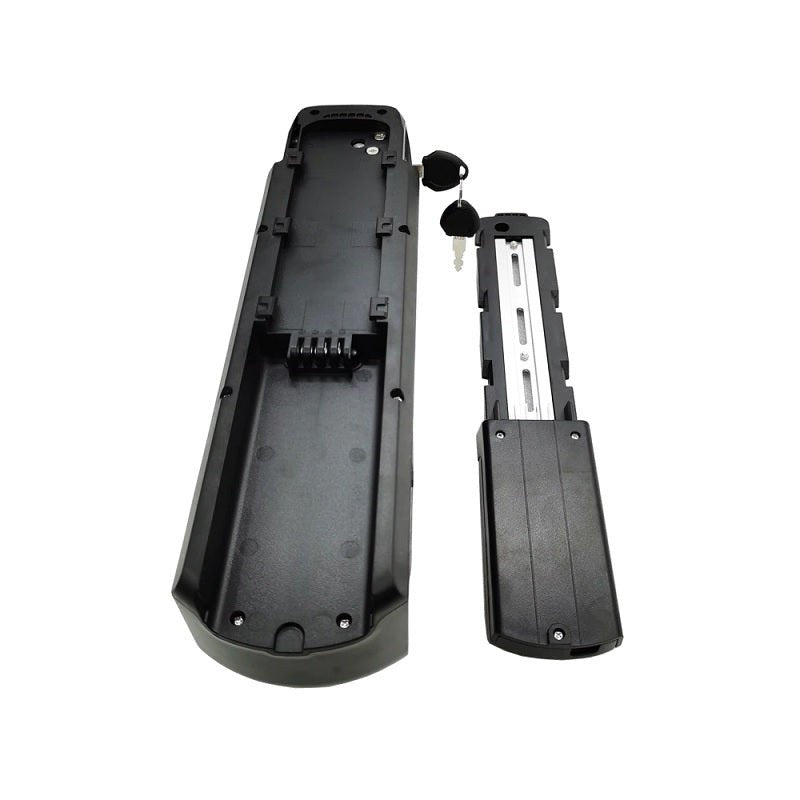

Battery Case Model - Reention DP-21700-4C - Same cradle/bracket used for DP-4C, DP-5C, DP-6C, DP-7C, DP-9C

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1300W

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

• 36 Volts
• 20 Ah
• 720 Wh
• 10S4P
• Battery case model - Reention DP-21700-4C - Same cradle/bracket used for DP-4C, DP-5C, DP-6C, DP-7C, DP-9C
• 40A Continuous discharge, for motors up to 1300W
• Dimensions: L 367mm - W 95mm - H 98mm
• Samsung 50G 5000mAh 21700 cells, tested to EN62133-2-22017
• 1-5A, 2A, 3A, 4A or 1-5A variable battery charger options

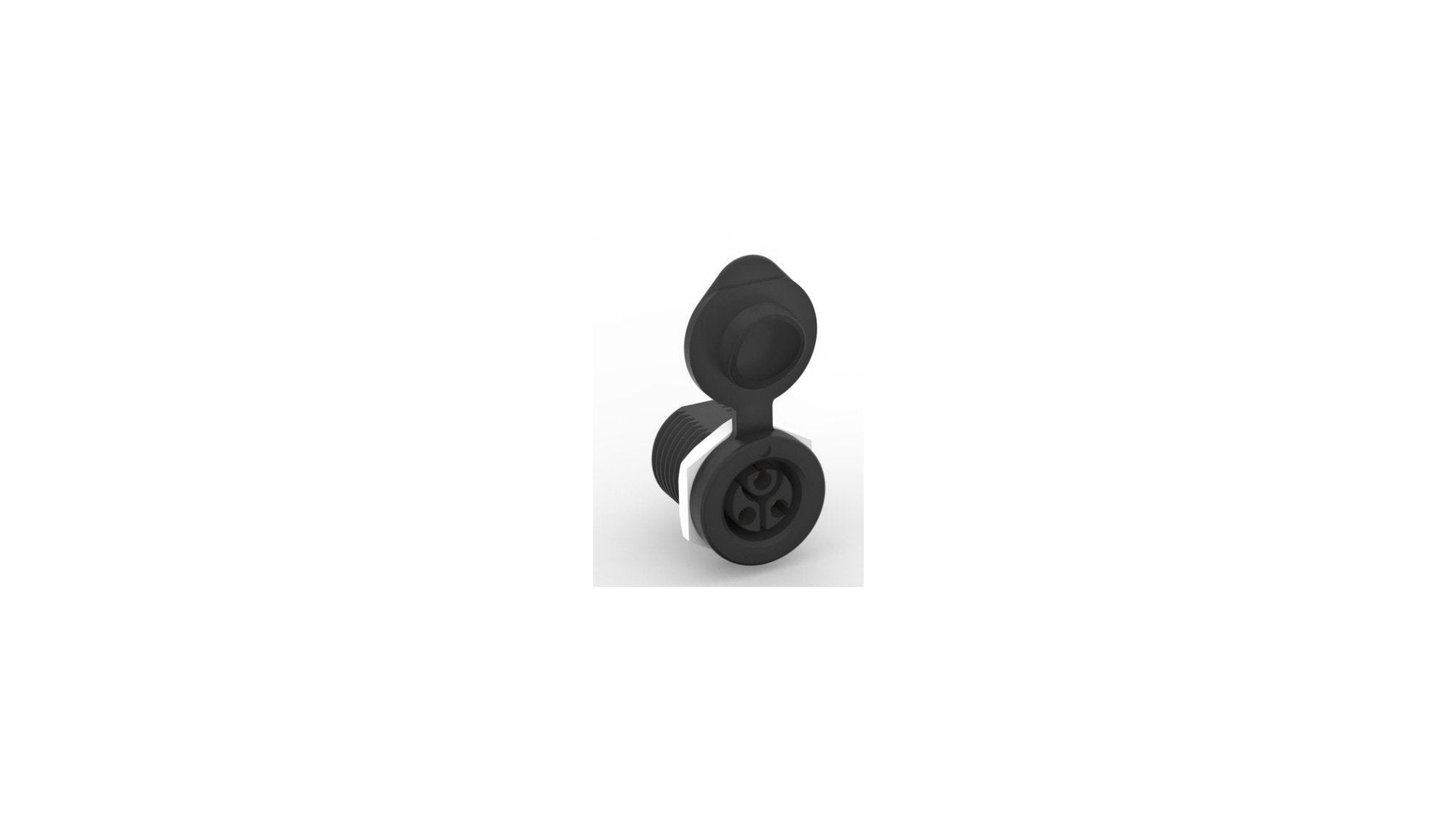

• ST3 3 pin charging port
• 5A maximum charge input

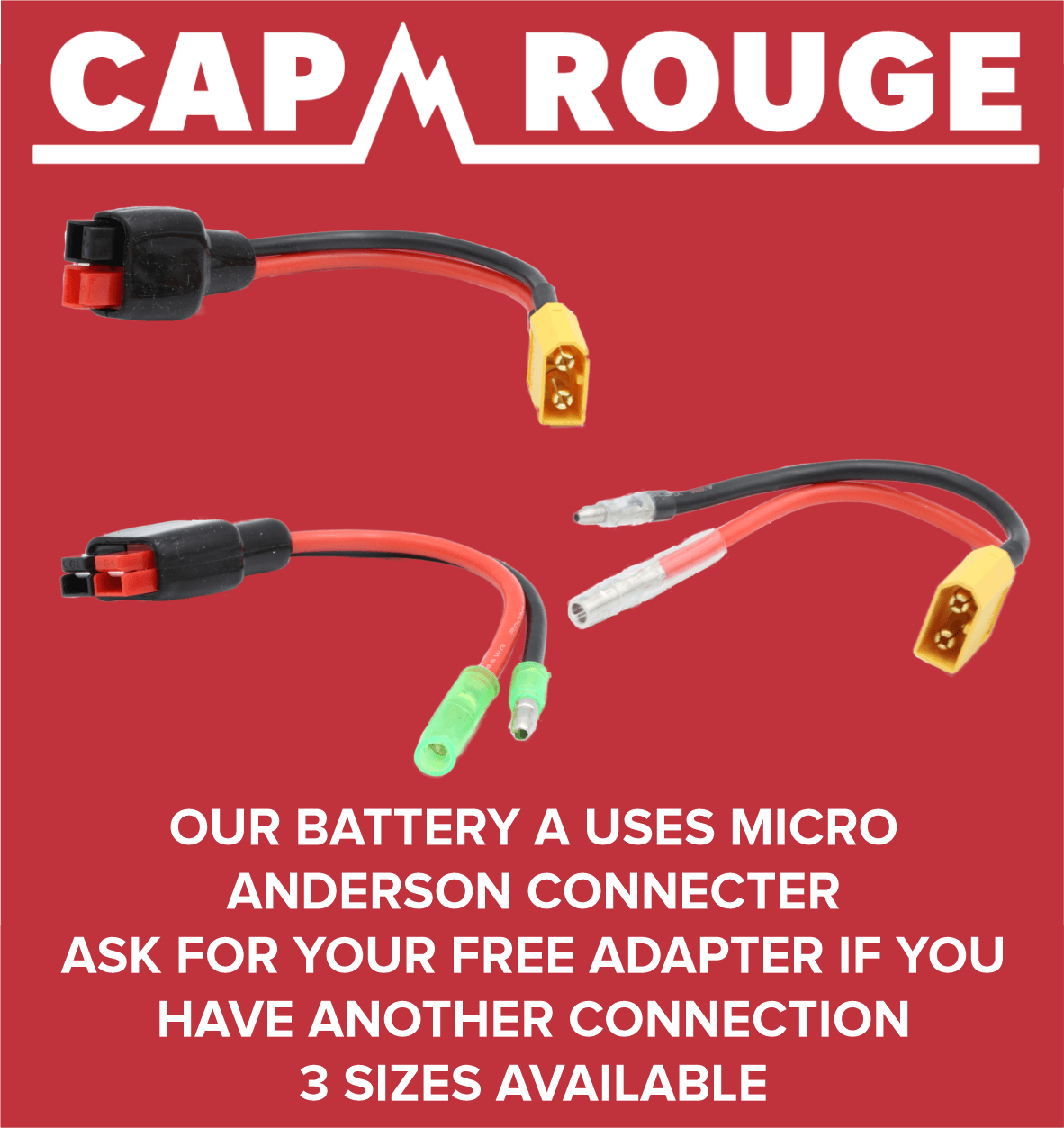

• Discharge cable with Micro Anderson connector

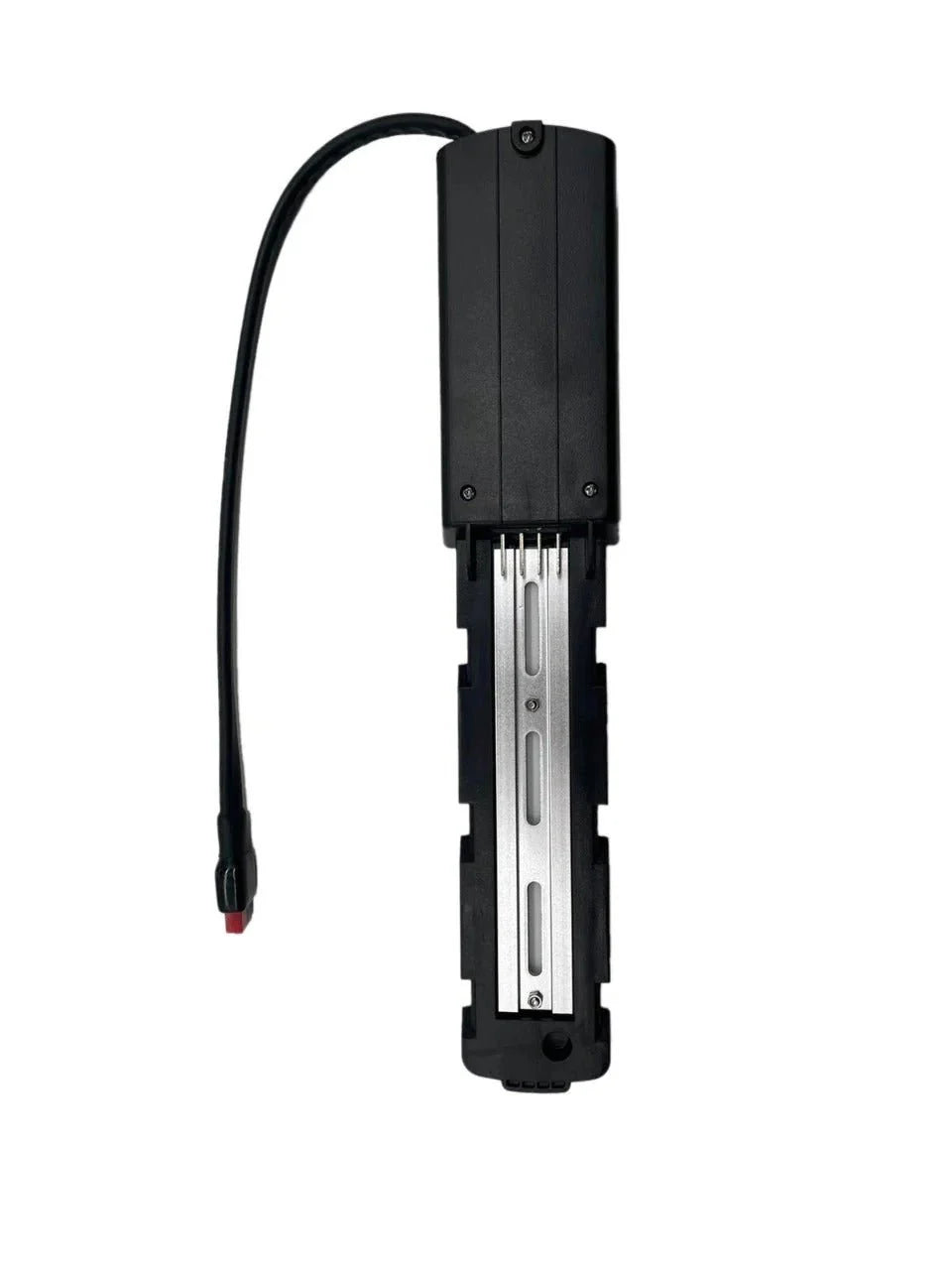

• Battery base bracket including which has 4 mounting slots
• Weight 3.85 KG Excluding Charger
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
