48V eBike Battery 17.5Ah | Rear Rack | Samsung Cells

48 Volts

17.5 Ah

840 Wh

Samsung 35E Cells

Direct replacement for:

Dirodi Rover Gen 1-4

XLR 3 Pin Charging Port

Optional 2A or 3A Battery Charger

Rear Rack Battery

Removable Branding

Your battery includes everything you need to replace your current, or install a new rear rack battery. These are normally fitted to the rear rack of the bike

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1800W

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

• 48V
• 17.5 Ah
• 840 Wh
• 13S4P
• 340mm L 133mm W 82mm H
• Weight 4.7 KG Excluding Charger

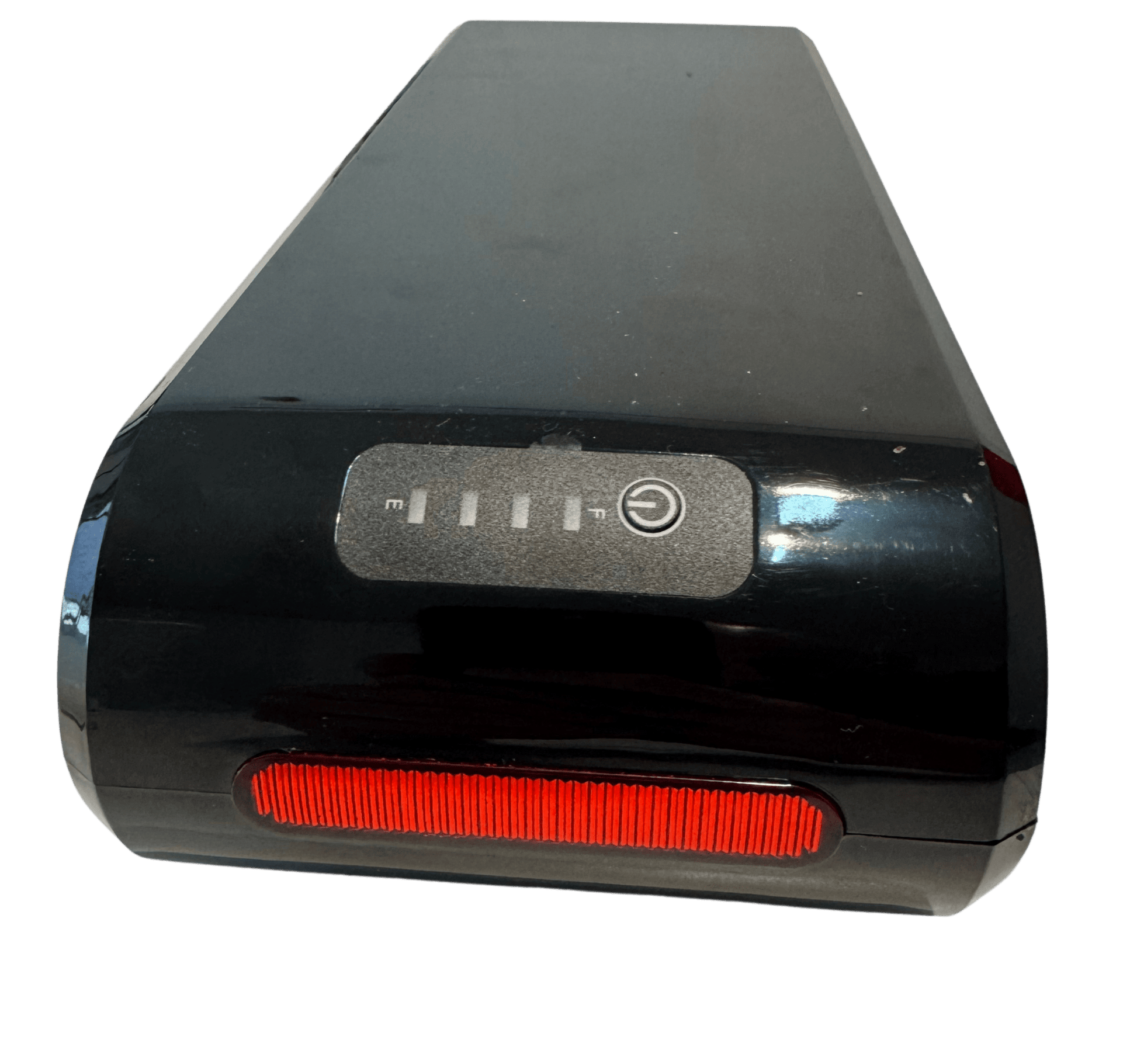

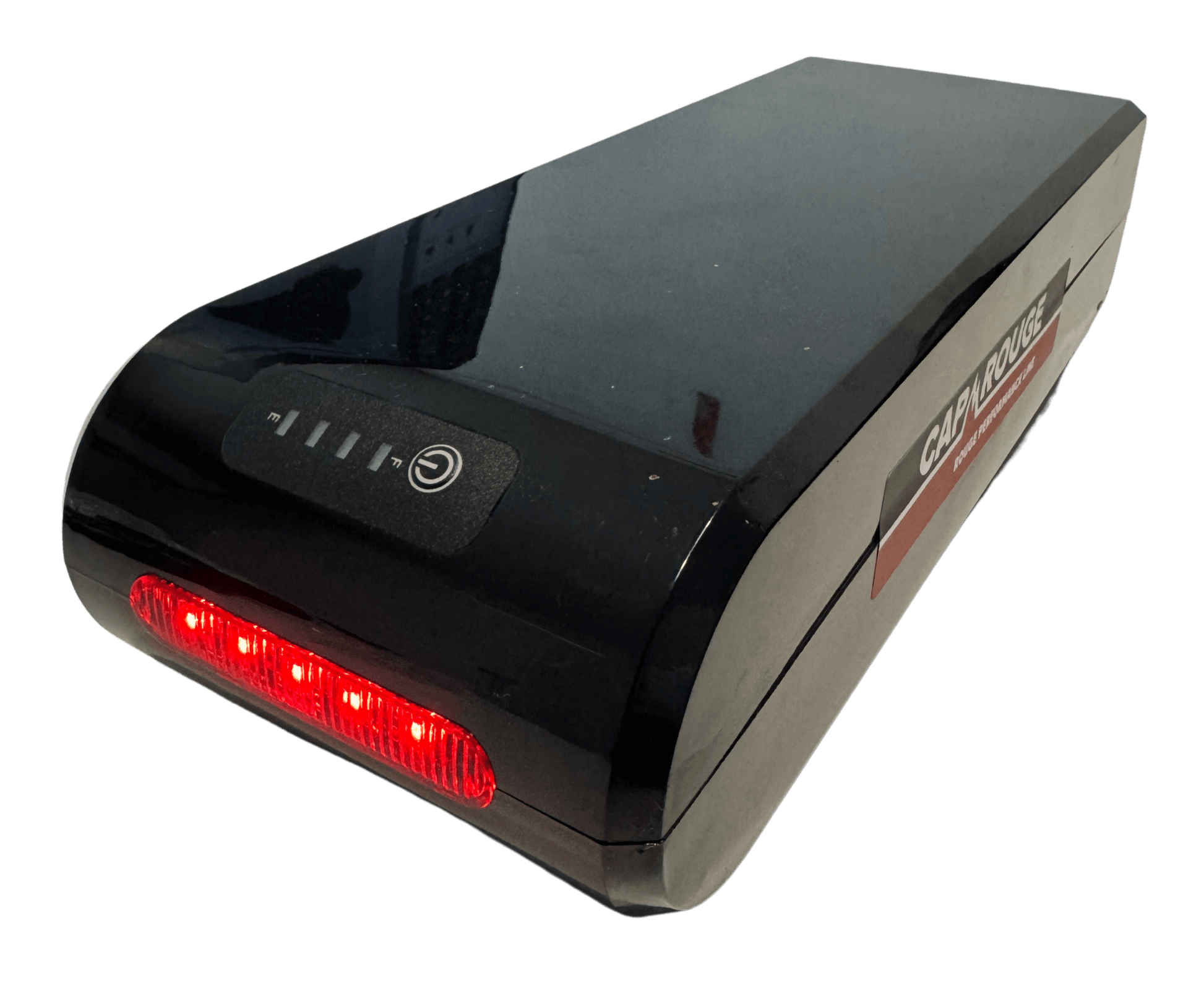

• Built in tail light connected to battery

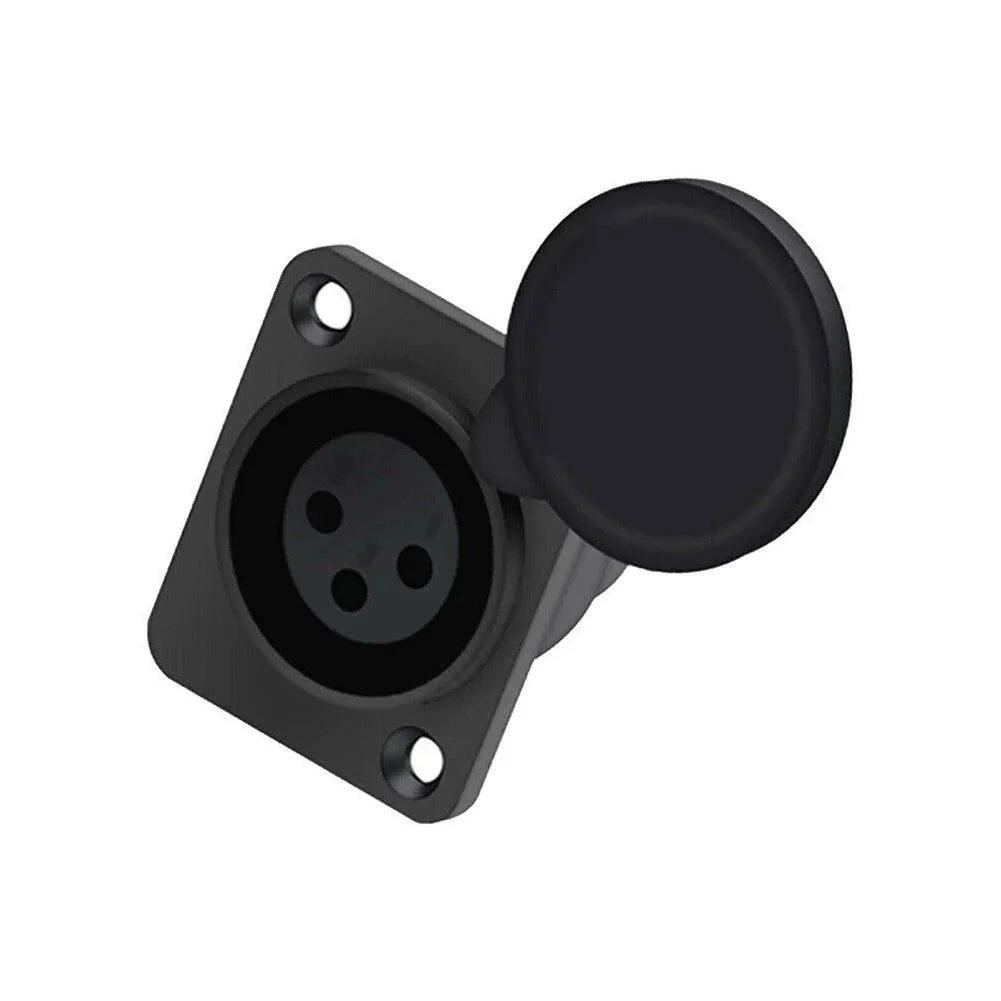

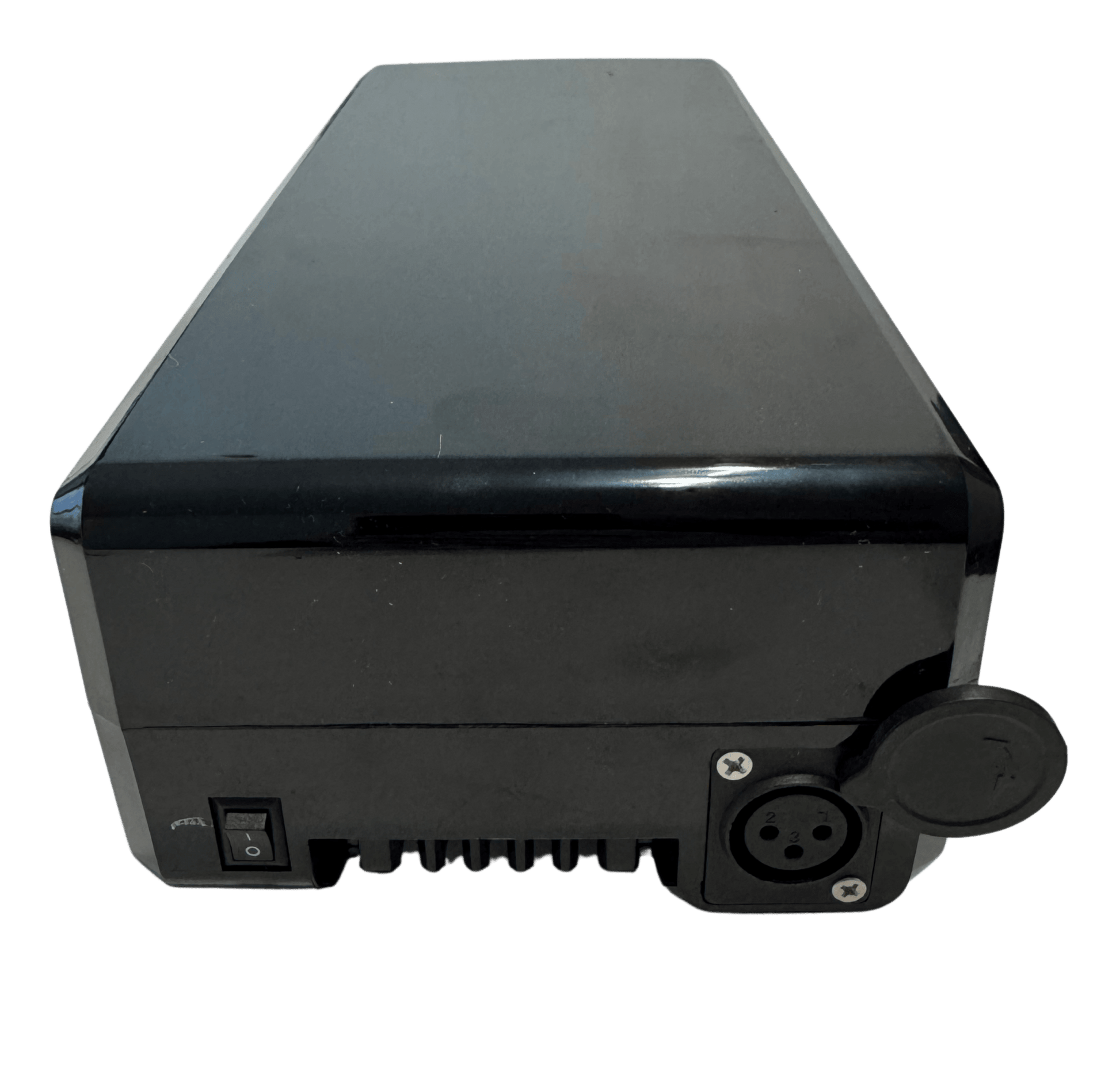

• XLR 3 pin charging port

• 2A or 3A Battery charger options
• 5A maximum charge input
• Samsung 50G 21700 cells, tested to EN62133-2-22017
• Discharge cable with micro Anderson connector
• Continuous discharge 40A

• Battery Management System (BMS) Managing

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
