48V eBike Battery 17.5Ah | Dorado 458mm | Incl Charger

48 Volt

17.5 Ah

840 Wh

Samsung Cells

Dorado-Pro

DC 2.1 / 5.5MM Charging Port

2A or 3A Battery Charging Options

Removable Branding

Independently tested and compliant to IEC 62133:2:2017

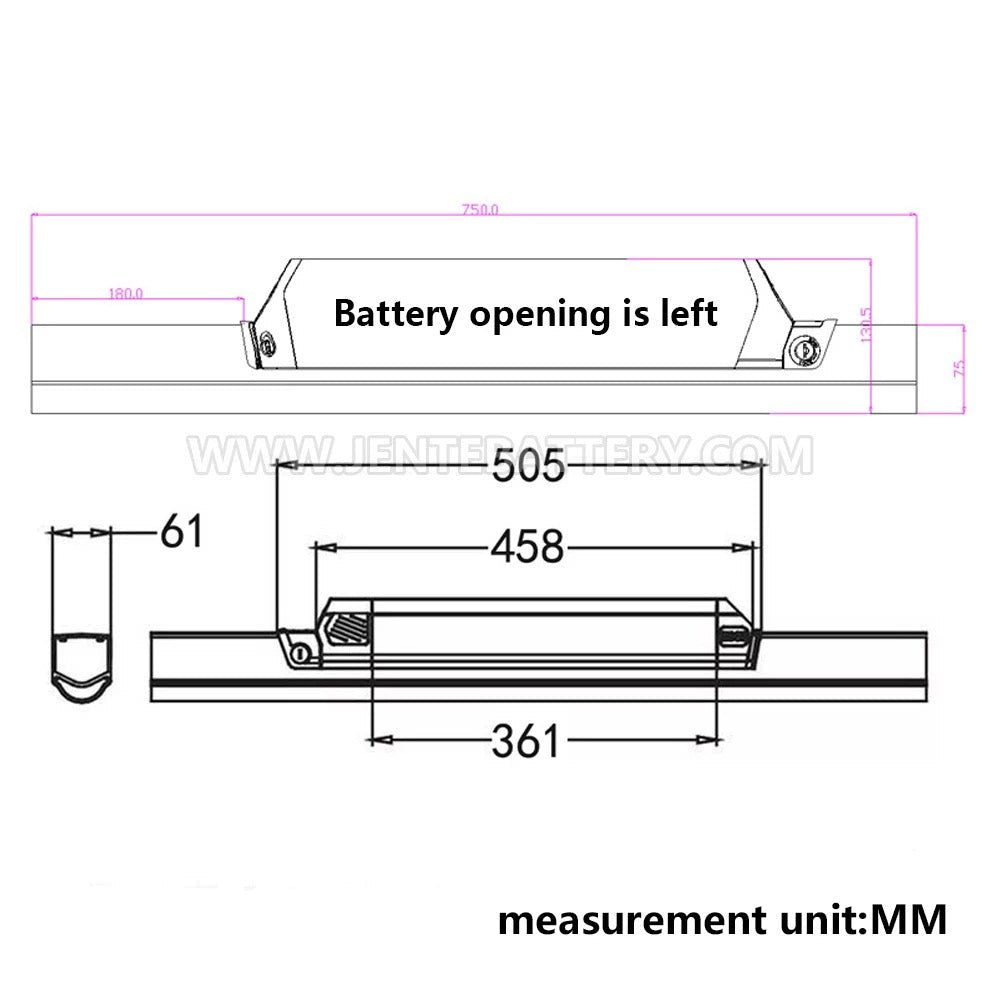

L 458mm  x  W 61mm x  H109mm

Fits A Wide Variety of Chinese Style Bikes

Also Fits:

NCM Moscow and Moscow Plus, Aspen, Aspen Plus, Venice, Venice Plus, Milano, Milano Plus

Earth T-Rex 650 (2016-2018)

Smart Motion Catalyst

Override Crewzer, Unisex Crewzer, Lowrider V2

Mamba Venom - Fits First Generation With Round Plug (Check connection of our battery before purchasing)

Eunorau eBikes - Various - (enquire first before purchasing)

E-MONO Troy 27.5″ electric mountain bike SE-27M001,  26″ Unisex electric Mountain Bike SE-26L01, 28″ Ares (700C) Electric Urban Bike SE-70M001, Terra Fat Tire bike SE-SE-20BM02, 27.5″ Dual Suspension electric Mountain Bike SE-27M04

Samson Cycles Electric Mountain Bike Spark

High quality, long life battery built using 18650 Samsung cells

This replaces the longer Dorado battery that is fit in a wide variety of bikes. This case is slightly wider, to accommodate extra cells, while still allowing it to fit in the standard Dorado bracket.

In frame battery, mounting brackets, keys and charger, fits a wide range of Chinese built bikes that have in frame batteries.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

• 48 Volts
• 17.5 Ah
• 840 Wh
• 13S5P
• 2A or 3A Battery Charger Options

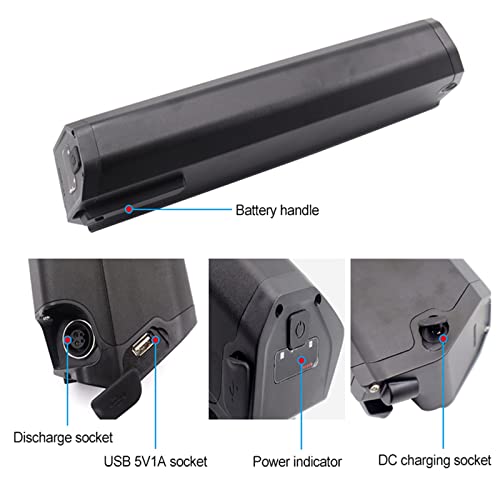

• DC 2.1 / 5.5MM Charging Port
• 3A maximum charge input
• Samsung 35E 3500Mah cells, tested to EN62133-2-22017
• Note: frame batteries vary in size and connection please check carefully your connection
• Dimensions L 458mm  x W 61mm  x H 109mm
• Continuous discharge 30A
• 4.05 KG excluding charger
• 2 Keys included
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
