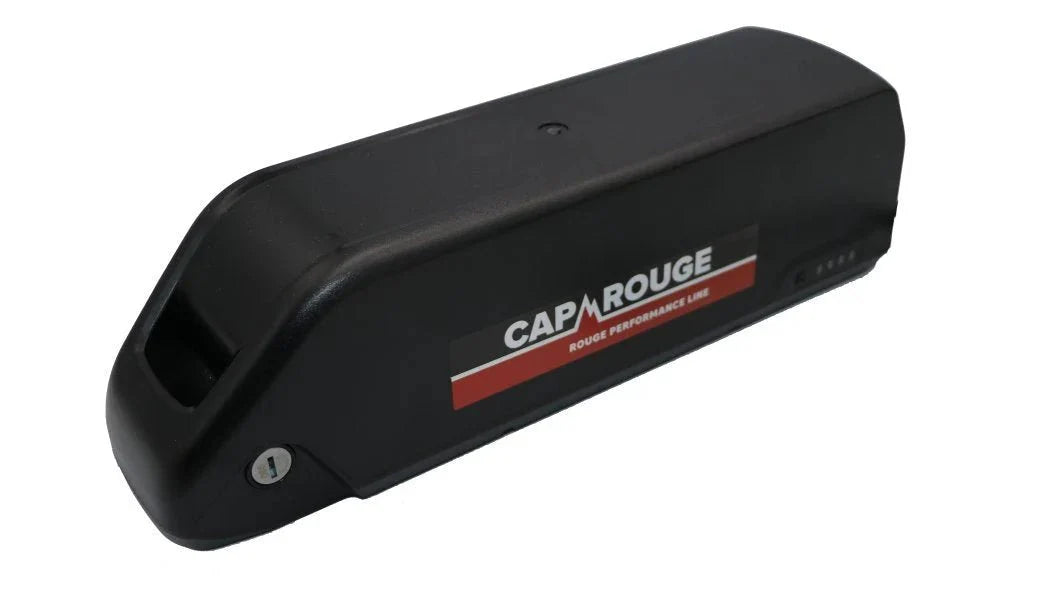

52V eBike Battery 16Ah | Downtube | Samsung Cells

52 Volts

16 Ah

832 Wh

Samsung 53G 21700 Cells

50A Continuous Discharge BMS - For Motors Up To 2500 Watts

ST3 3 Pin Charging Port (Free Single Pin Charger Adapter Available If Required - Select From Drop Down Menu)

2A, 3A, 4A or 1-5 Variable Battery Charger Options

Removable Branding

Reention DP-21700-4 Casing

Independently tested and compliant to IEC 62133:2:2017

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

Dimensions: L 367mm - W 95mm - H 98mm

This battery is built in a low profile case, for bikes with restricted access.

DP-21700-4 Polly case, with added fitment options.

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 2500W

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

• 52 Volts
• 16 Ah
• 832 Wh
• 14S3P
• Samsung 53G 21700 cells, compliant to 62133-2-2017
• Dimensions: L 367mm - W 95mm - H 98mm
• 4.3 kg excluding charger

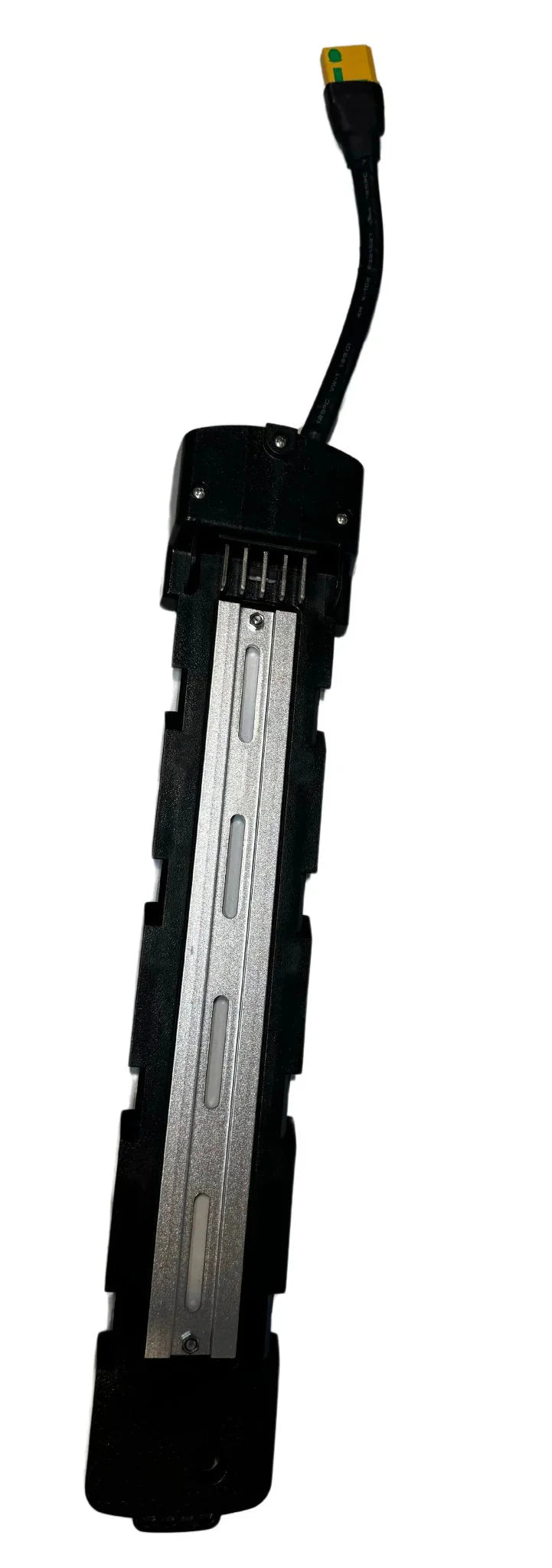

• Discharge cable fitted with XT90 Female connectors

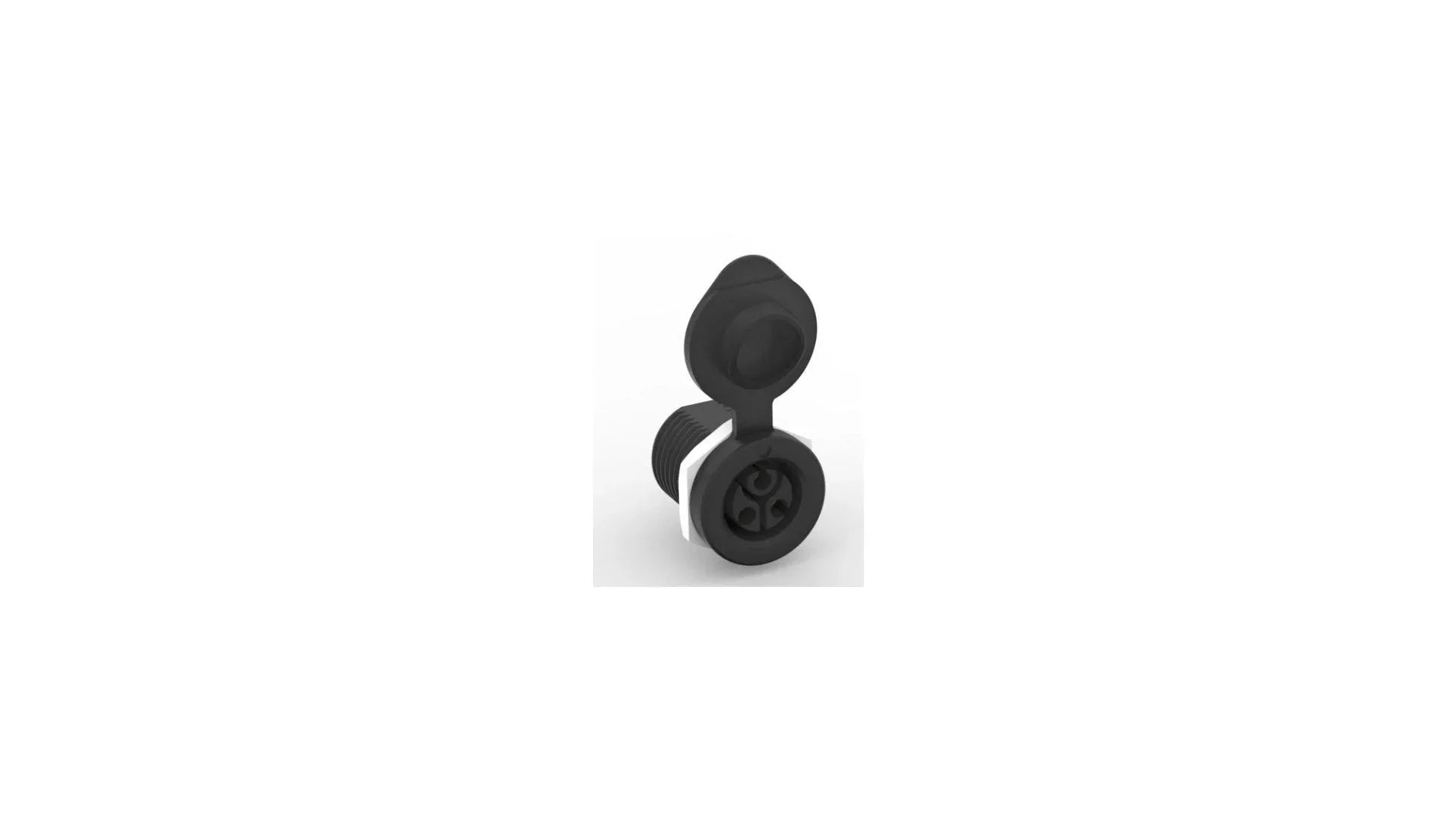

• ST3 3 pin charging port
• 1-5A, 2A, 3A or 4A Battery charger options
• 5A maximum charging input

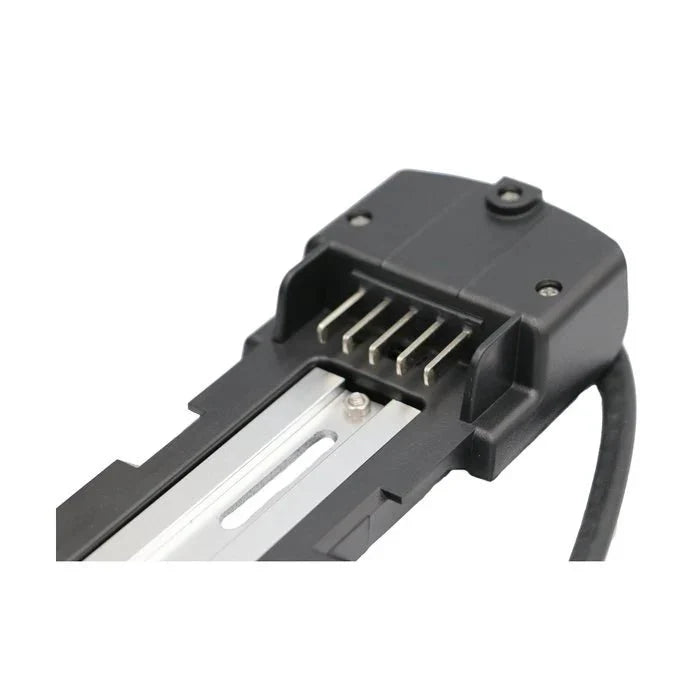

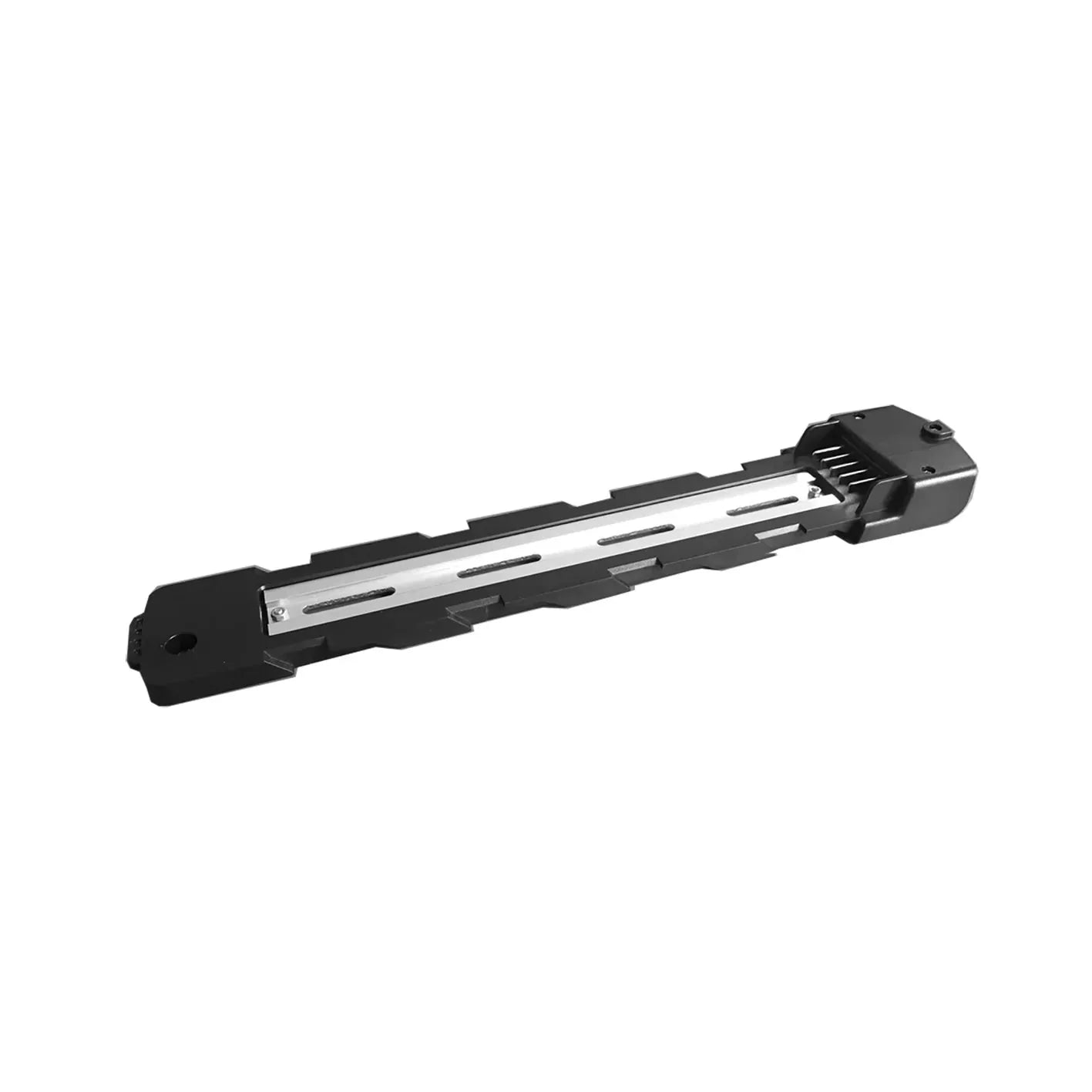

• Battery docking station included
• Battery power indicator
• 50A continuous discharge BMS for motors up to 2500w
• 2 key included
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
