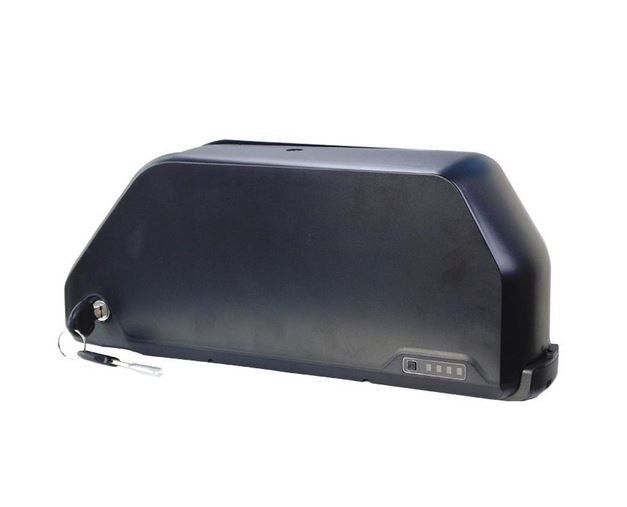

60V eBike Battery 20Ah | Downtube | Samsung Cells | Incl 5A Charger

Mega Battery 4800 Watts

60 Volt

20 Ah

1200 Wh

Includes Certified 5A Fast Charger

Samsung 50S High Discharge 5000Mah 21700 Cells

80A Continuous Discharge BMS - For Motors Up To 4800 Watts

XT90 Discharge Port Directly From The Battery

XT60 Charge Port

5A Battery Charger Included

Removable Branding

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

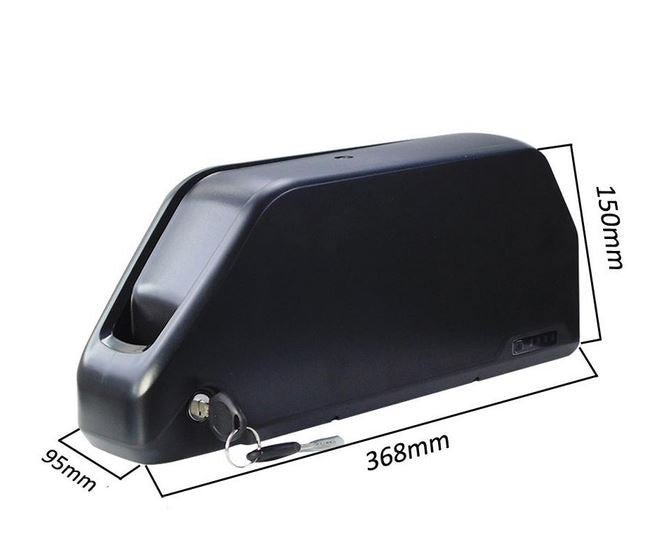

Dimensions: L 367mm - W 95mm - H 150mm

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 4800W

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

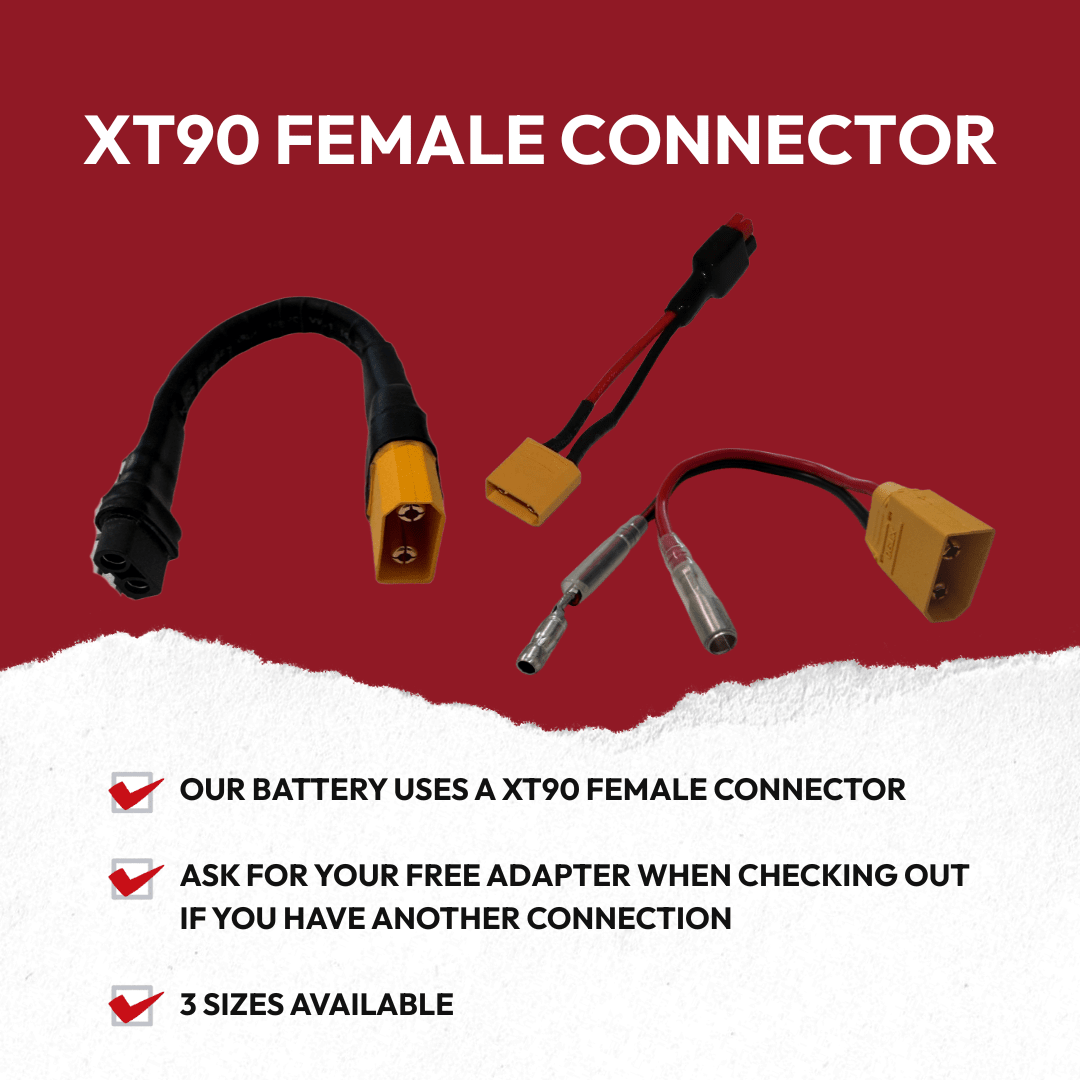

XT90 Spark proof connector instructions here

• 60 Volts
• 20 Ah
• 1200 Wh
• 16S4P
• Samsung 50S 21700 cells, tested to EN62133-2-22017
• Dimensions: L 367mm - W 95mm - H 125mm
• 5A battery charger option
• XT60 Charger port

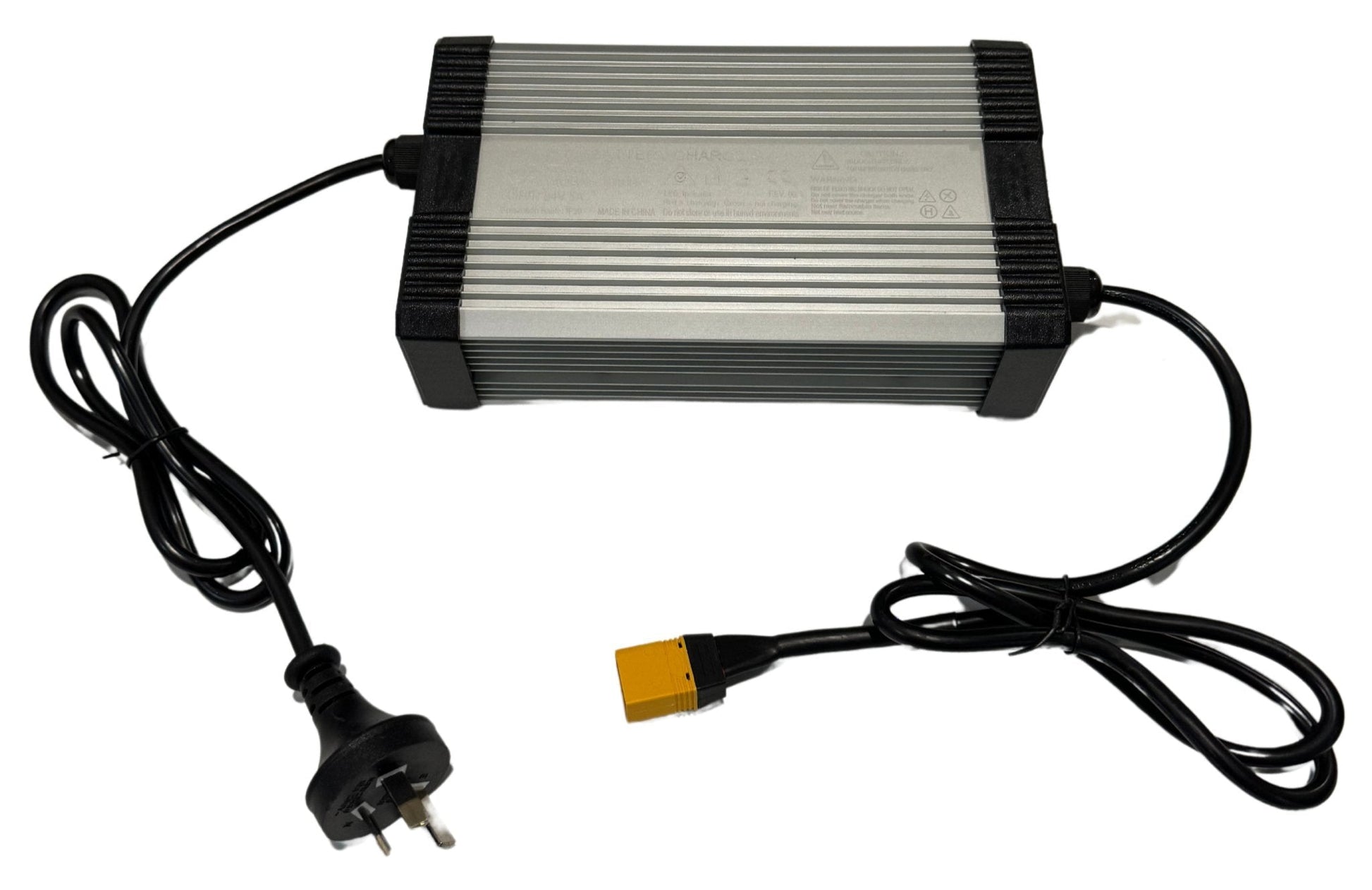

• 5A Fast Charger Included
• DP-21700-7 Reention case - Not interchangeable with other Reention DP casings
• 5.90 Kg Including bracket / excluding charger
• XT90 female discharge connector direct from battery
• 80A Continuous discharge, for motors up to 4800W

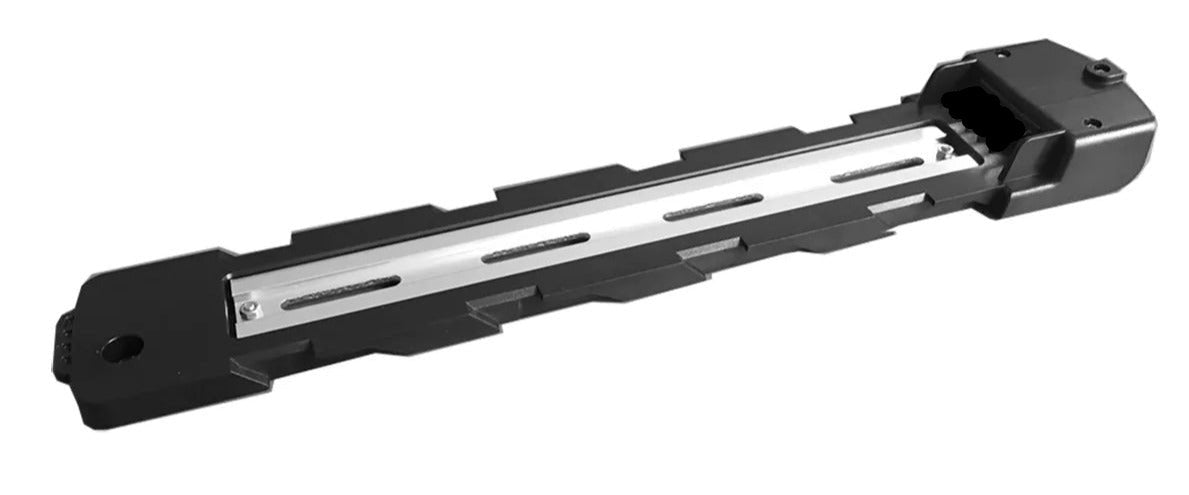

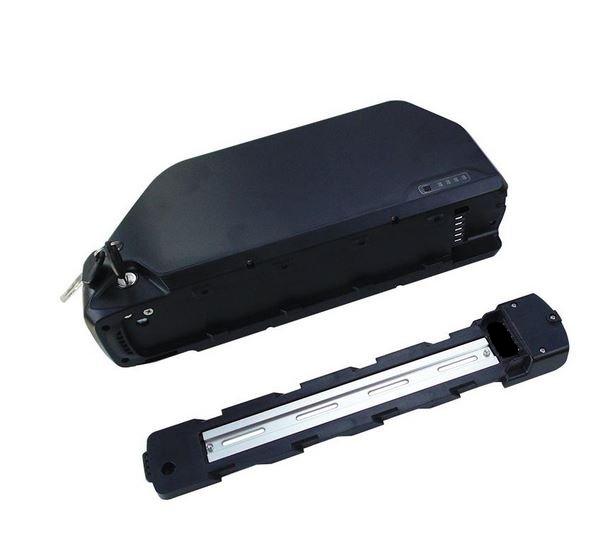

• Battery base bracket included
• Battery power indicator
• 2 Keys included
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
