Bafang BBS02B Mid Drive Kit | 36V 500W | Incl 36V 14Ah Battery

Bafang BBS02B Mid Drive Kit | 36V 500W | Incl 36V 14Ah Battery

BATTERY CAPACITY/RANGE OPTIONS
Regular price $1,749.00 AUD
Regular price $2,249.00 AUD Sale price $1,749.00 AUD
Sale Sold out
Taxes included.
Quantity

Most Popular - This Is Your Complete Plug and Play eBike Conversion Kit And Samsung Battery Package

Australian Stocked

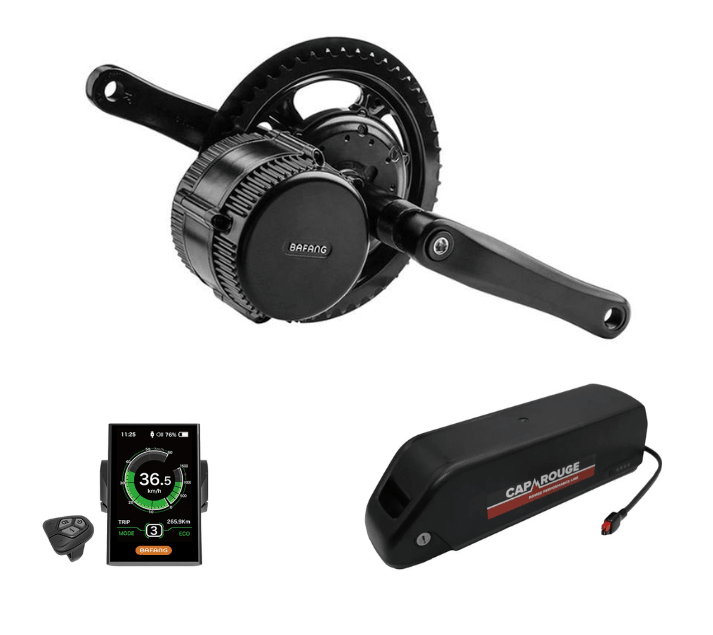

2026 Bafang 36V 500W  Mid Drive Conversion Kit And Samsung 14AH Battery

36V 500W, Pedal Assist and Throttle

Build in 4 Hours

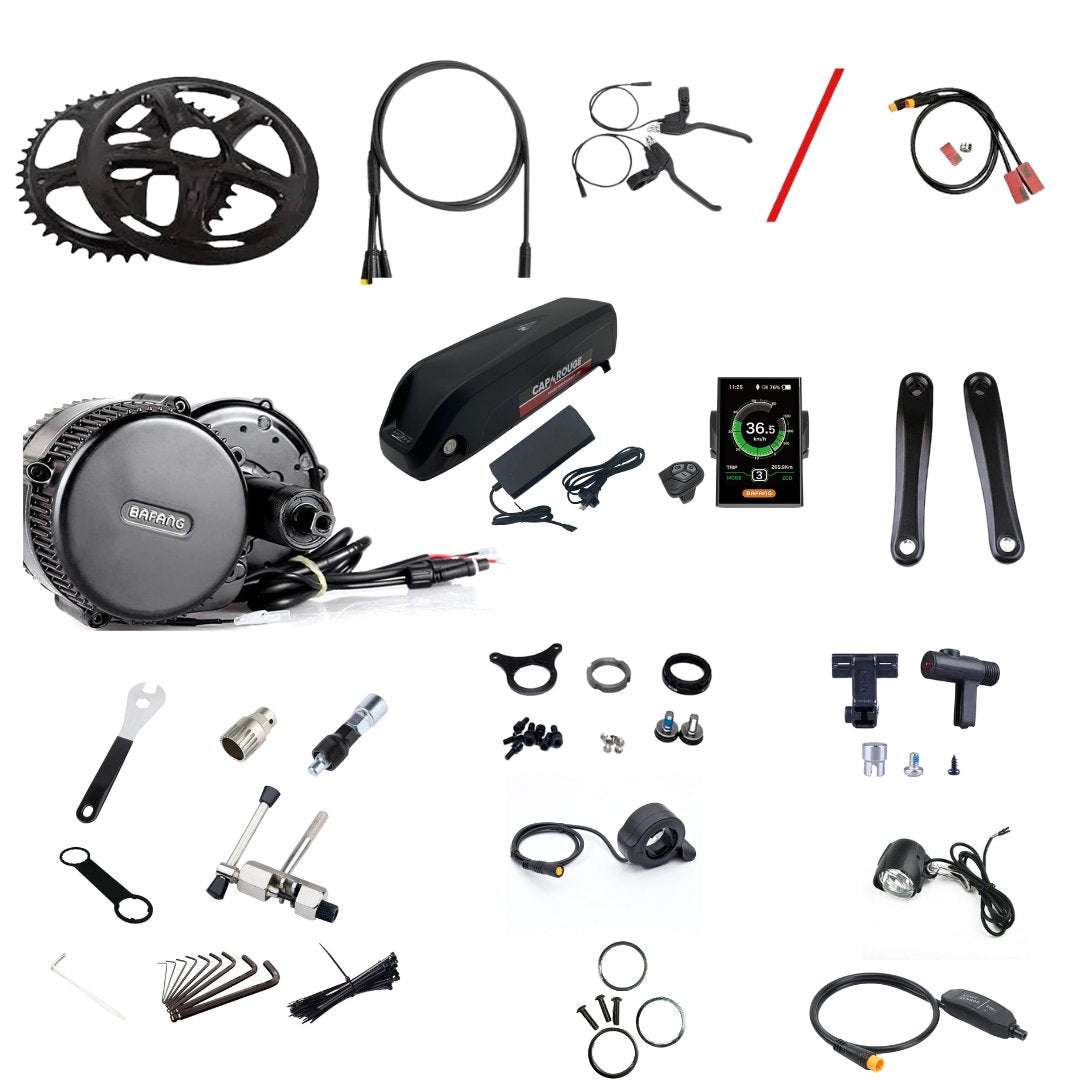

Whats in the box?

Bafang 36 Volt 500 Watt Mid Drive Motor

36 Volt Samsung Certified 14AH Battery

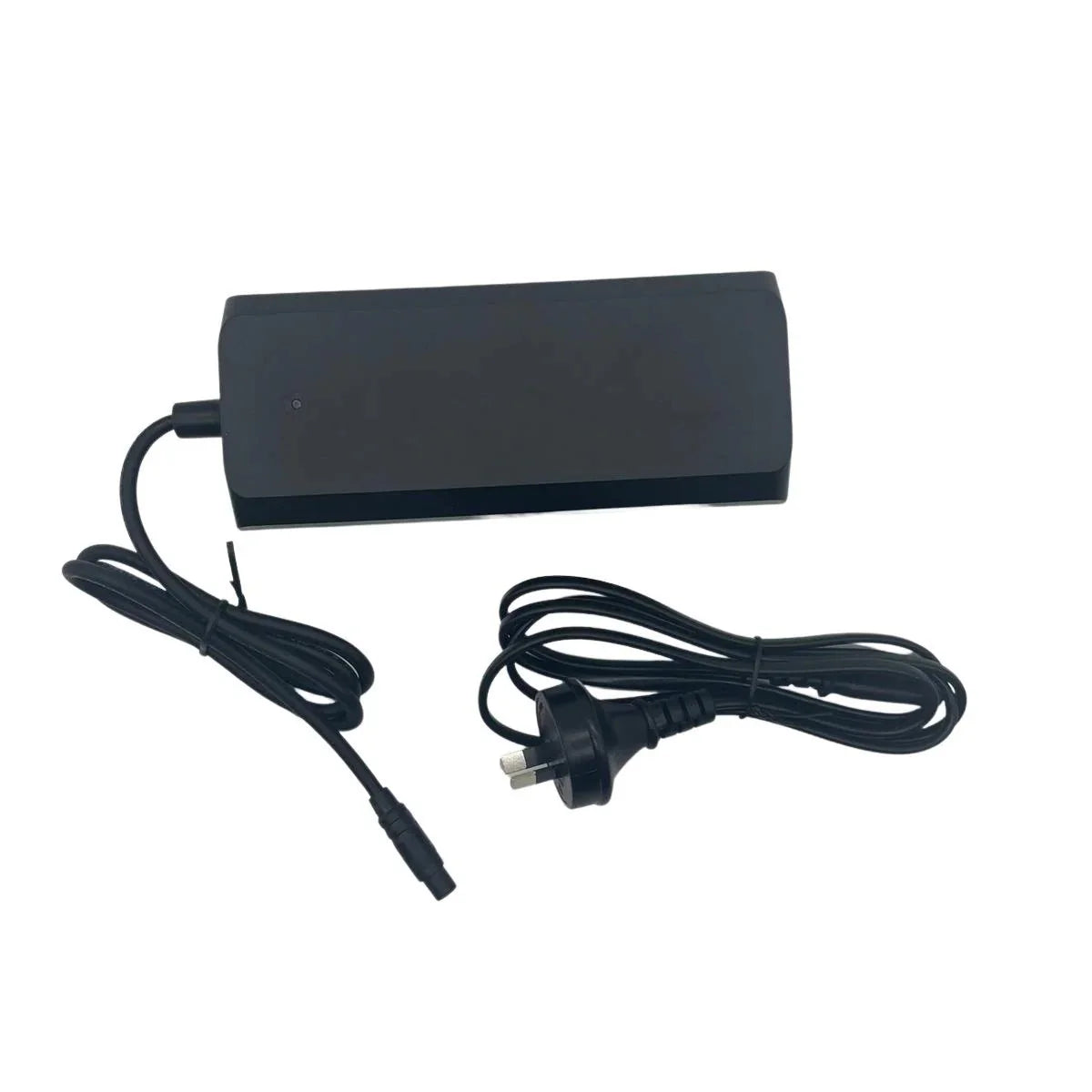

36 Volt 2A Smart Charger

Colour Display, Gear Sensor, Front Light,

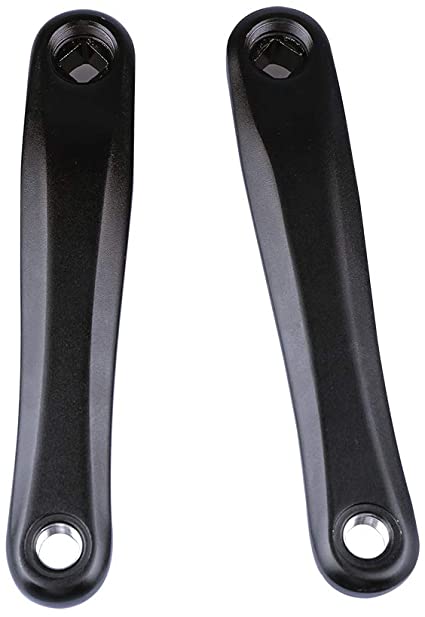

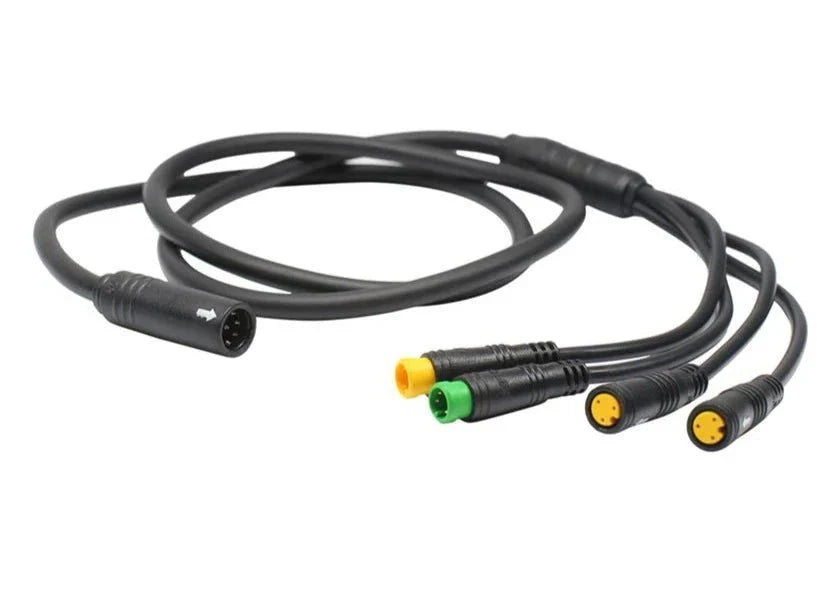

All Plug And Play Wiring, Throttle, Brake Sensors, Cranks

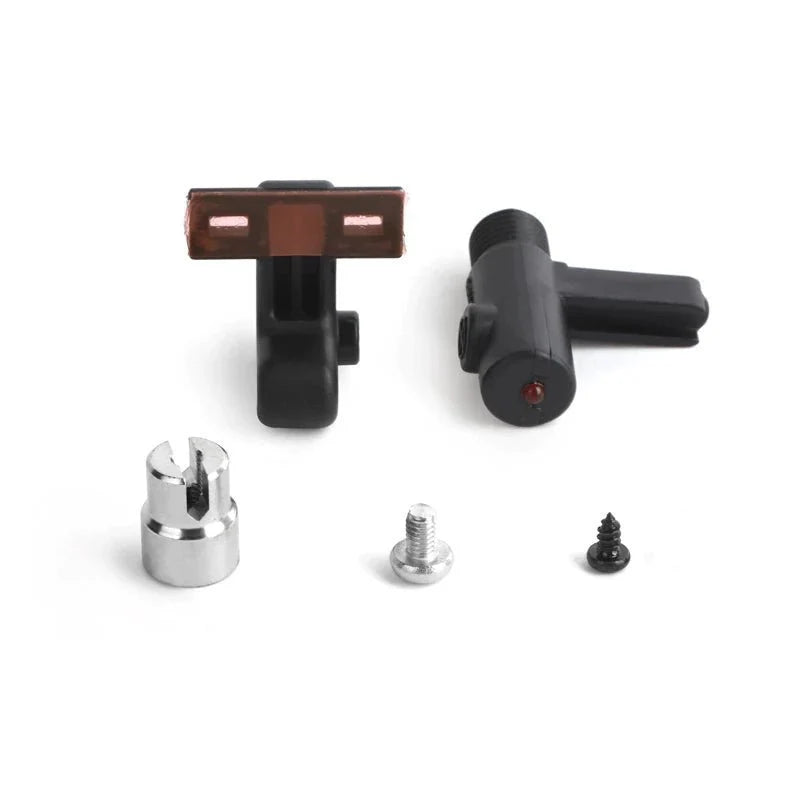

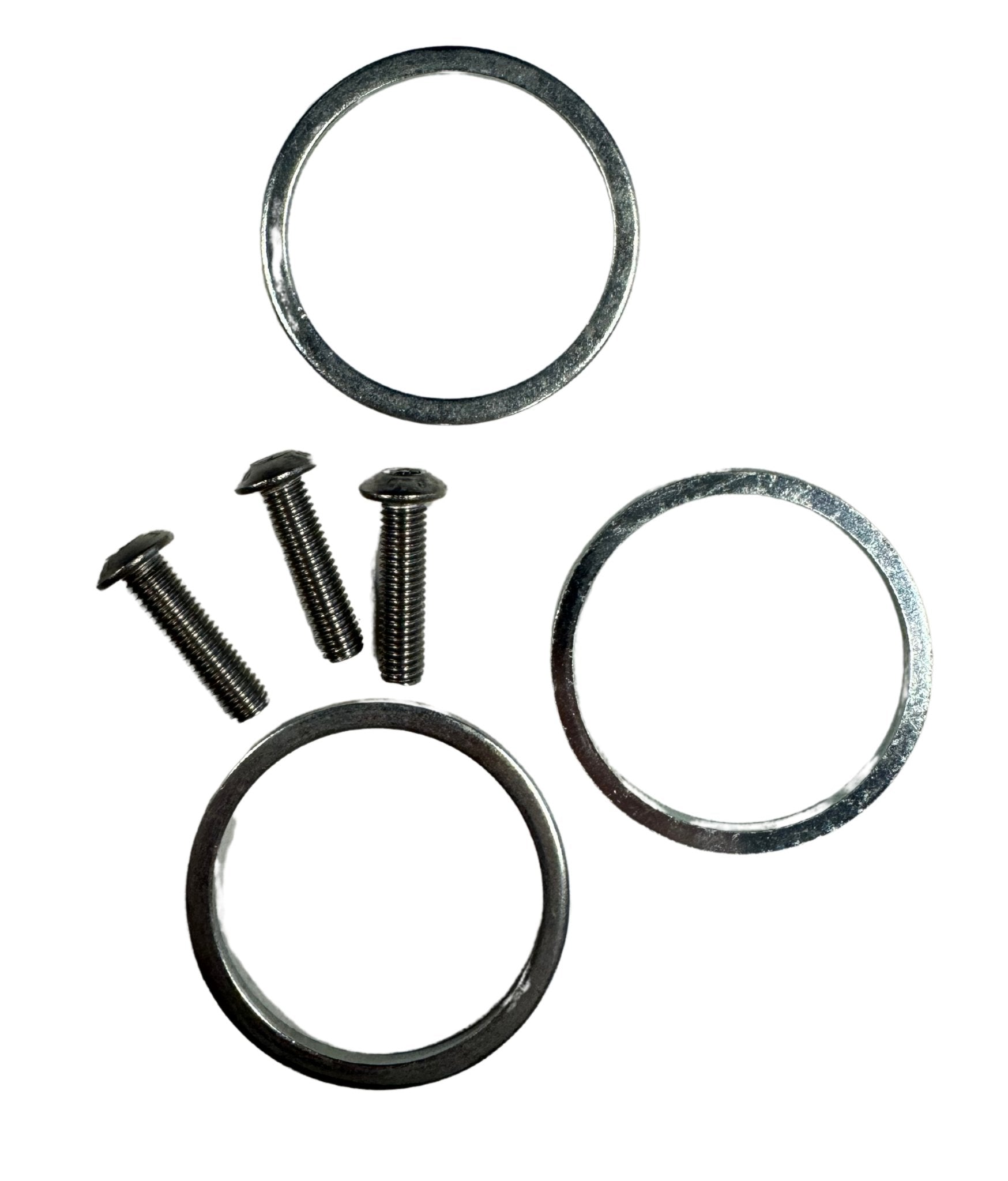

Speed Sensor, Chainring, Throttle Mounting Kit and Spacers

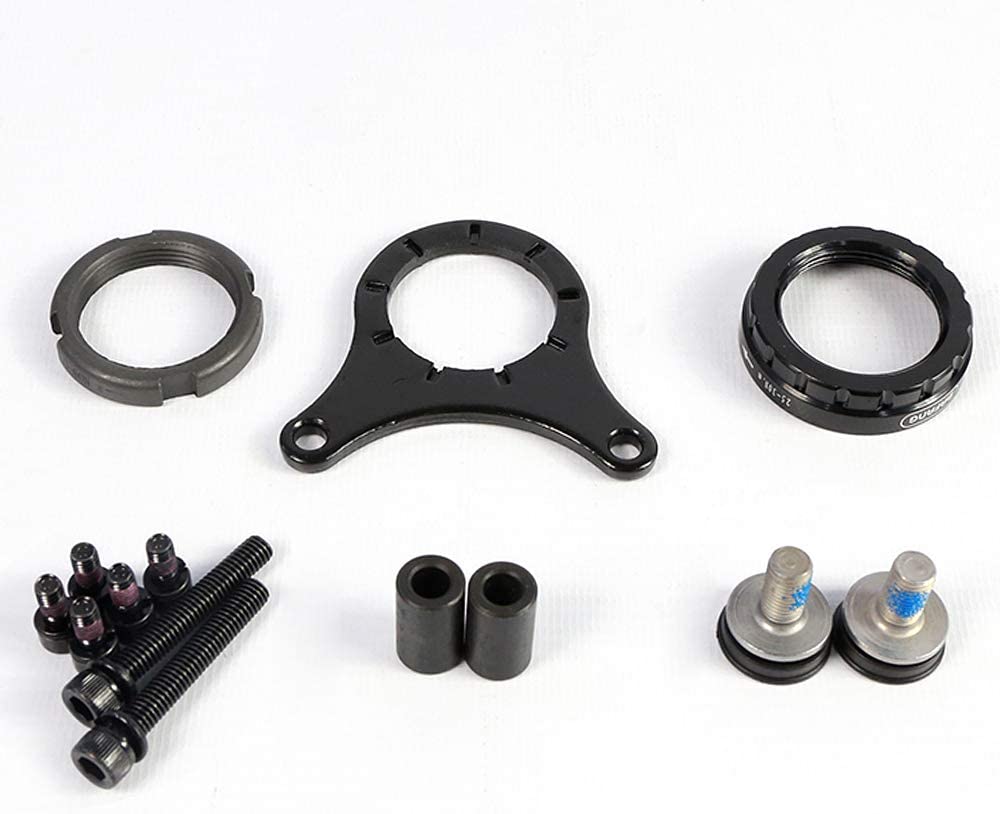

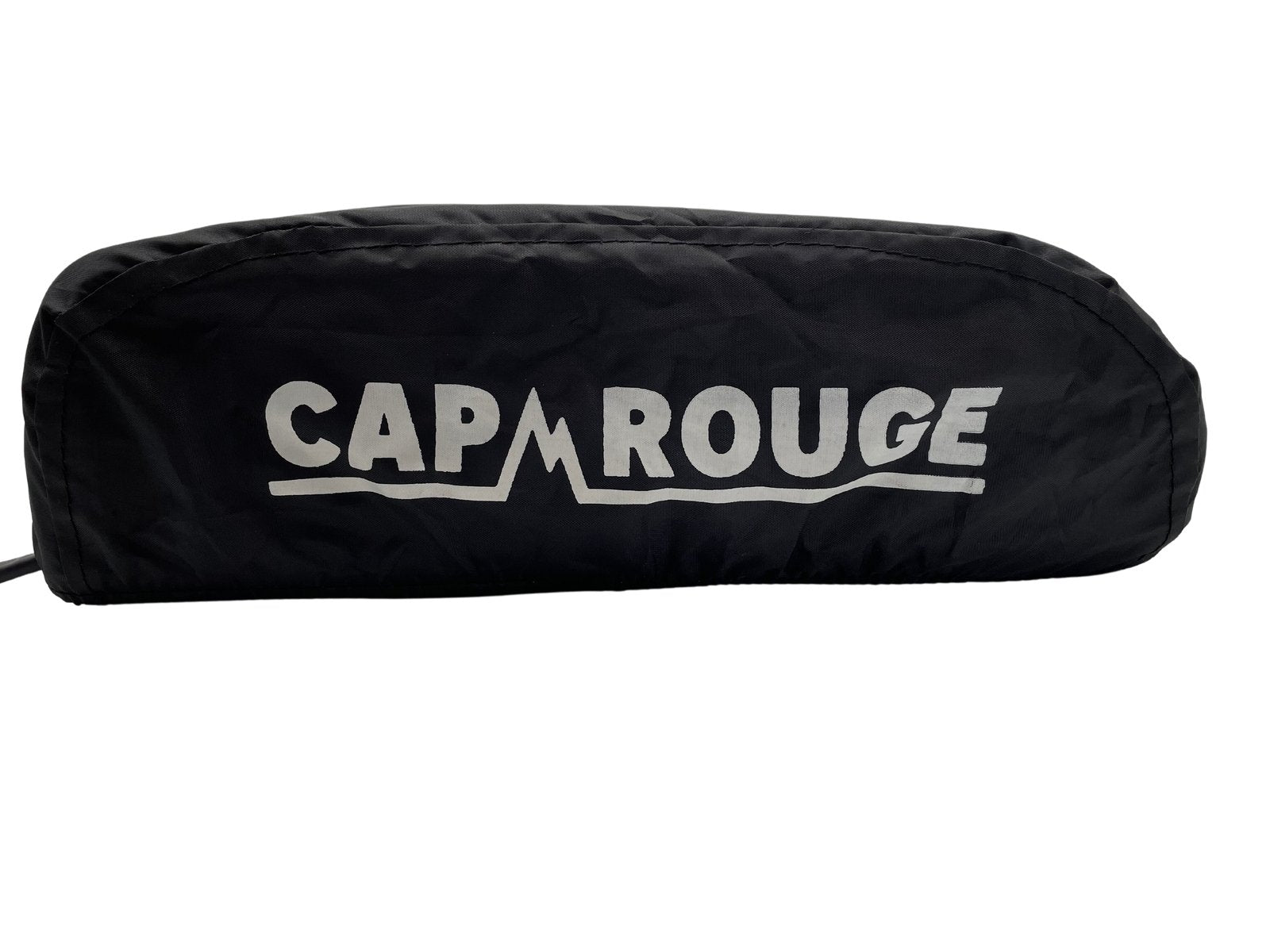

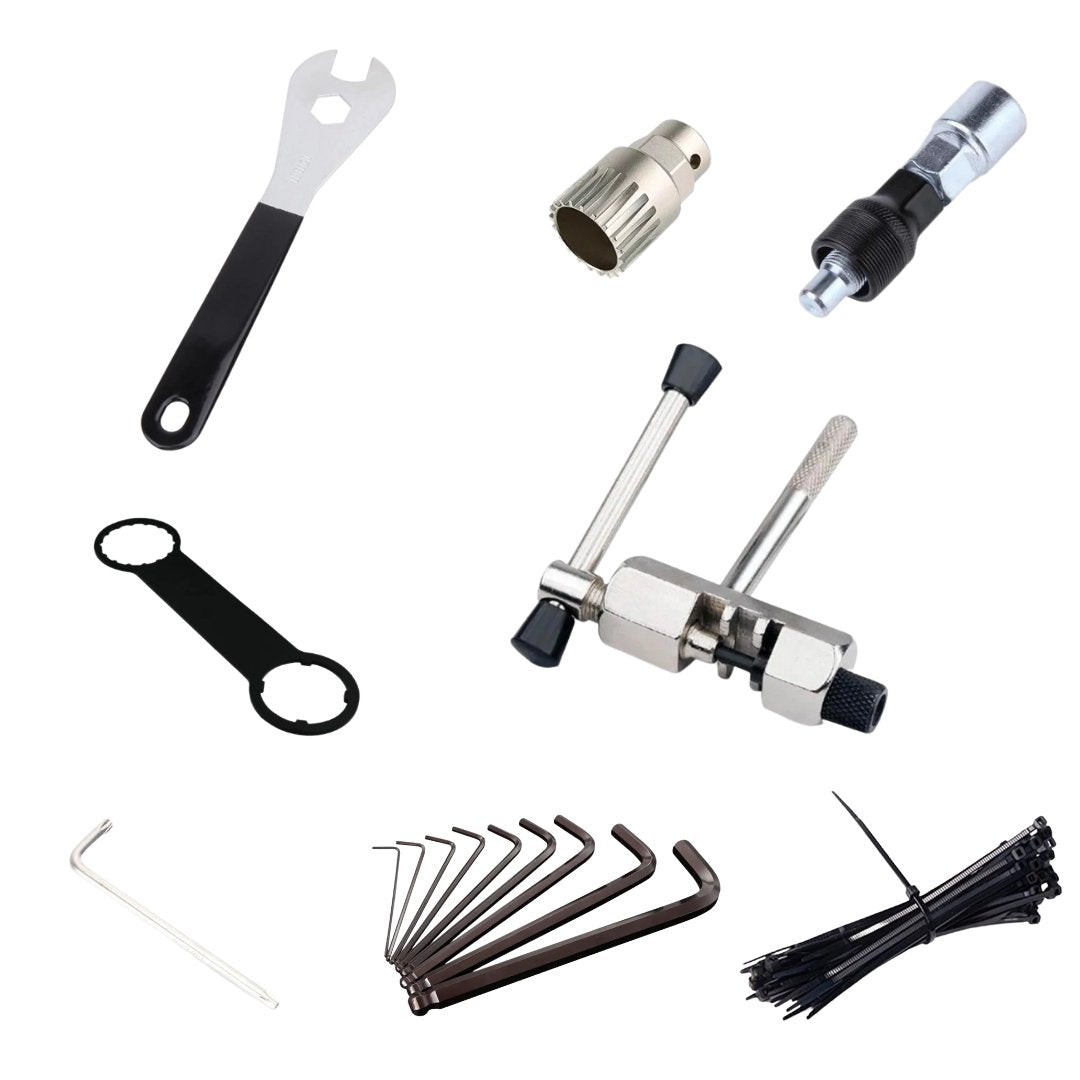

Waterproof Battery Cover, Accessories, Installation Tool Kit And Instructions



Bafang 36V 500W Mid Drive eBike Conversion

36V 500W Mid-Motor

120 Nm Torque

Pedal Assist, Throttle



Certified* Samsung 14AH Battery and 2A Charger  Up To 45-85 KM Of Range, Flat Ground, 20-25 Kmh Average

*Cap Rouge Supply The Most Powerful And Safest Certified Batteries in Australia And Worldwide

Battery Certification

Battery Safety Standard:

IEC 62133-2:2017 + A1

NSW Certificate Number:

OZC-250824-EA

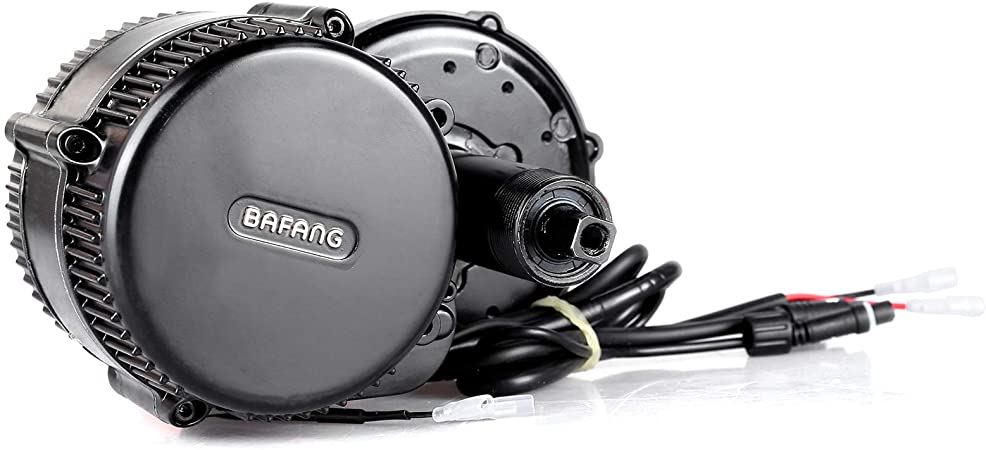

Bafang Mid Drive Motor Specifications:

Fits 68-73MM Bottom Bracket

  • 36v 500w BBS02B Conversion Kit

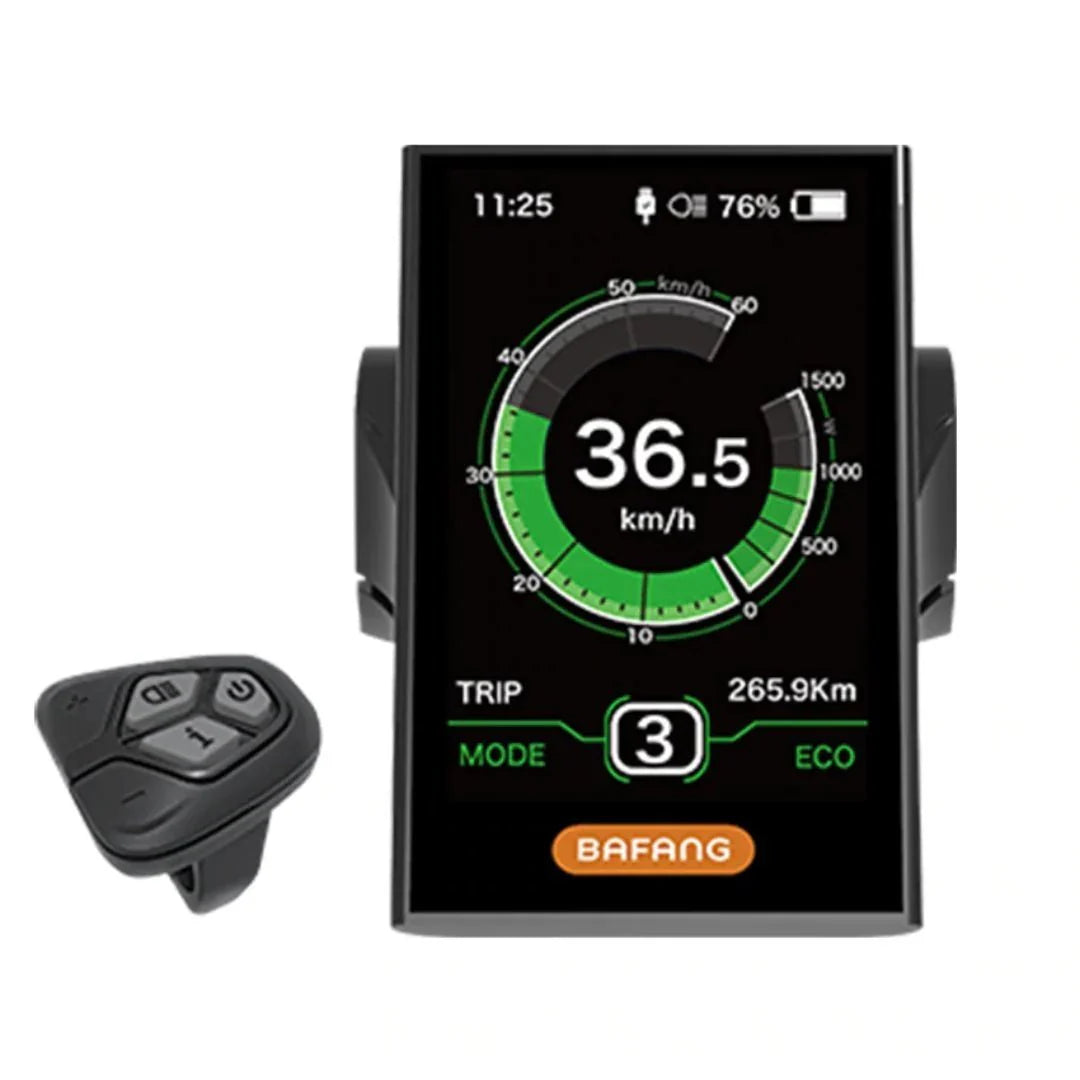

  • Choice of 9 Different Display's
  • 120 Nm of Torque

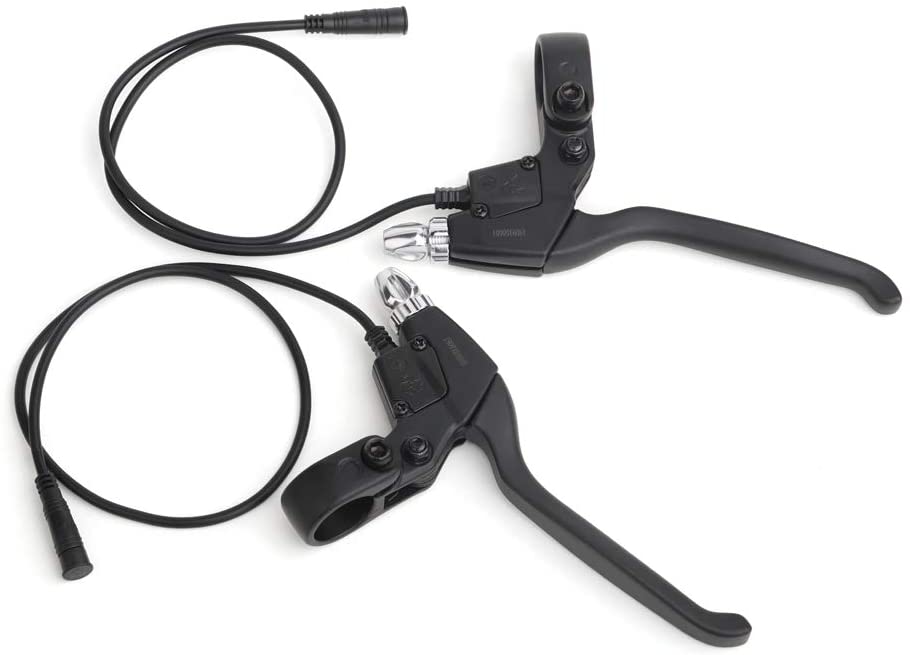

  • Cable Brake Sensors or Hydraulic Brake Sensors- In Line Brake Sensors Optional
  • Fits BB: 68mm-73mm

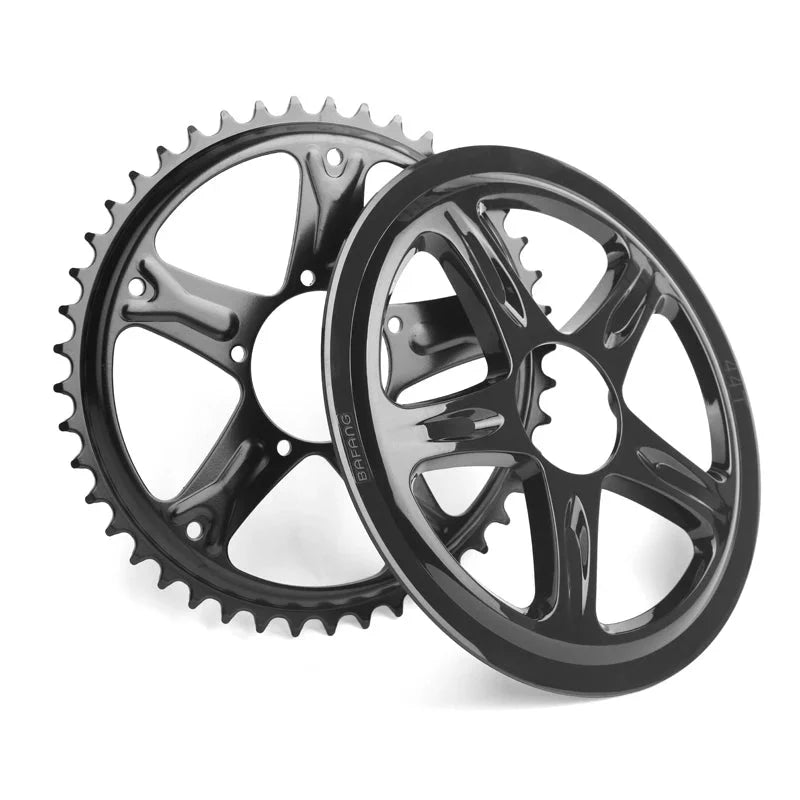

  • Crank  Teeth:  44T, 46T, 52T Chainring Options

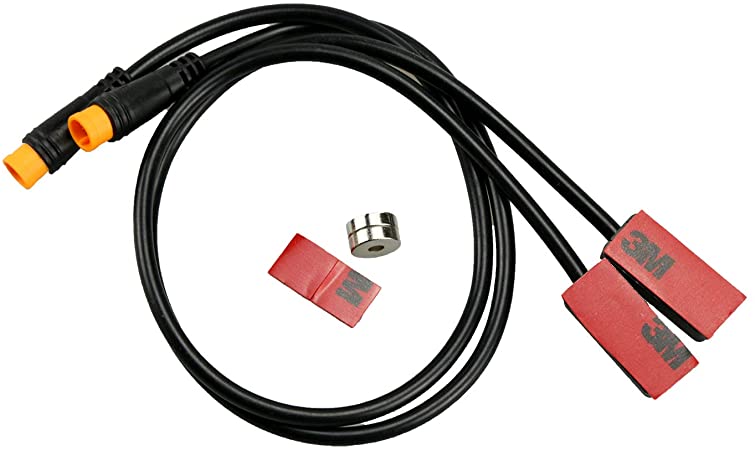

  • Speed Sensor
  • Throttle

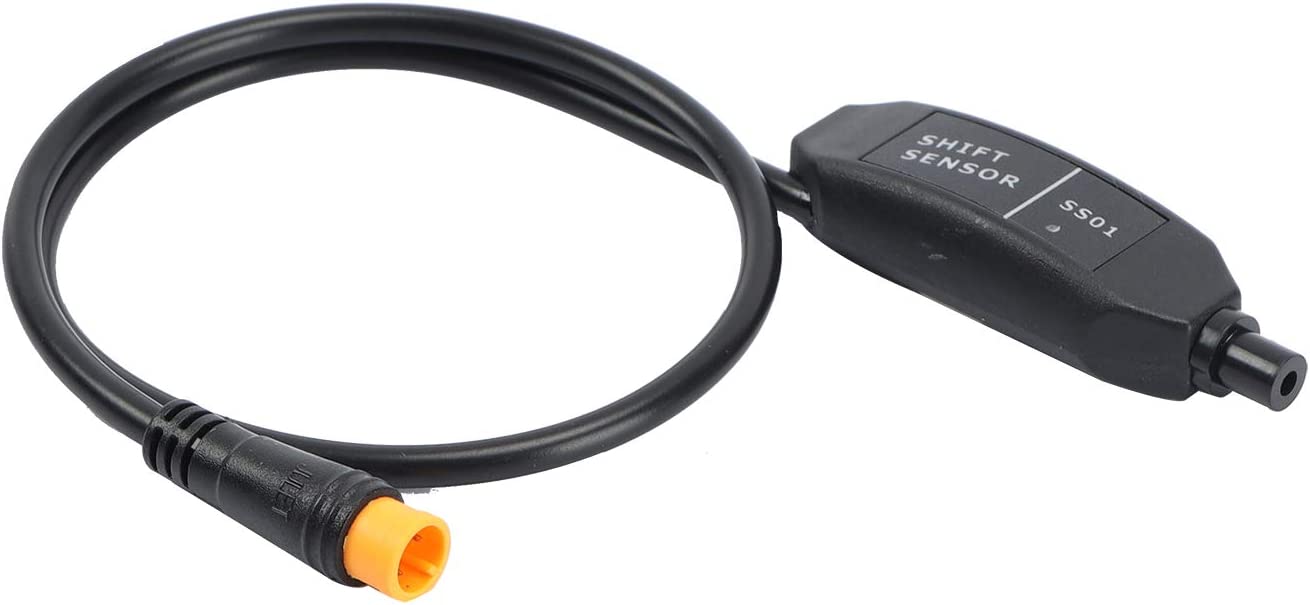

  • Gear/Shift Sensor Function Output - Please select YES to include gear/shift sensor

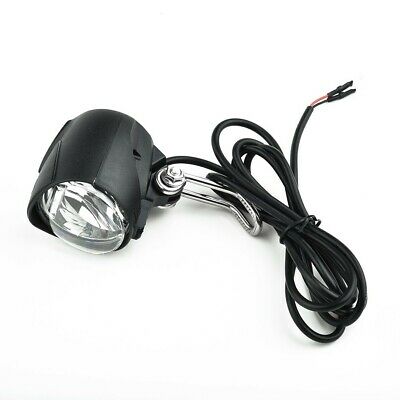

  • 6V Led Light Function

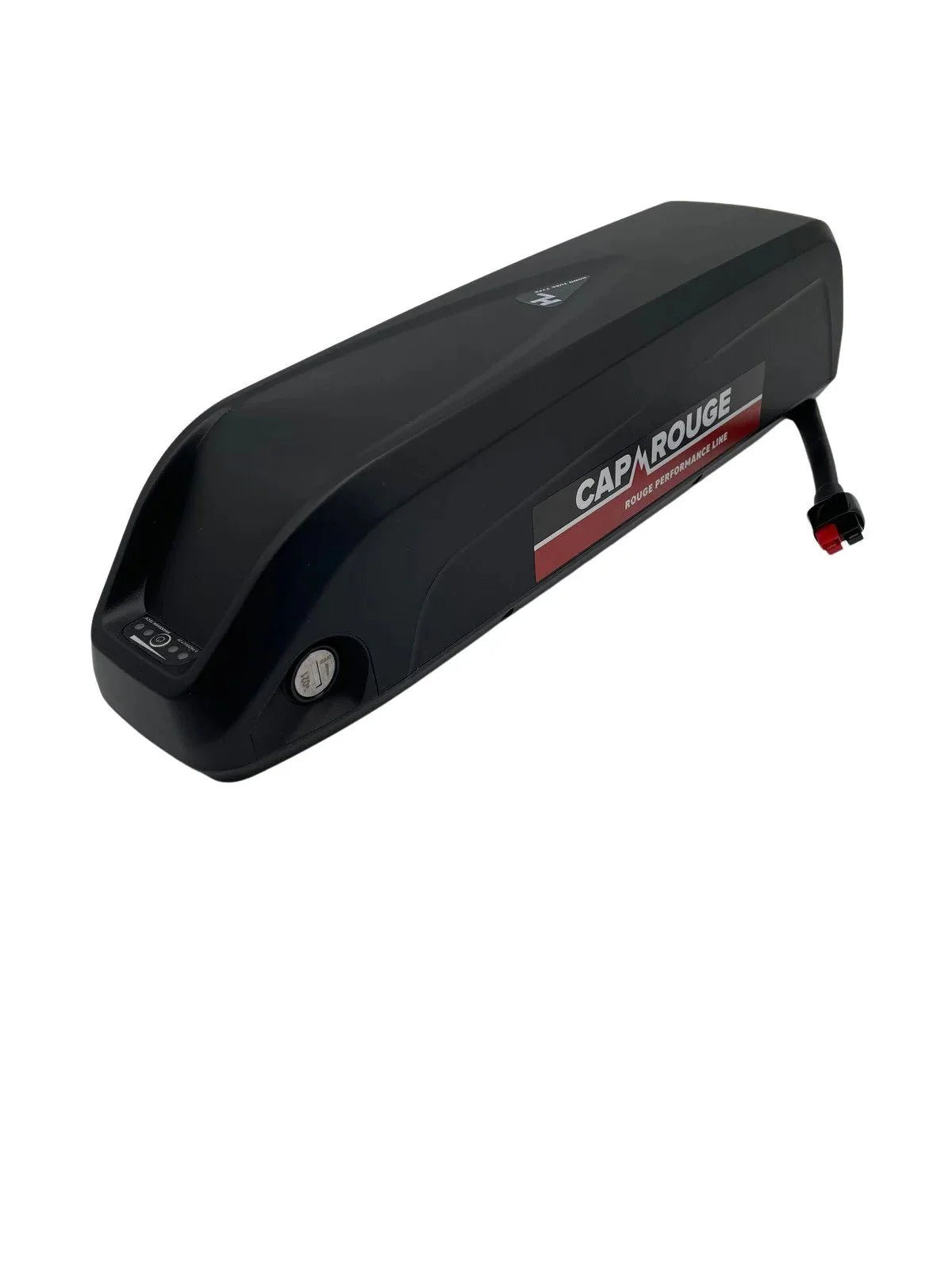

Battery Specifications:

36V 15Ah / 540Wh Downtube Samsung eBike Battery CPPOLF36-15

36 Volts

15 AH

540 Wh

40A Continuous Discharge BMS - For Motors Up To 1300 Watts

ST3 3 Pin Charging Port (Free Single Pin Charger Adapter Available If Required - Select From Drop Down Menu)

2A, 3A, 4A or 1-5 Variable Battery Charger Options

Removable Branding

Reention DP-21700-4 Casing

UN38.3 Certification and MSDS

Multipurpose battery, Compatible with Bafang, CYC Motor, Tongsheng, Hub Motors and More

Dimensions: L 367mm - W 95mm - H 98mm

Also Fits:  Earth Ant eBike 20 Inch X 4" Fat Folding, Earth Ant eBike 20 Inch X 4" Cargo Bike

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 1300W

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

  • 36 Volts
  • 15 Ah
  • 540 Wh
  • 10S3P
  • Dimensions: L 367mm - W 95mm - H 98mm
  • Samsung 50G 5000mah cells, tested to EN62133-2-22017
  • 3.15kg, excluding charger
  • 40A continuous discharge, for motors upto 1300W
  • Discharge cable fitted with micro Anderson connectors
  • 1-5A, 2A, 3A or 4A Battery charger options
  • ST3 3 pin charging port
  • 5A maximum charge input

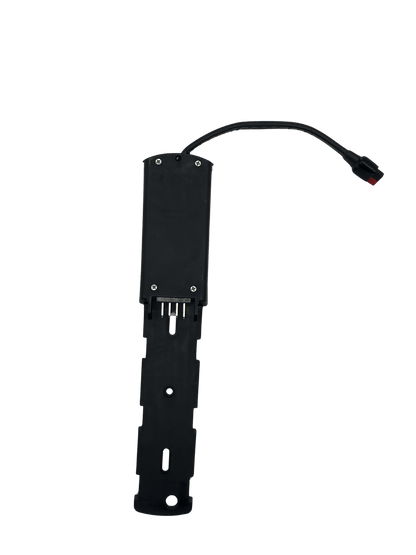

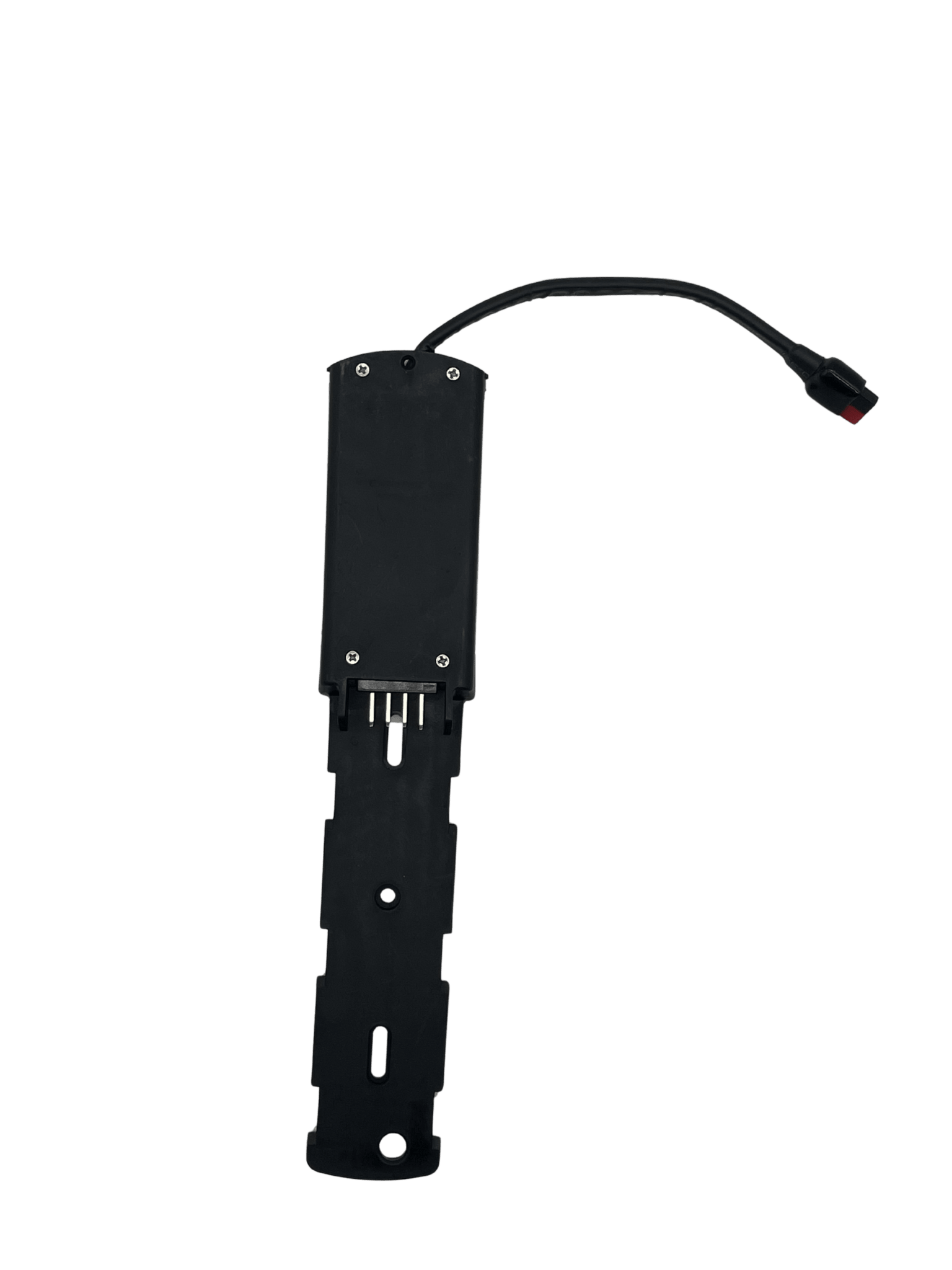

  • Battery base bracket including which has 4 mounting slots
  • Battery power indicator
  • 2 keys
  1. Charging voltage
  2. Balance voltage for single cell
  3. Current consumption
  4. Maximal continuous charging current
  5. Maximal continuous Discharging current
  6. Over charge Protection
  7. Over discharge protection
  8. Over current protection
  9. Short protection
  10. Resistance Protection

SKU:BBS02B36V500W+CPPOLF36-15+CPST36-2A-1
