Bafang BBS01/02 And BBSHD Front And Rear Light Set With Turn Signals Horn

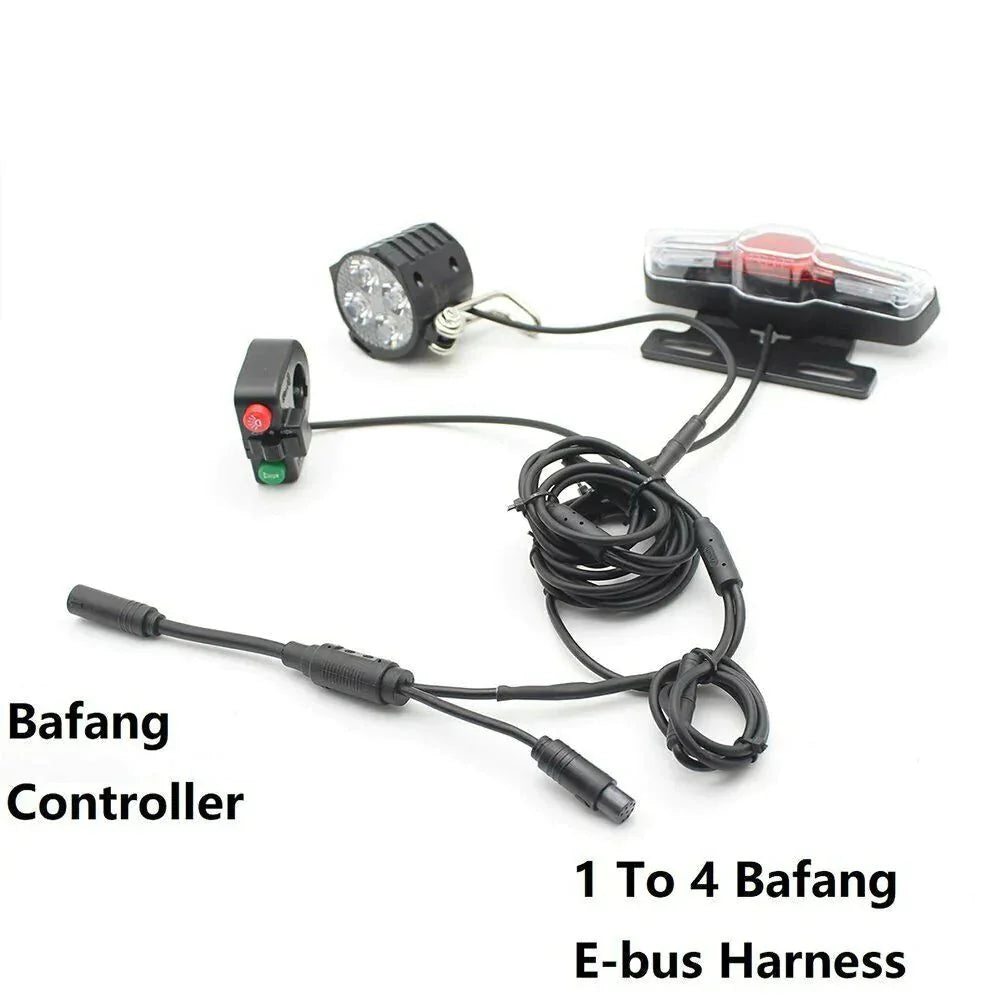

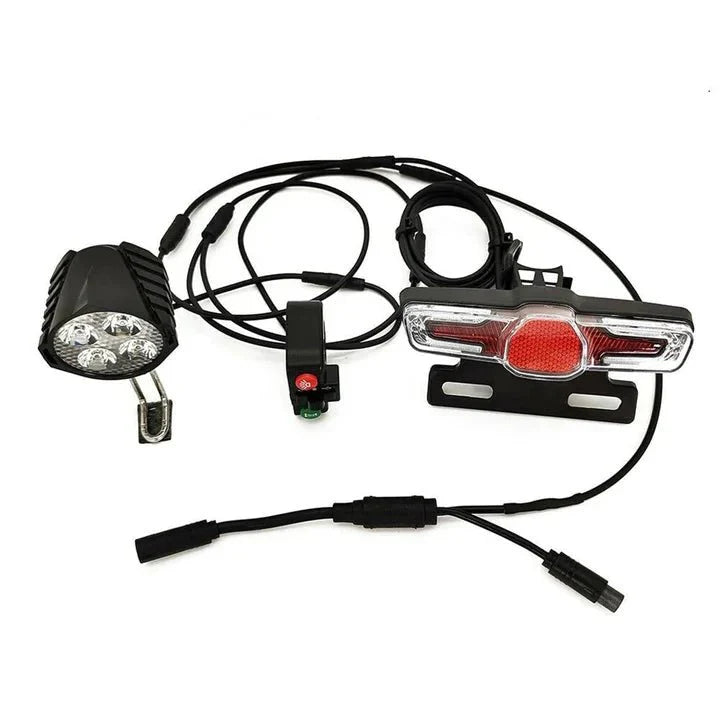

*24-60V E-bike Light Set LED Front Light Rear Light Brake Lamp With Horn For Bafang BBS01, BBS02, BBSHD
*Easy and fast to installation - Plug and Play
*Front and rear driving lights, brake lights and horn.
*Left and right turn signals
*Complete waterproof line
*This lamp group is controlled by an external switch and is not suitable for 6V instrument control switches.
*100% brand new and high quality
*Made of high quality material, durable and practical to use

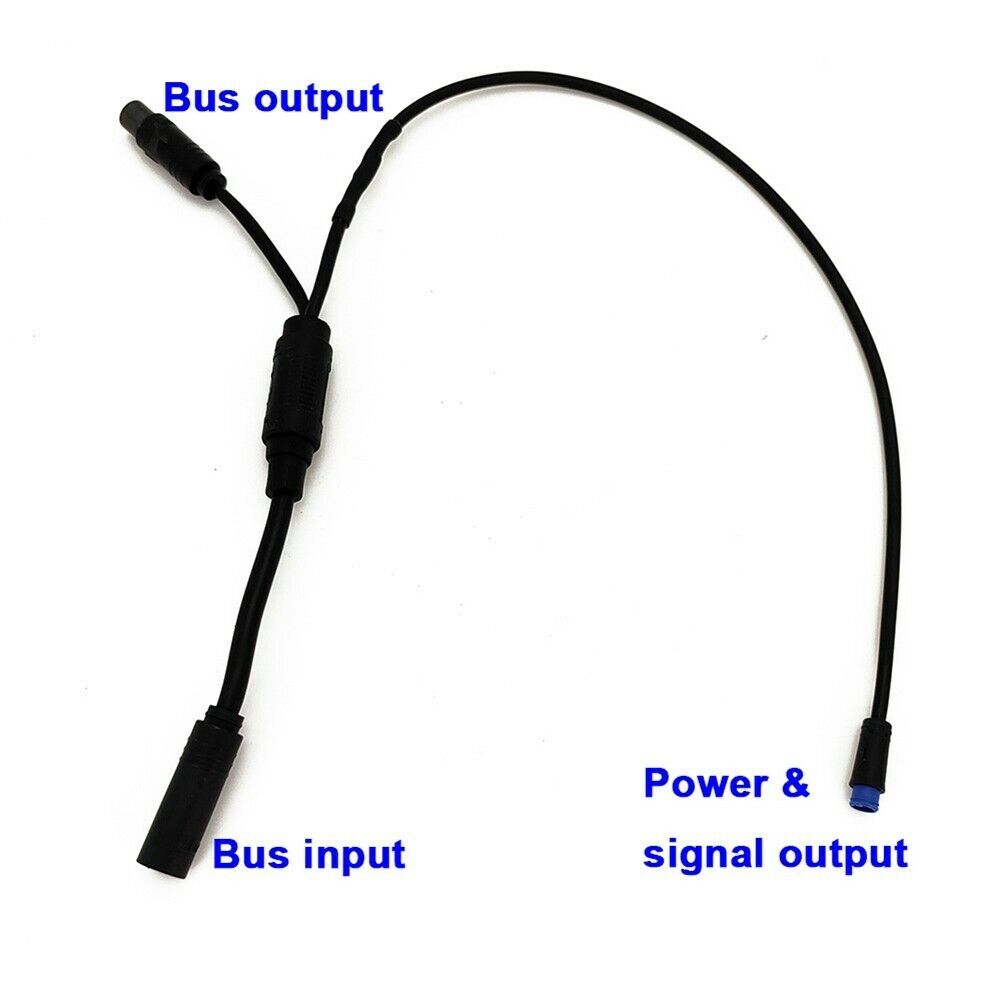

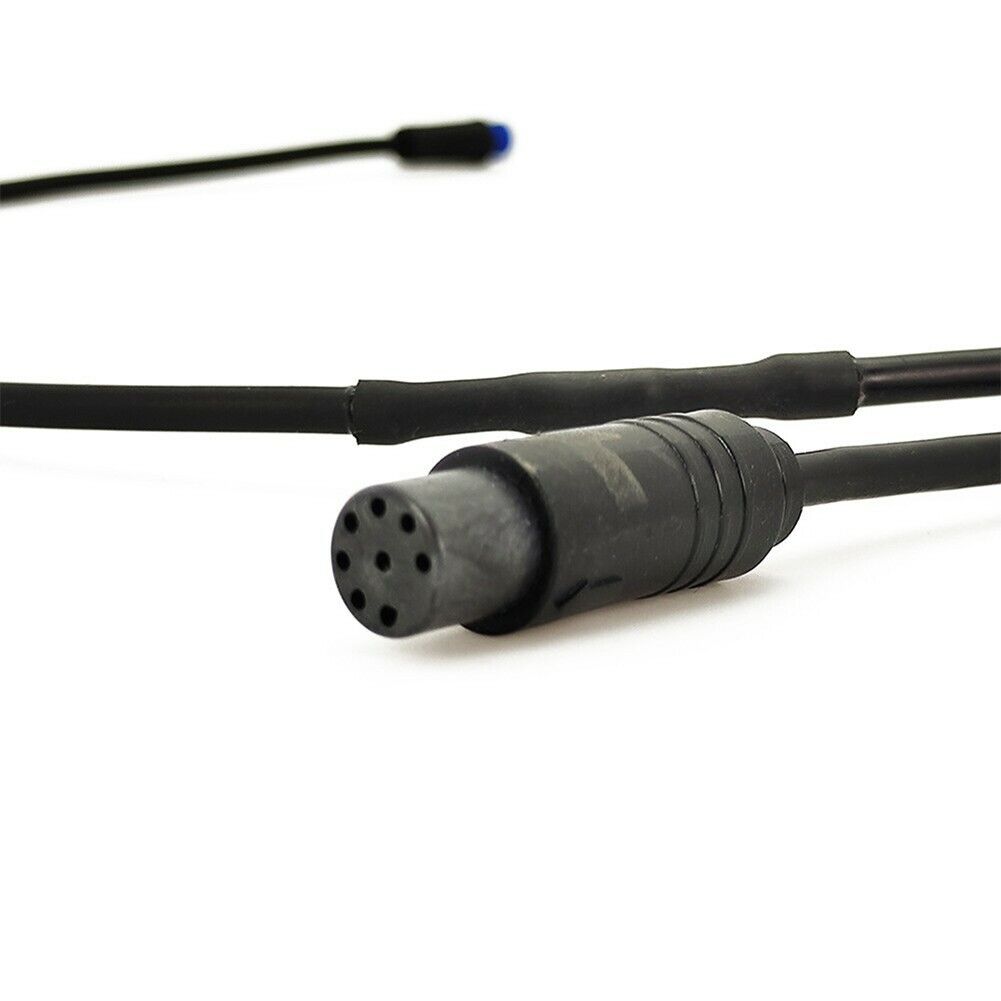

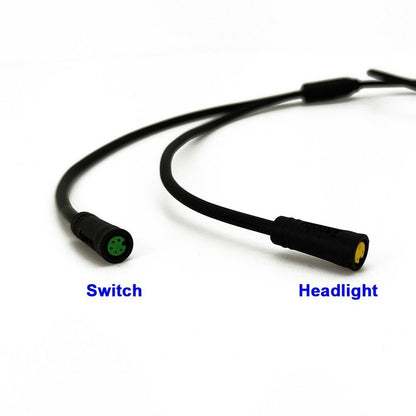

Waterproof Cable Parameters:

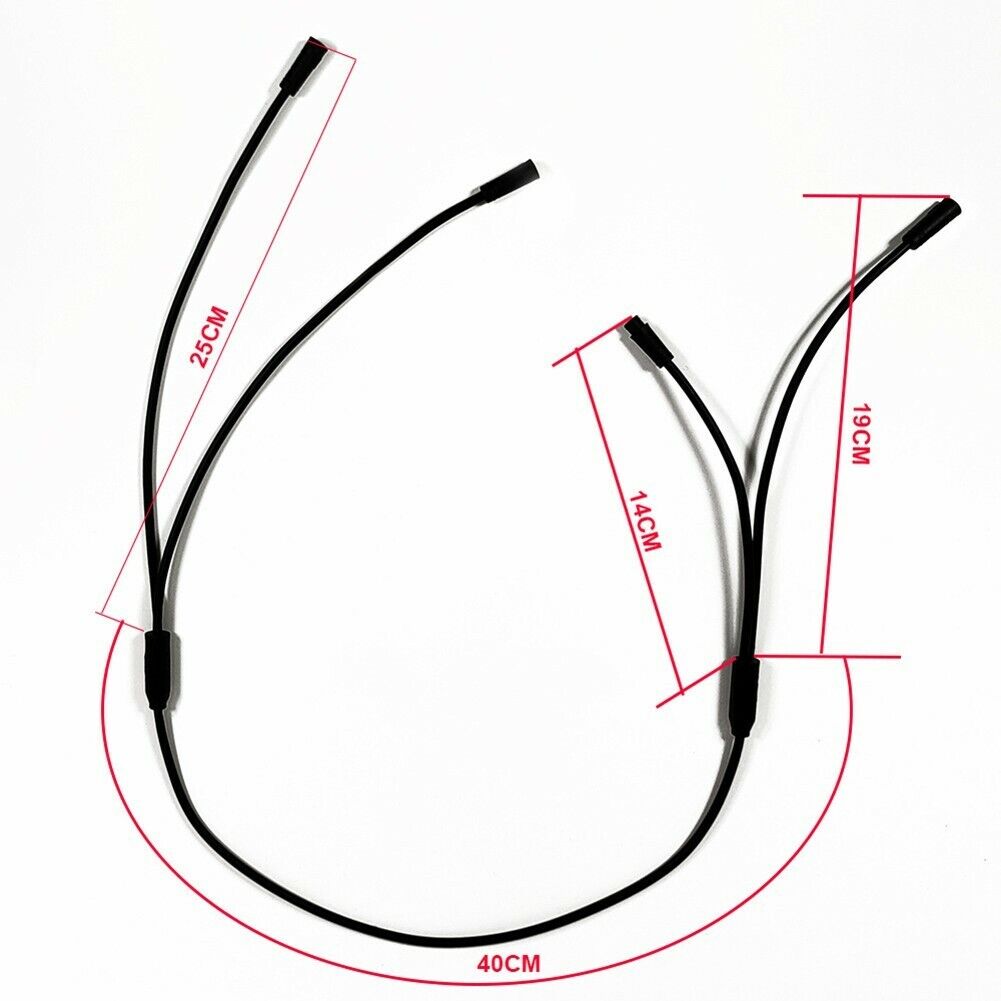

Waterproof line length (tolerance about 1CM):

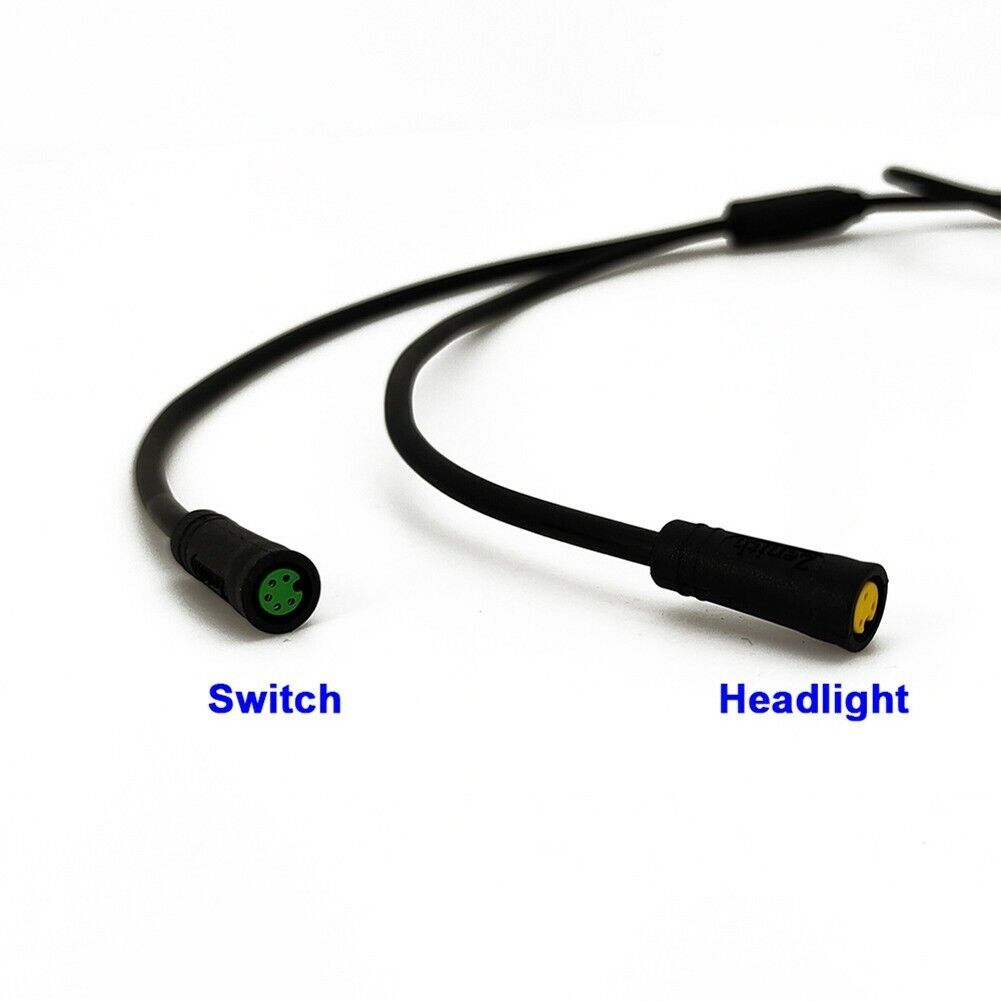

Front light: 25CM + bus 16CM
Switch: 25CM + bus 33CM
The bus contains a large part of the separation: 41CM

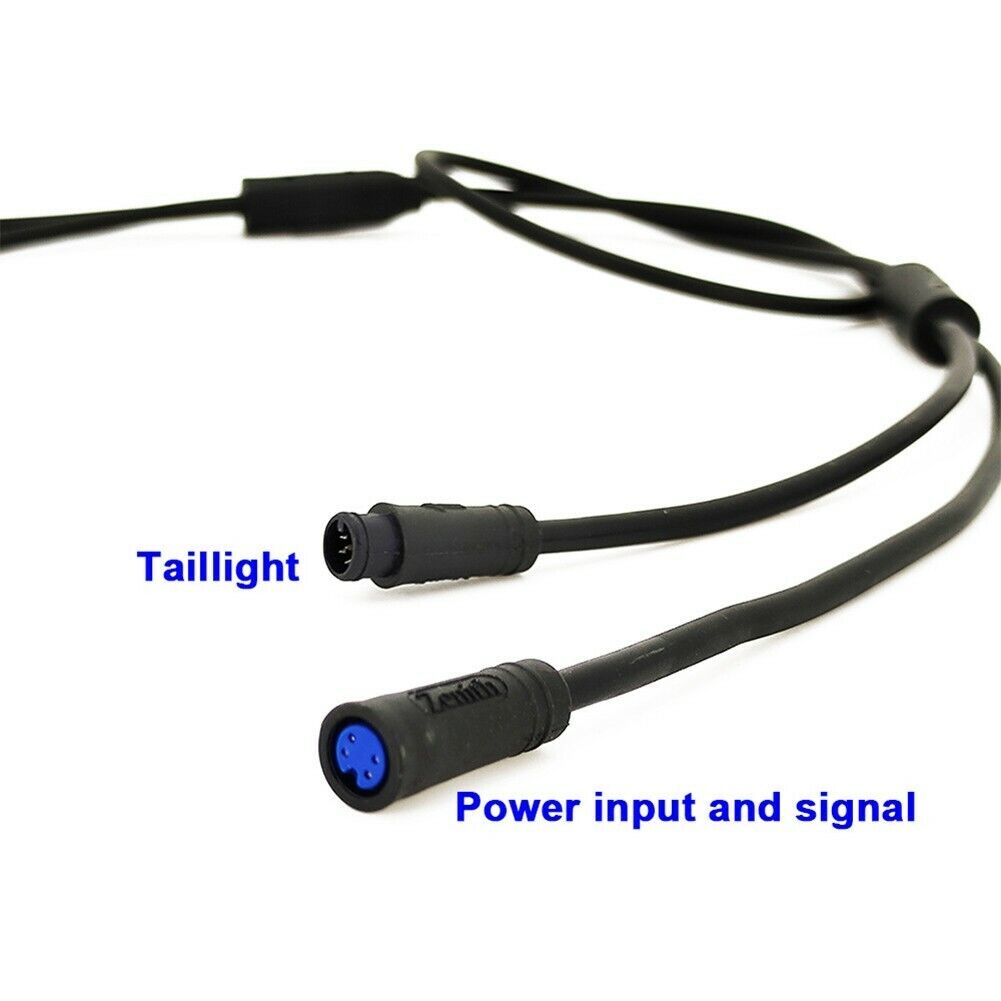

Tail light: bus 14.5CM+145CM
Power supply: 19.5CM + bus 39CM
Total length 24CM, tail light power supply part 25CM

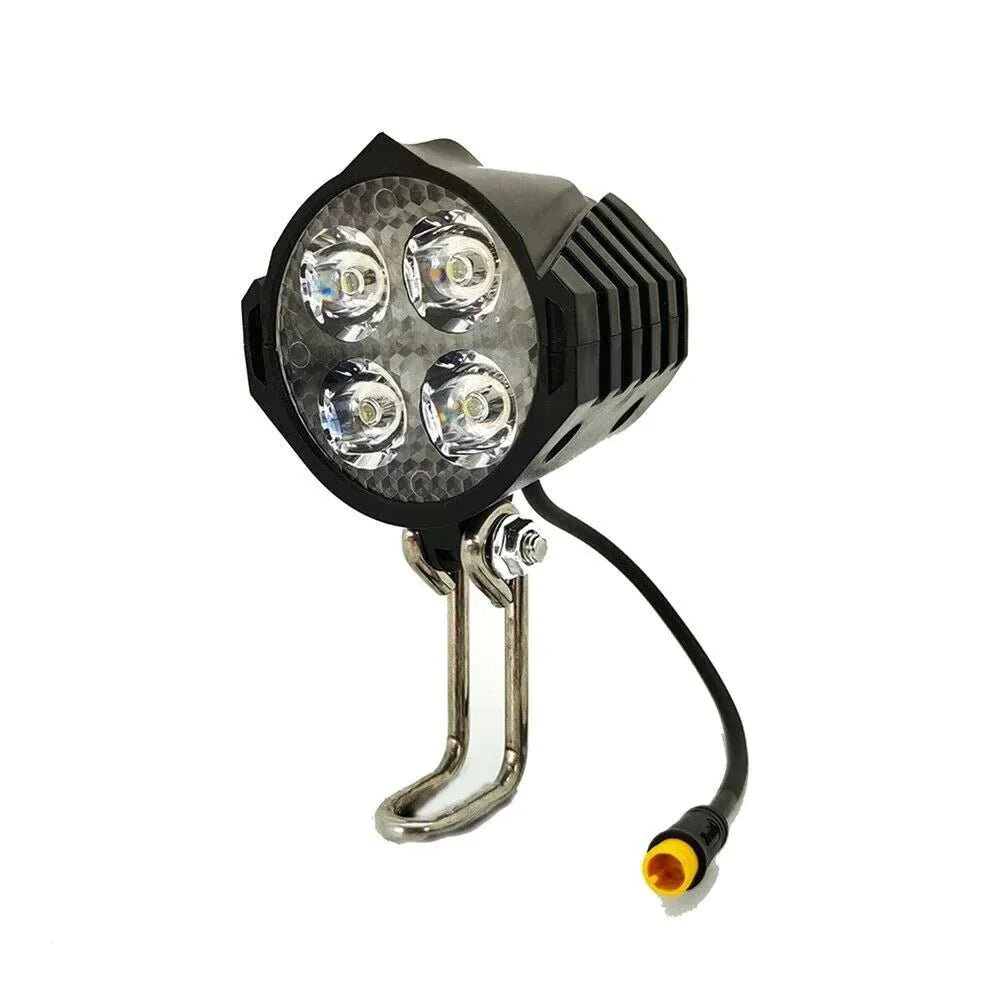

Front Light Parameters:
Power input voltage: 24~48V
Lamp current/power: 59mA/2.8W
Luminous flux [LM]: 180~200LM
Speaker current/power: 44mA/2.1W
Speaker volume: 80~100dB
Product appearance (50*62*73)
Taillight parameters:
Net weight of tail light: 120g
Shell material: plastic
Applicable voltage range: 24-80V
Power: 1.5W
Number of light sources: 14
Luminous flux: 15LM
Product size: 132*65*40mm
Cable length: about 1.5M

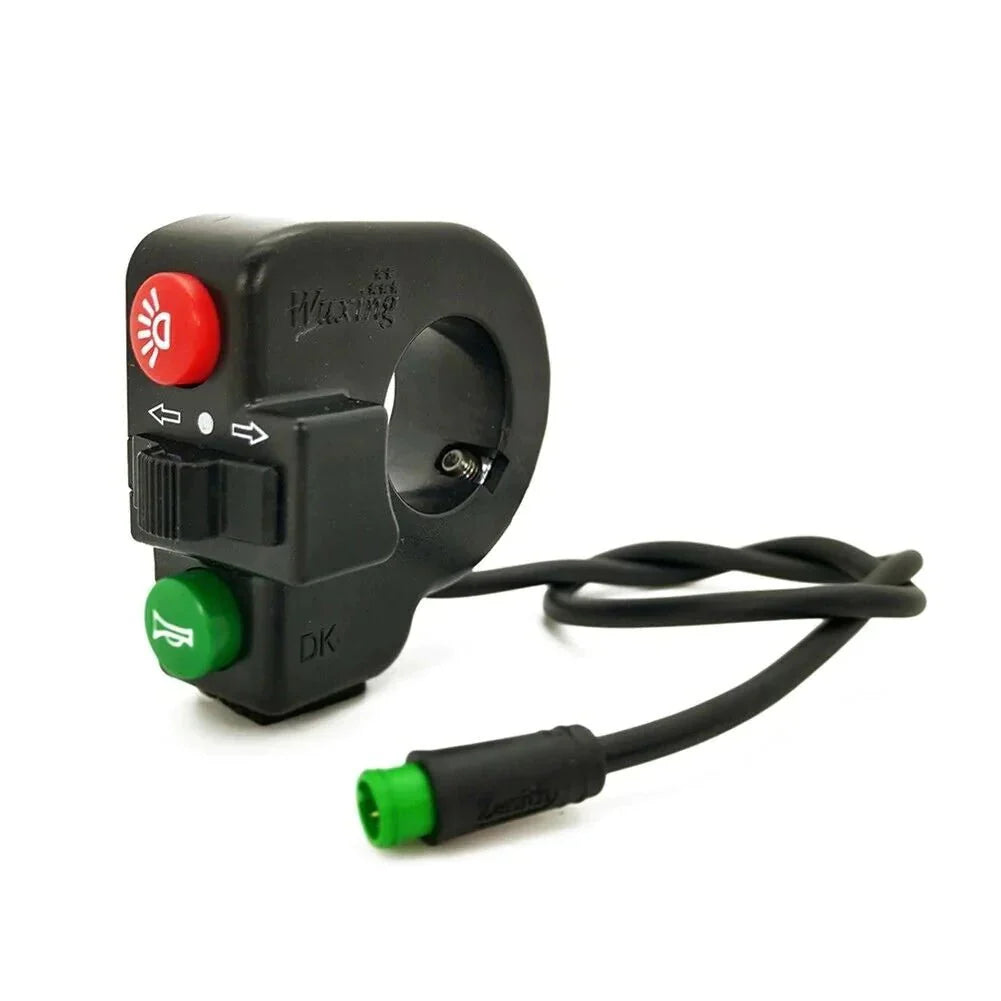

Switch parameters:
1. Net weight of switch: 92g
2. Shell material: plastic
Product size: 26*53*61mm
Cable length: about 1.5M
Package Includes:
1 x Front Light
1 x Switch
1 x Taillight
1 x Waterproof cable
