Eggrider C1 Color Bafang Display

EggRider C1 color display for eBikes offers real-time ride data, customizable settings, and Bluetooth app control in a compact, easy-to-read screen.

Compatible with Bafang BBS10B/BBS02B/BBSHD UART Mid drive kits

Introducing our NEW colour eBike display EggRider C1

It is brighter and larger giving you an optimum readability.

Features:

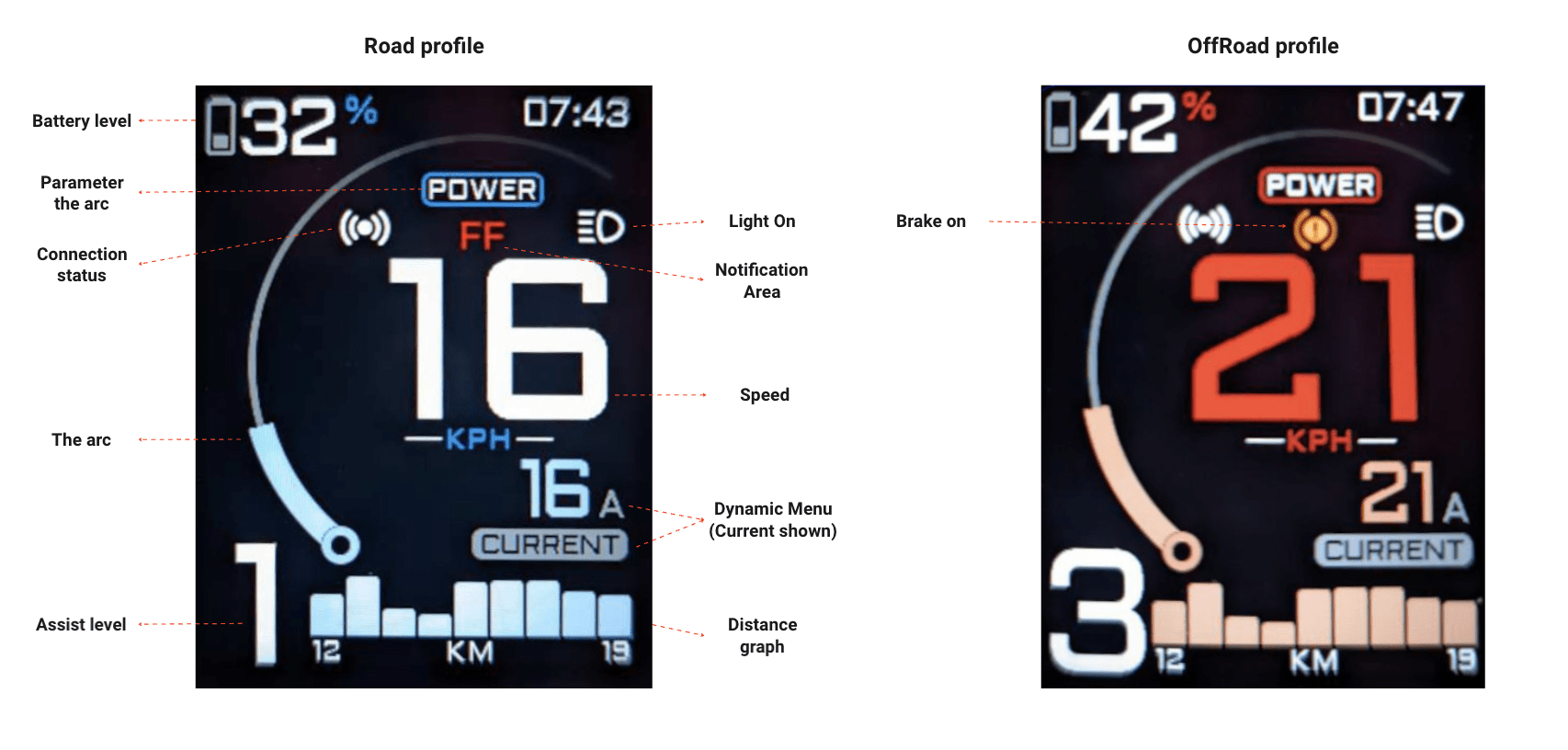

• Incorporated with our new colorful and animated dashboard, providing you all you need with a vibrant and premium feel.


• Includes a remote, essential for navigating information/settings on the larger display.

• Easy to read your statistics without the need for your phone.

• Voltage readings range from 20V up to 60V.

• With just a simple click, switch between different information displayed on the screen.

• Get essential and accurate data including battery percentage, speed, power, and distance.

• Access advanced statistics such as energy efficiency, range estimation, voltage, and battery cycles.

• Detects real battery capacity and tracking stats of up to 3 battery profiles.

• EggRider mobile app is available for Android and iOS, allowing easy configuration from the app.

• In-depth charts capability for your rides.

• Customisable settings:

• Throttle yes/no switching

• Pedal assist yes/no

• Power levels

Specifications:

Display:

User Manual)

• Size: 47.4mm x 64.2mm x 29.2mm

• Weight: 100g (including 2 mounts)

• Cable length: 30cm

• Handlebar mounting bracket: 31.8mm diameter, provided with a rubber spacer that adapts to 22.2mm diameter

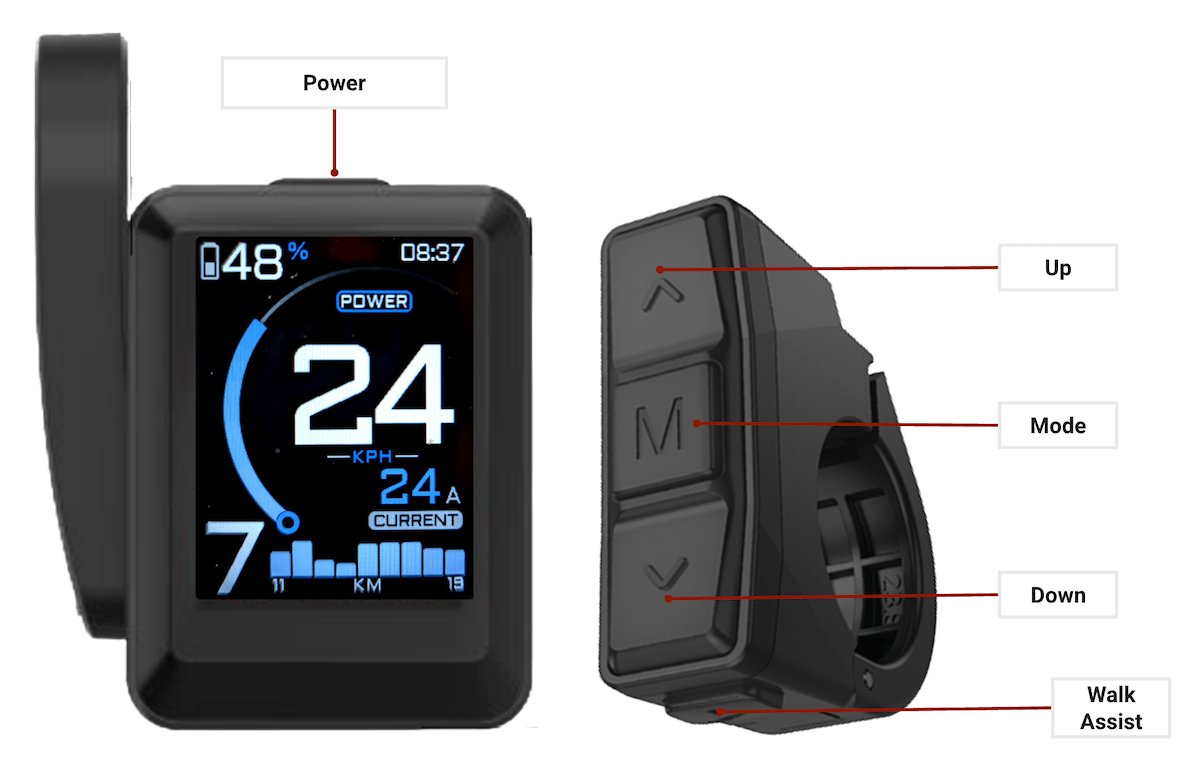

• Physical buttons: Power On/Off

• Connector: Higo/Julet waterproof 5 pin male/female

• Bluetooth low energy (BLE)

• Screw Hex bolt: M3x10mm

• Mounting clamp pin: 2.0mm diameter and around 15mm length

• Protection: Dust and water-resistant - IP65 protection

Remote:

• Size: 17mm x 43.7mm x 44.2mm

• Weight: 20g

• Cable length: 24cm

• Handlebar mounting bracket: 22.2mm diameter

• Physical buttons: Level Up/Down, Walk-Assist and popular Road/OffRoad mode switch

• Screw Hex bolt: M3x10mm

• Mounting clamp pin: 2.0mm diameter and 15mm length

• Protection: Dust and water-resistant - IP65 protection

Click here for Eggrider C1 user manual and official website

Click here to activate your Eggrider C1!
