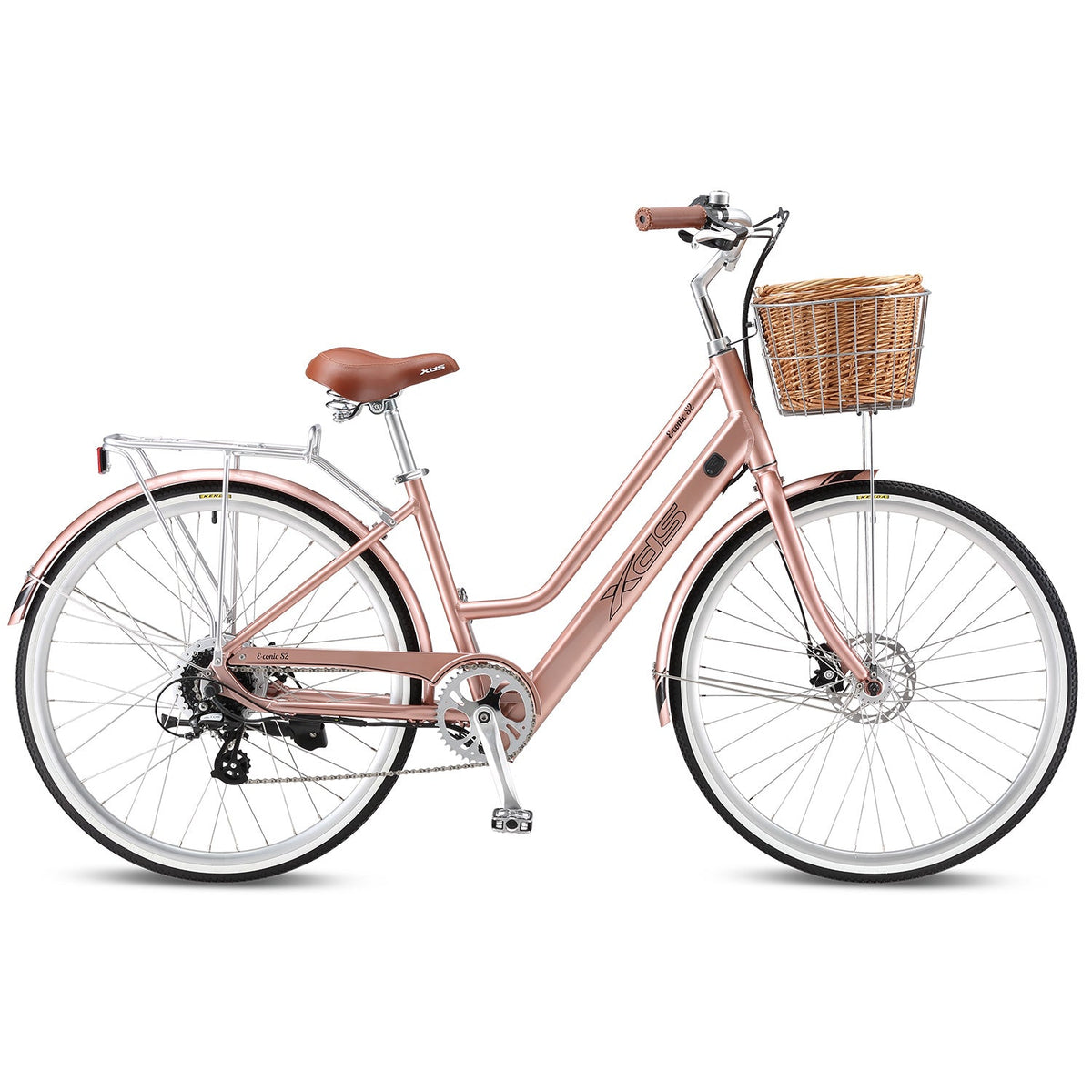

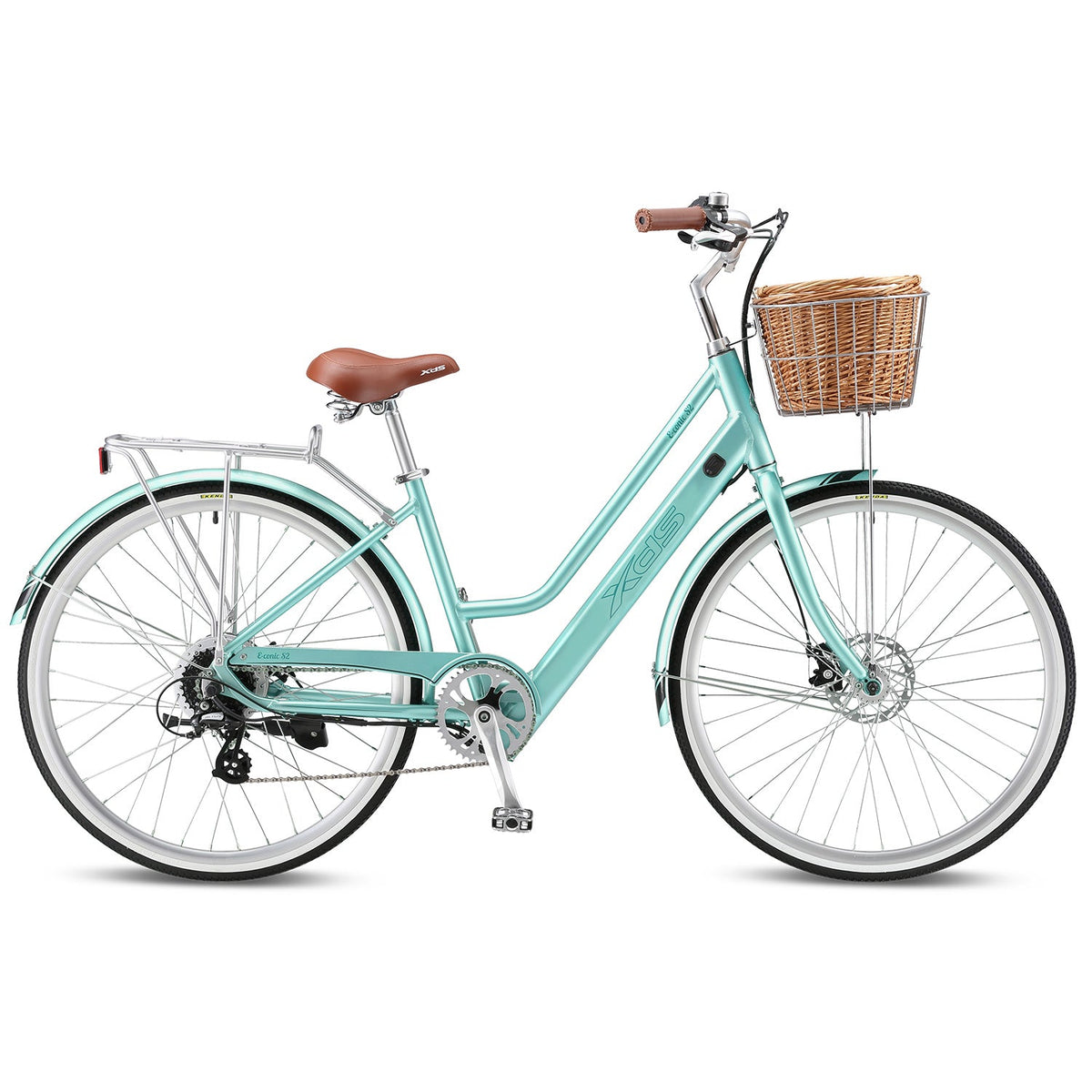

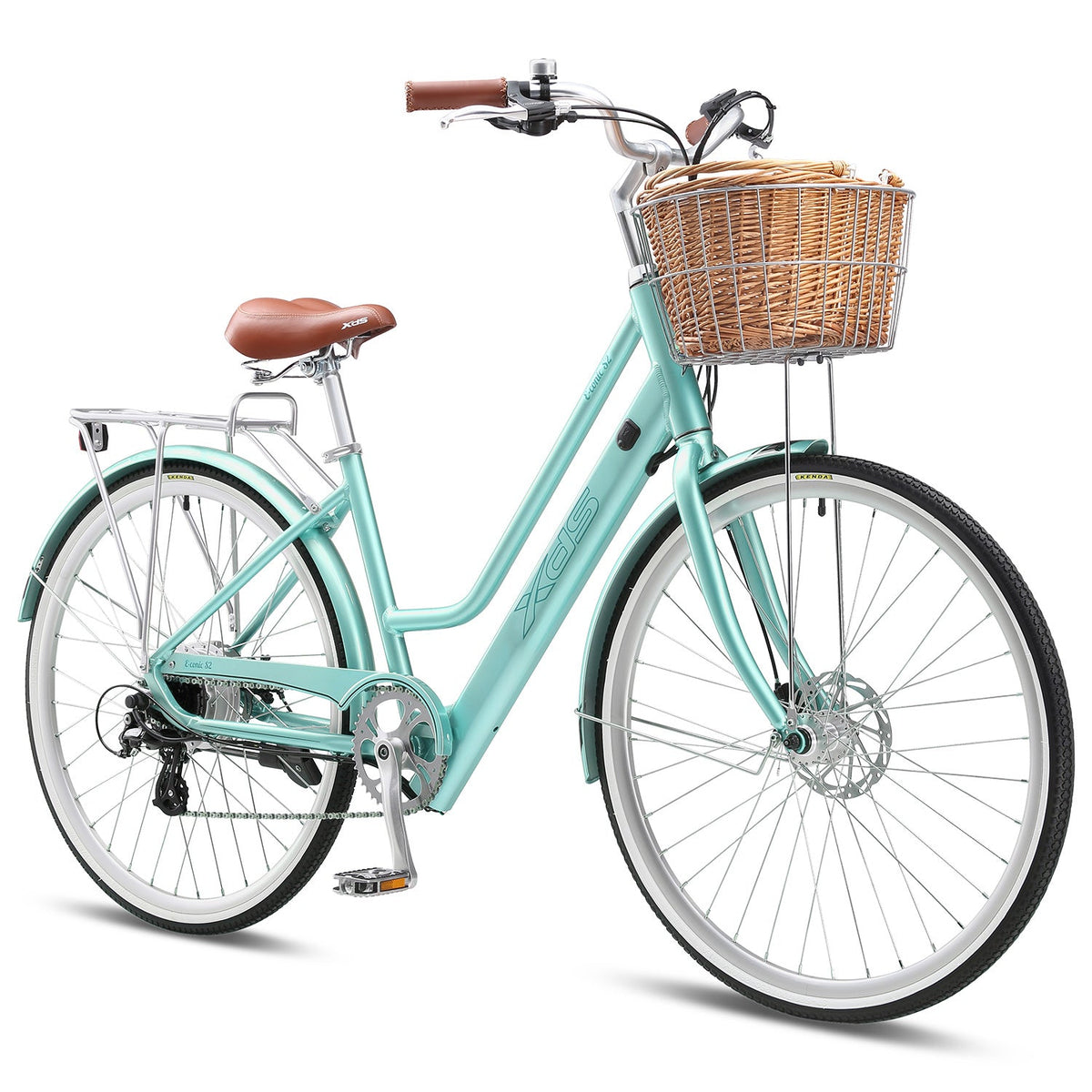

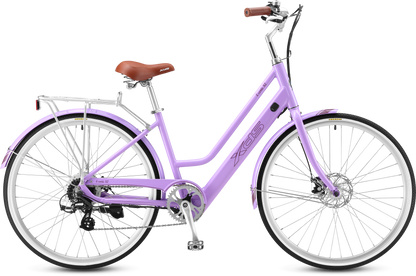

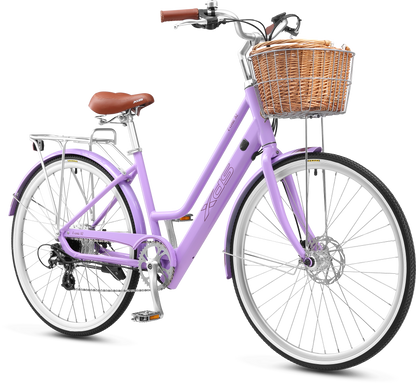

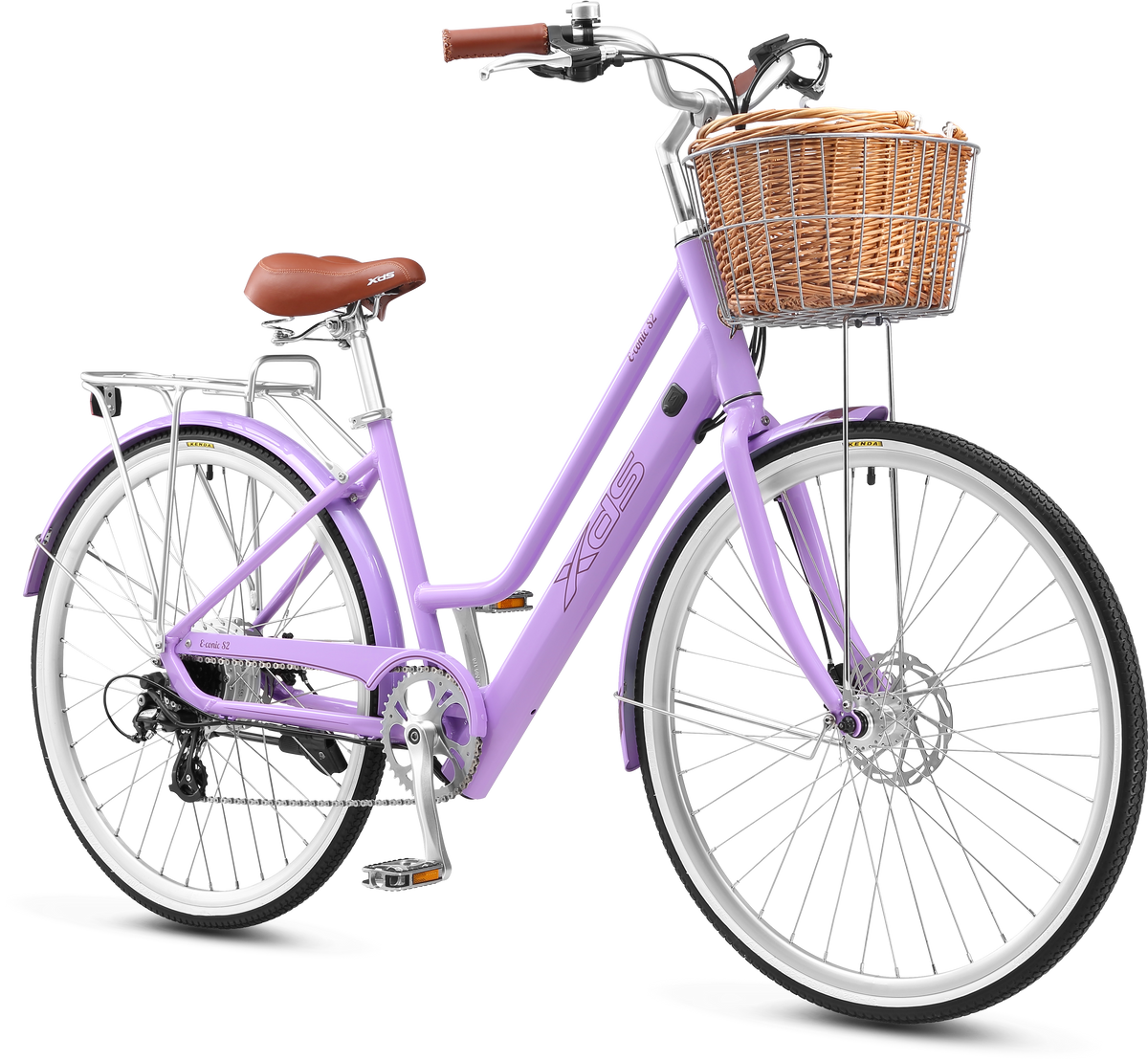

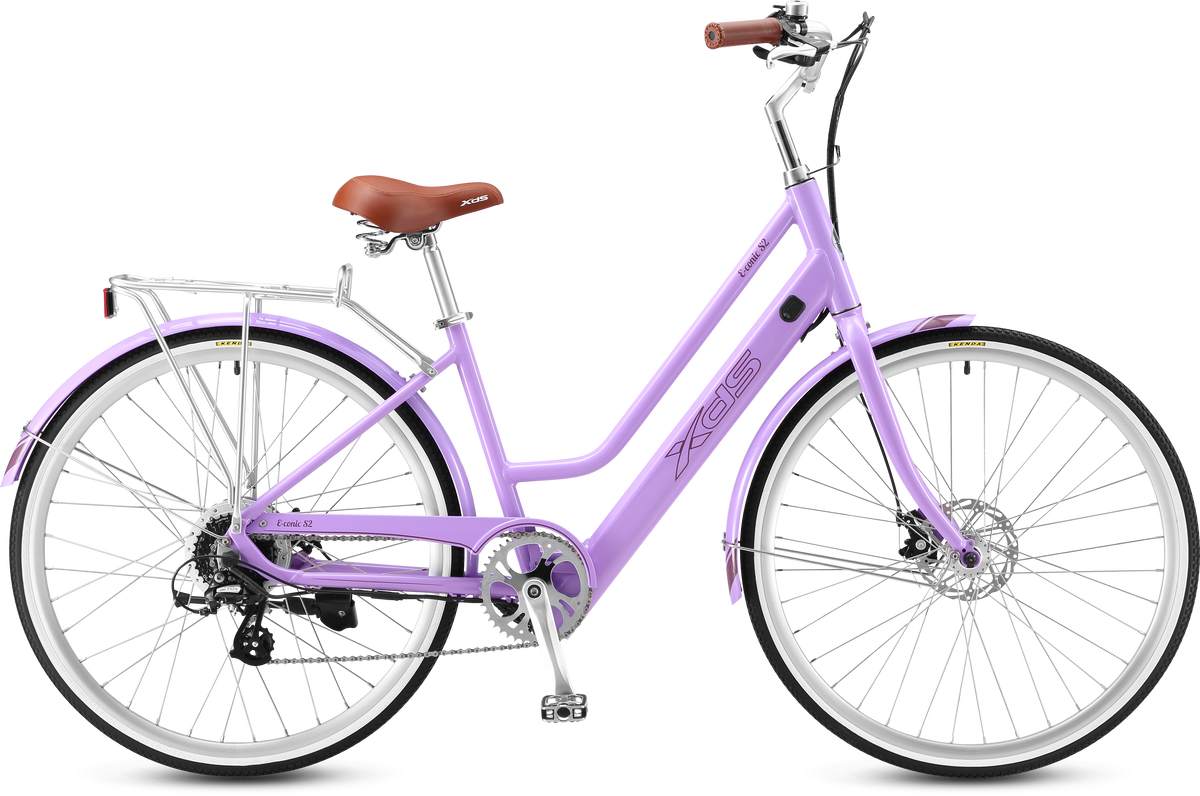

The XDS E-Conic S2 is a vintage-styled 700c alloy electric bike with a low step-through frame, a Bafang 250W rear hub motor and a 36V 10Ah (360Wh) frame-integrated battery with LG cells. It runs a Shimano Altus 8-speed drivetrain and Tektro cable disc brakes, with a Bafang colour TFT display with Bluetooth, and comes fitted with a steel and cane basket, front and rear fenders, chainguard and kickstand.
Specifications

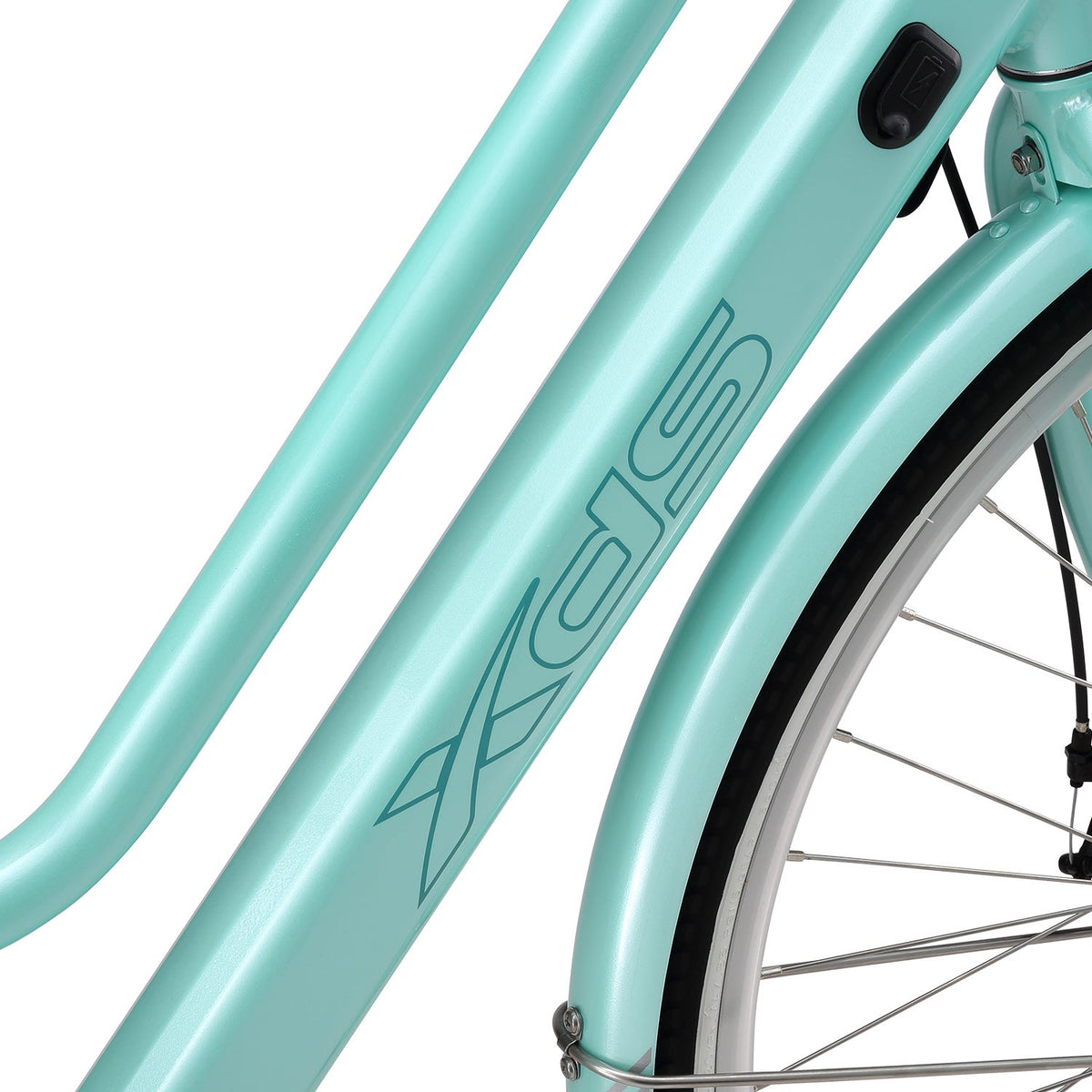

Frame: XDS 6061 alloy with internal battery, step-through, 15" and 17"
Fork: Steel

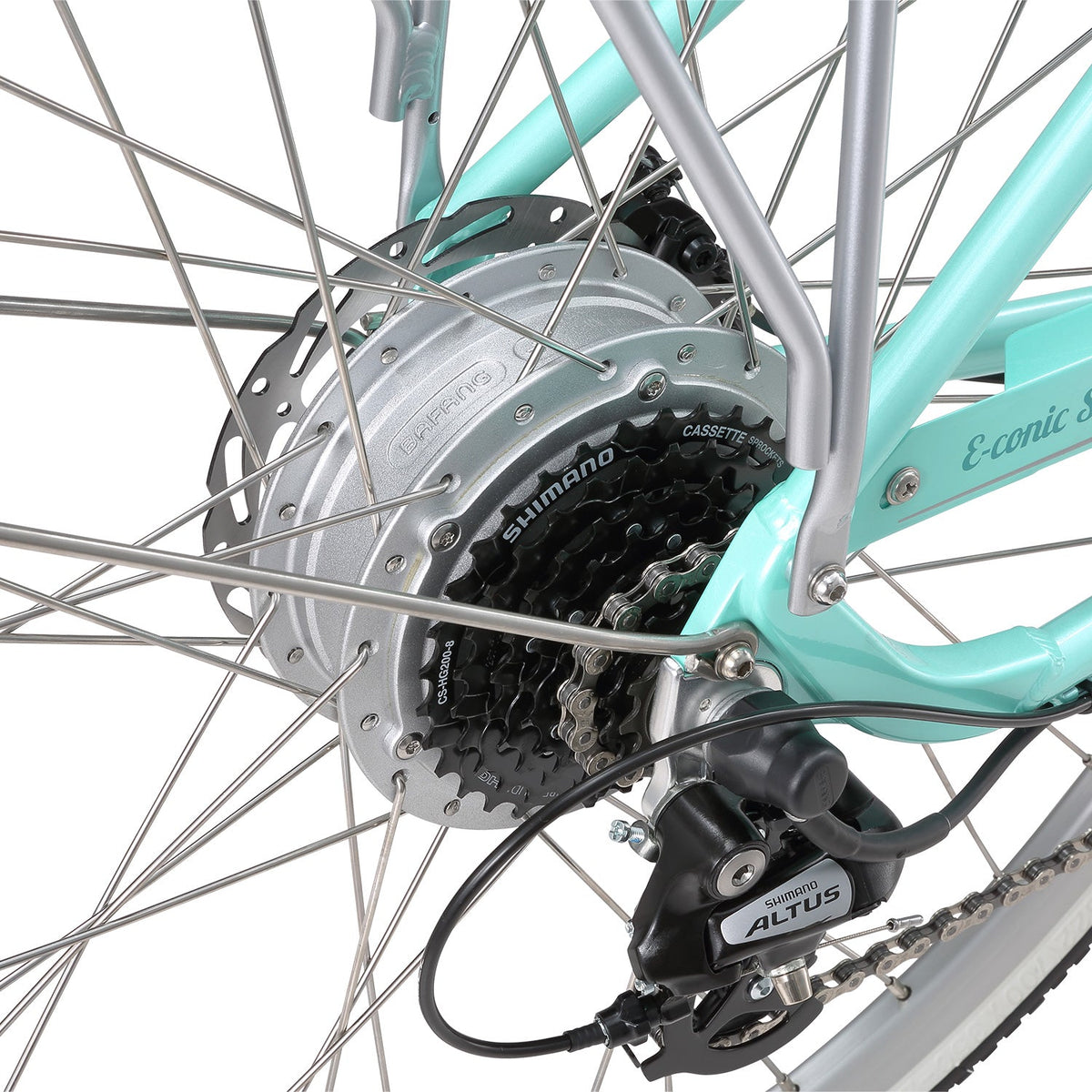

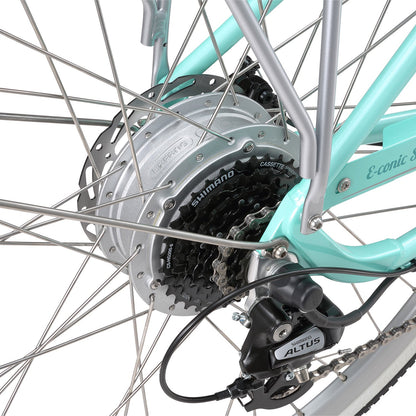

Motor: Bafang RM G020 250W rear hub
Battery: Bafang 36V 10Ah (360Wh), CAN protocol

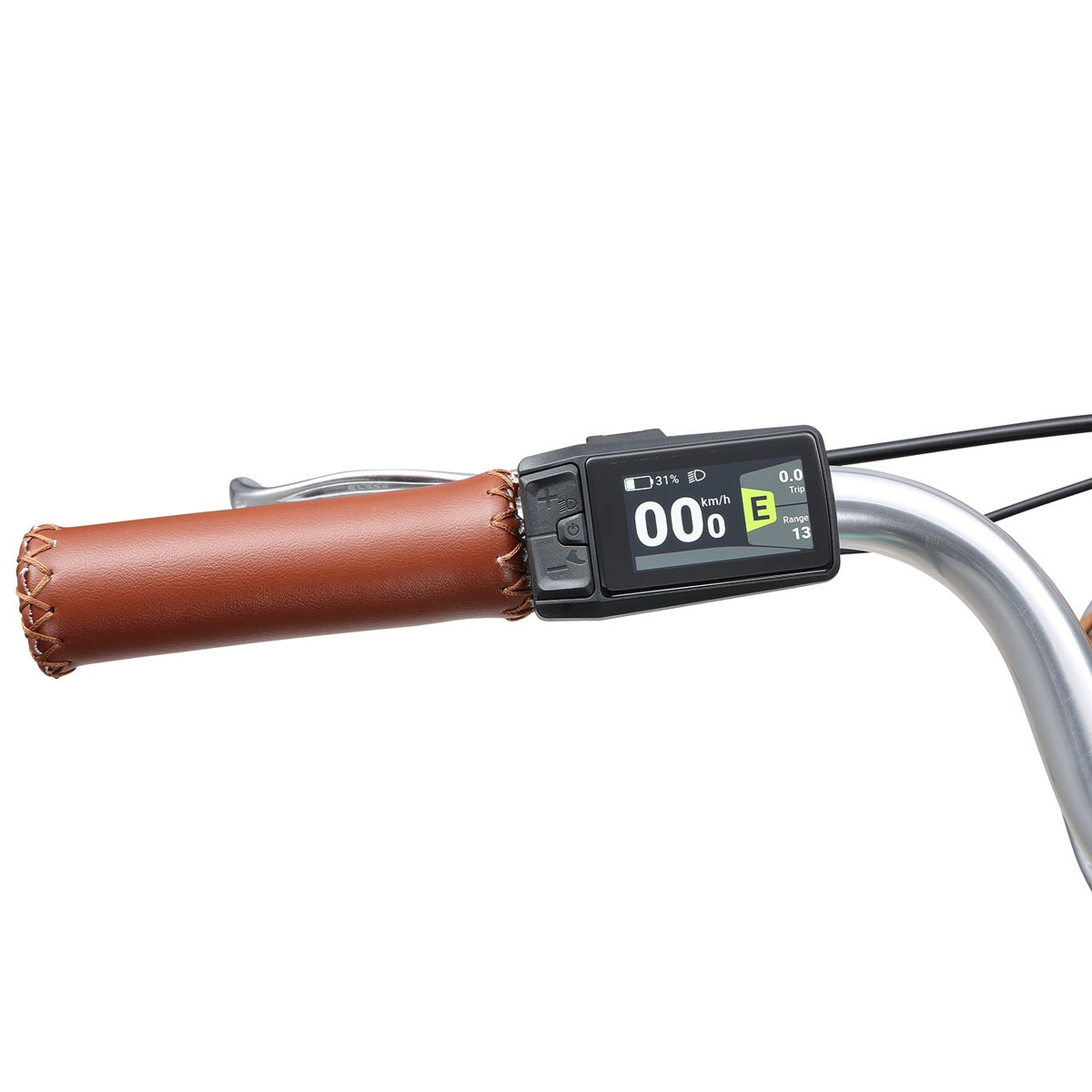

Display: Bafang DP C080 TFT, 36V, CAN, Bluetooth
Controller: Bafang XT30 36V 250W CAN
Charger: 42V 2A, DC2.1 port, 100-240V, AS standard
Speed sensor: Cable length 250mm

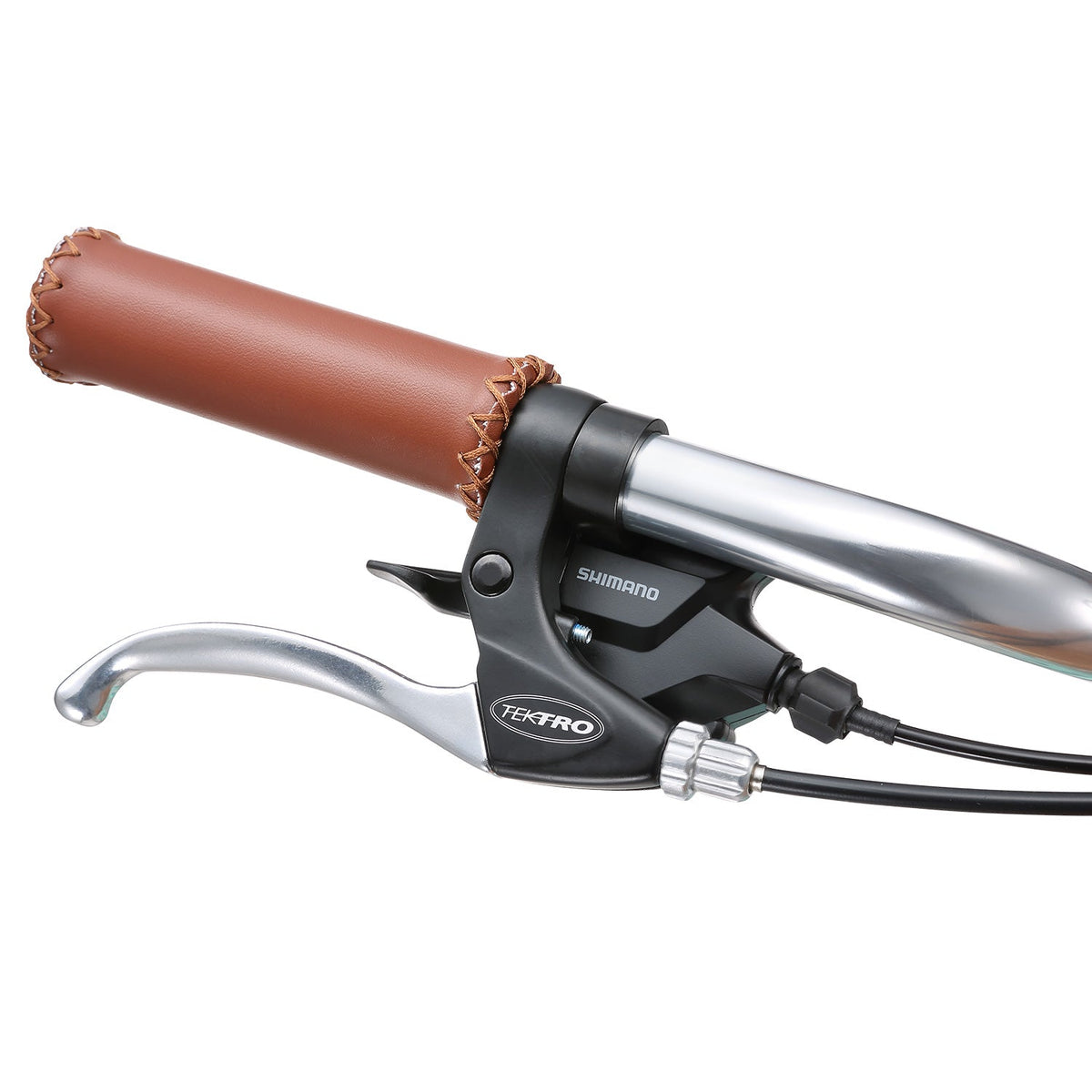

Shifter: Shimano SL-M315-8R 8-speed Rapidfire Plus

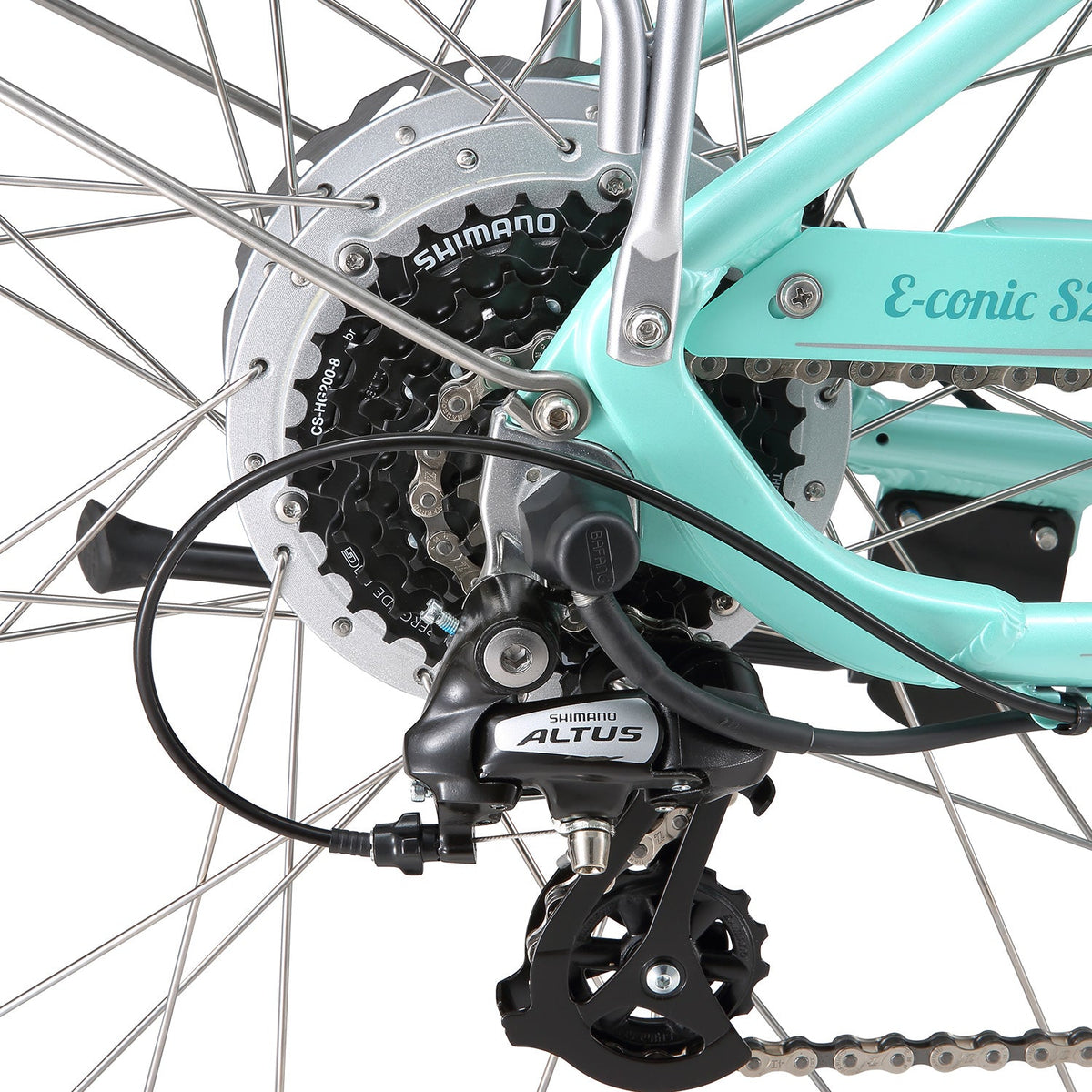

Rear derailleur: Shimano Altus M310 8-speed
Freewheel: Shimano HG200 12-32T 8-speed
Chainwheel: HDL-L132 42T, 170mm cranks
Chain: Z72 1/2 x 3/32 x 112L
Bottom bracket: VP-BC73
Brakes: Tektro M280 cable disc, 160mm rotors front and rear
Tyres: Kenda 700c x 35
Rims: Alloy XD211 700c
Hubs: KT alloy
Spokes: Stainless steel 13G
Handlebar: Alloy, 610mm wide
Stem: Alloy 80mm
Grips: Foam comfort
Seatpost: Alloy 27.2 x 300mm, quick release clamp
Saddle: XDS Comfort
Pedals: Comfort style with ball bearings
Accessories: Steel and cane basket, steel front and rear fenders, steel chainguard, kickstand, alloy flick bell
Specifications are subject to change by the manufacturer without notice.
