XDS E-Street Electric Bike

In stock at Grace and Pace, Alphington, Melbourne.
Authorised XDS dealer.
Built, tuned and test-ridden in our workshop before you ride it home. First follow-up service included, warranty and parts handled here.

Test ride it: 2 Wingrove St, Alphington
Hours: Mon–Fri 9am–5pm · Sat 10am–4pm · Sun by appointment
Call: (03) 8542 9500

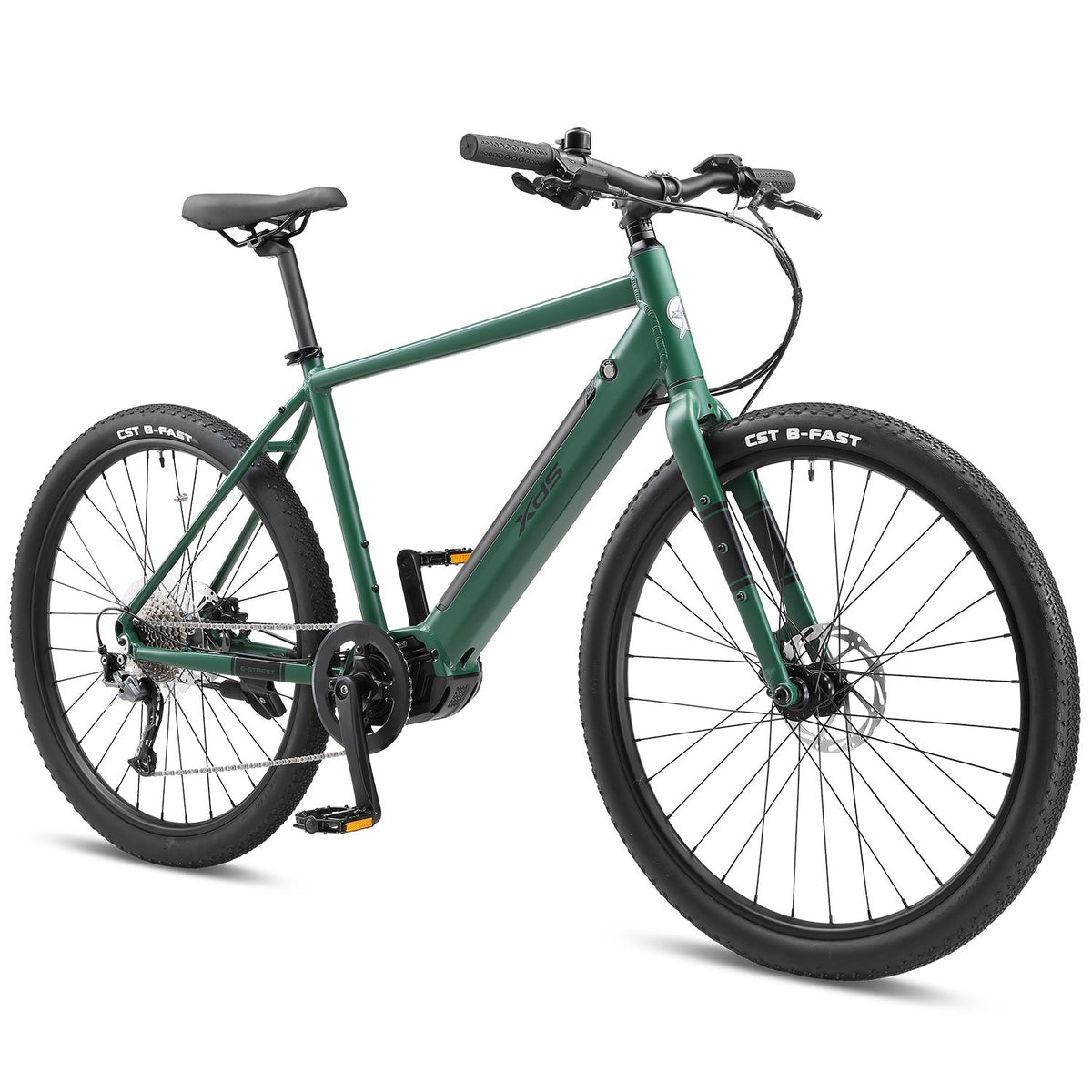

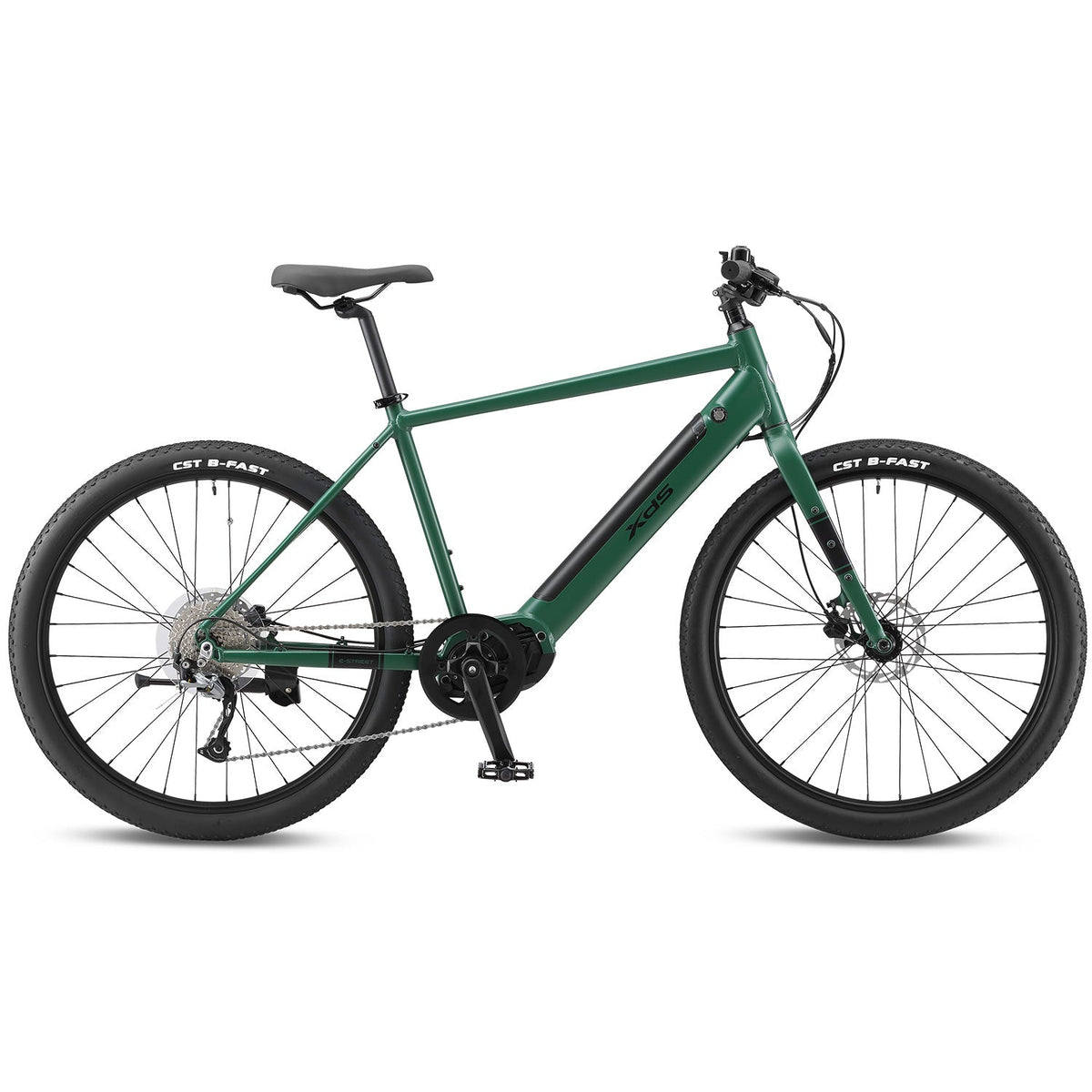

The XDS E-Street is a 27.5" alloy electric bike with a step-over frame, a Bafang 250W mid-drive motor with torque sensor and a 36V 14.2Ah frame-integrated battery. It runs a Shimano Alivio 9-speed drivetrain with shift sensor, Tektro hydraulic disc brakes and a Bafang LCD display. Speed limited to 25km/h.

Specifications

• Frame: XDS 6061 alloy with internal battery, 17", 19" and 21"
• Fork: X6 6061 alloy
• Motor: Bafang MM G333 36V 250W mid-drive, CAN, 25km/h
• Battery: Bafang BT F291.B378 36V 14.2Ah
• Torque sensor: SR SD02.01
• Shift sensor: KST3203A1004 for Bafang Max Drive

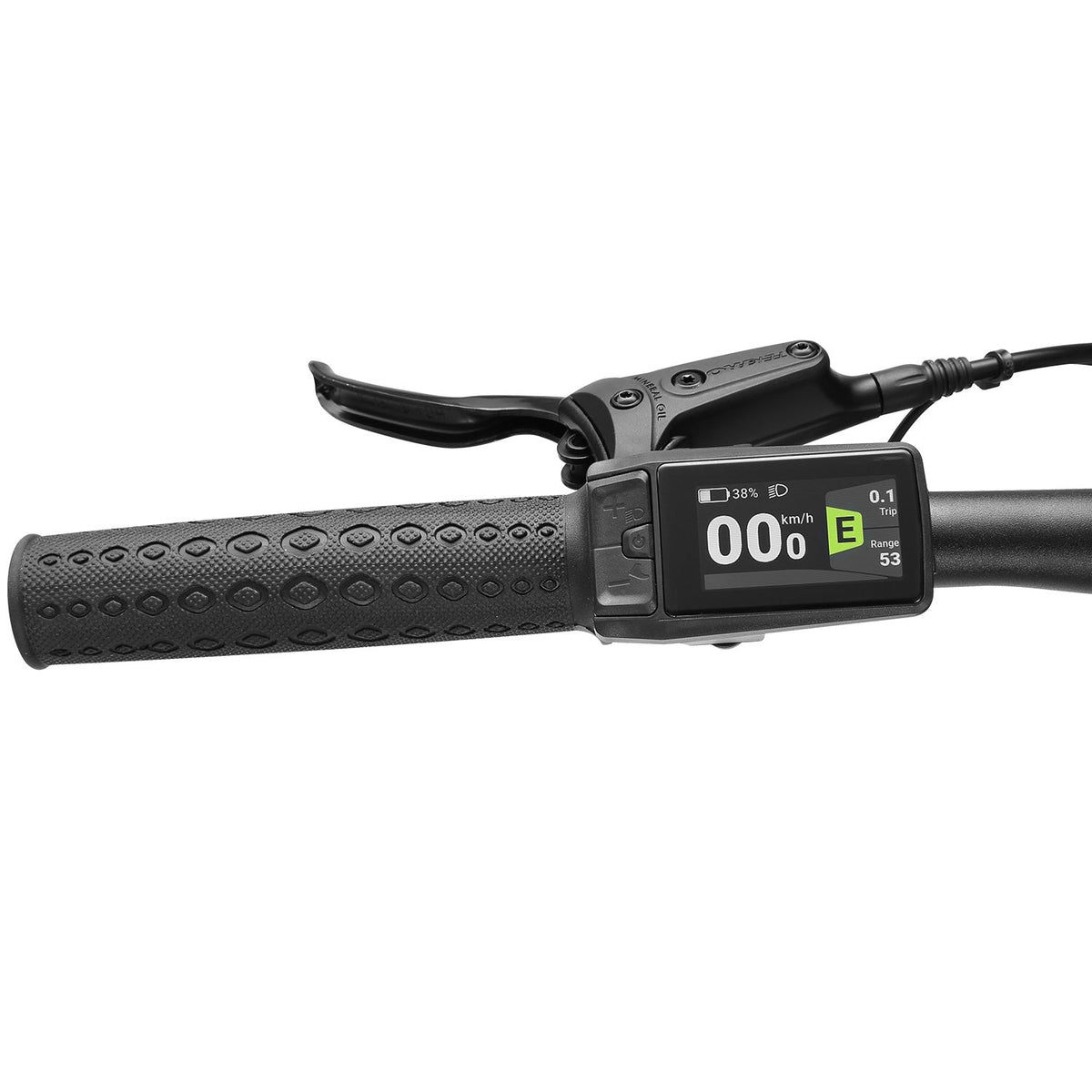

• Display: Bafang DP C10 UART LCD
• Charger: Spard 36V, 100-240V input

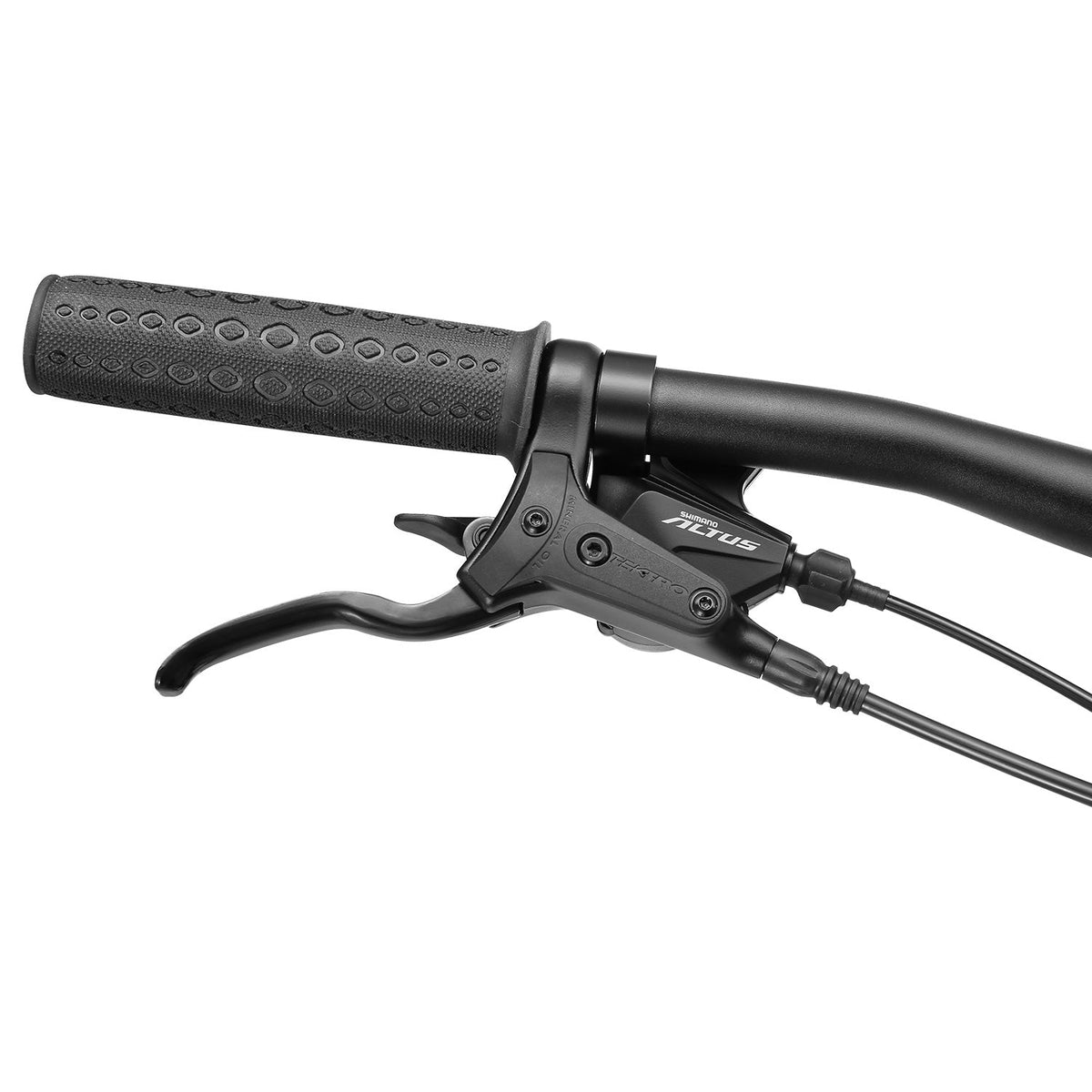

• Shifter: Shimano SL-M2010-9R Altus 9-speed Rapidfire Plus

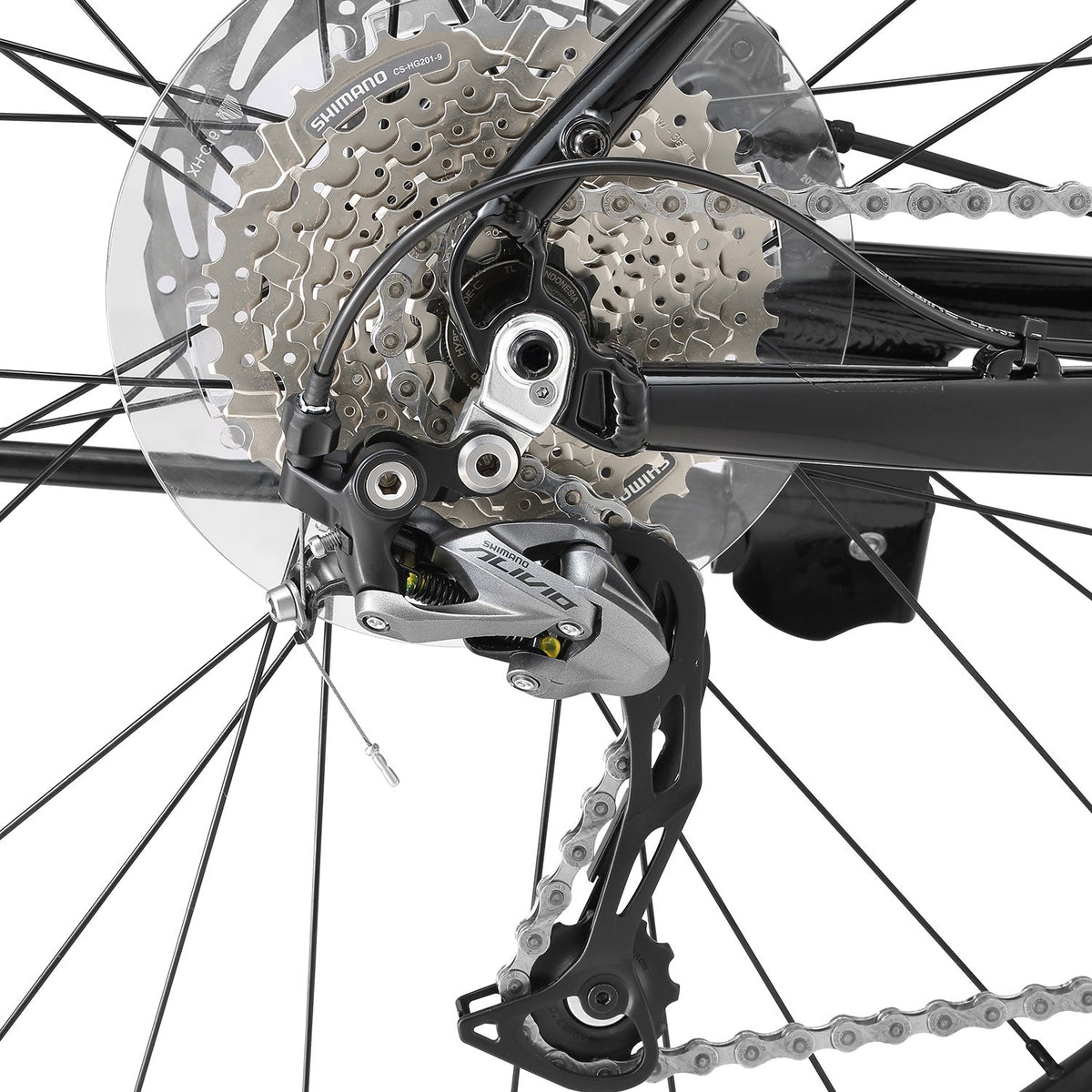

• Rear derailleur: Shimano RD-M4000-SGS Alivio 9-speed Shadow
• Cassette: Shimano HG201-9 11-36T
• Chainwheel: 42T with alloy cranks
• Chain: e9 Sport 114L
• Bottom bracket: Bafang
• Brakes: Tektro M275 hydraulic disc, 160mm rotors front and rear
• Tyres: CST 27.5 x 1.95
• Rims: XDS W127 alloy 32H
• Hubs: Alloy 32H with quick release
• Spokes: Stainless steel 13G
• Handlebar: Alloy, 680mm wide
• Stem: Alloy 45mm
• Grips: Rubber comfort
• Seatpost: Alloy 27.2 x 350mm, quick release clamp
• Saddle: XDS Comfort
• Pedals: Alloy
• Bell: Alloy flick

Specifications are subject to change by the manufacturer without notice.
