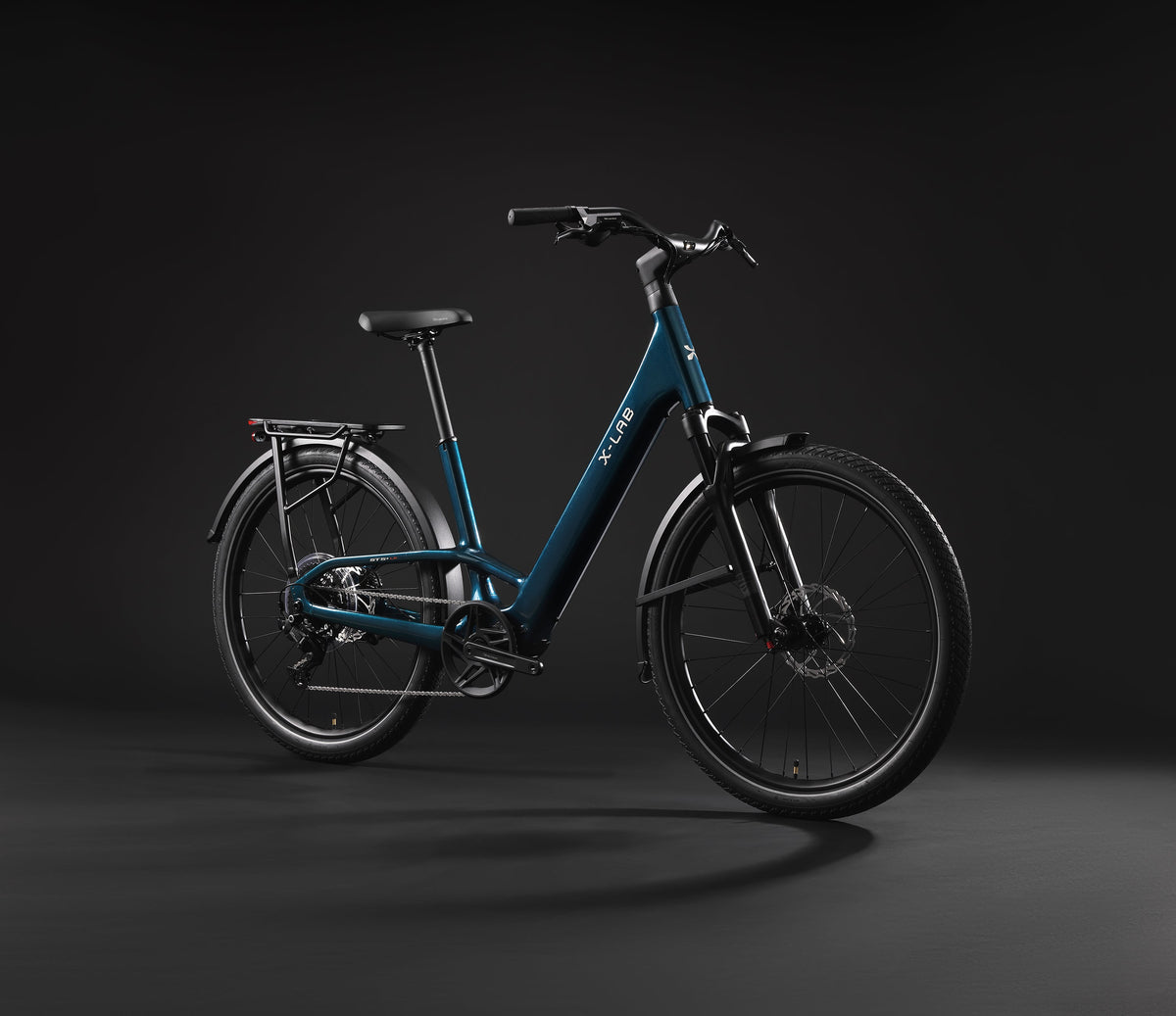

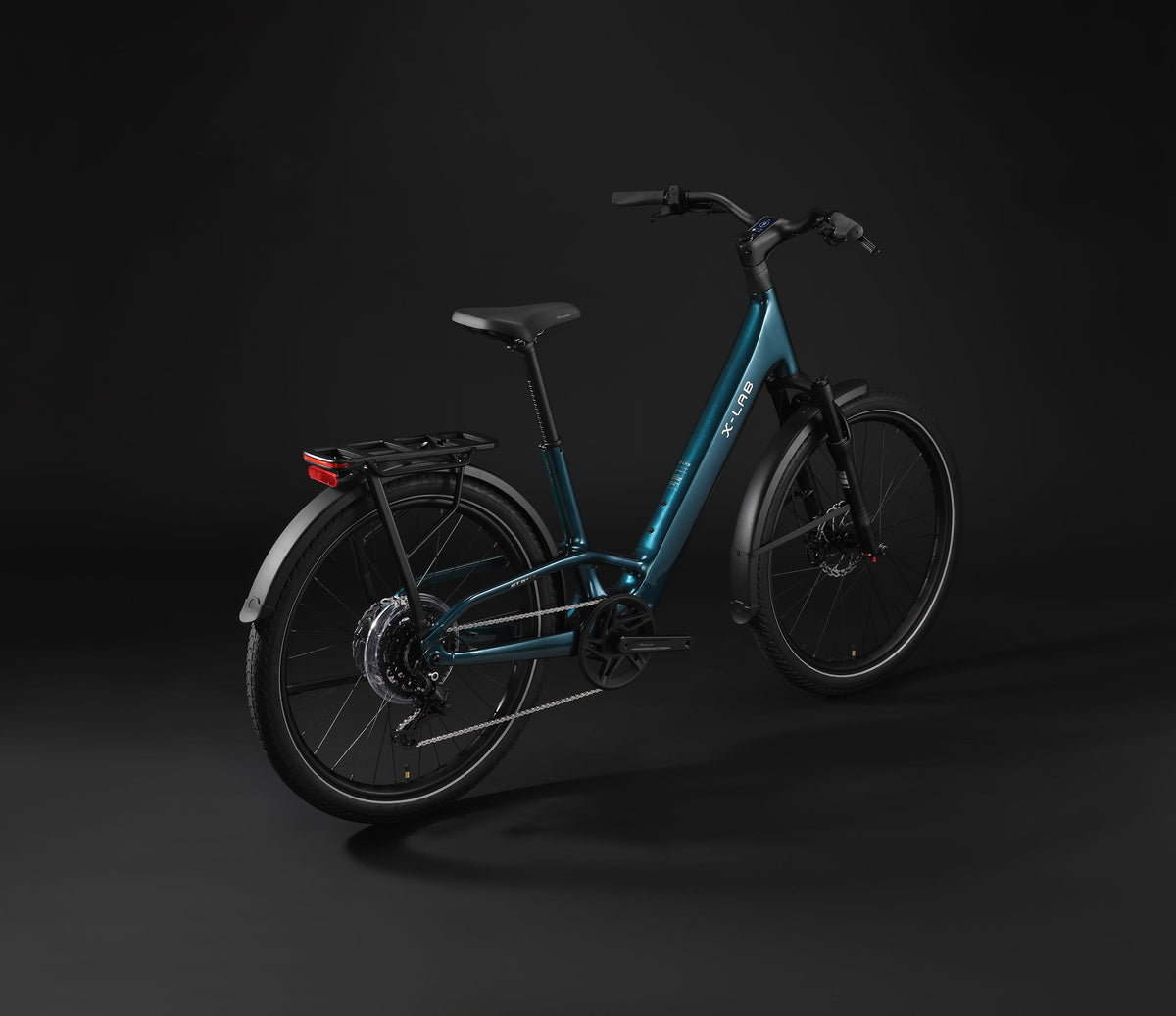

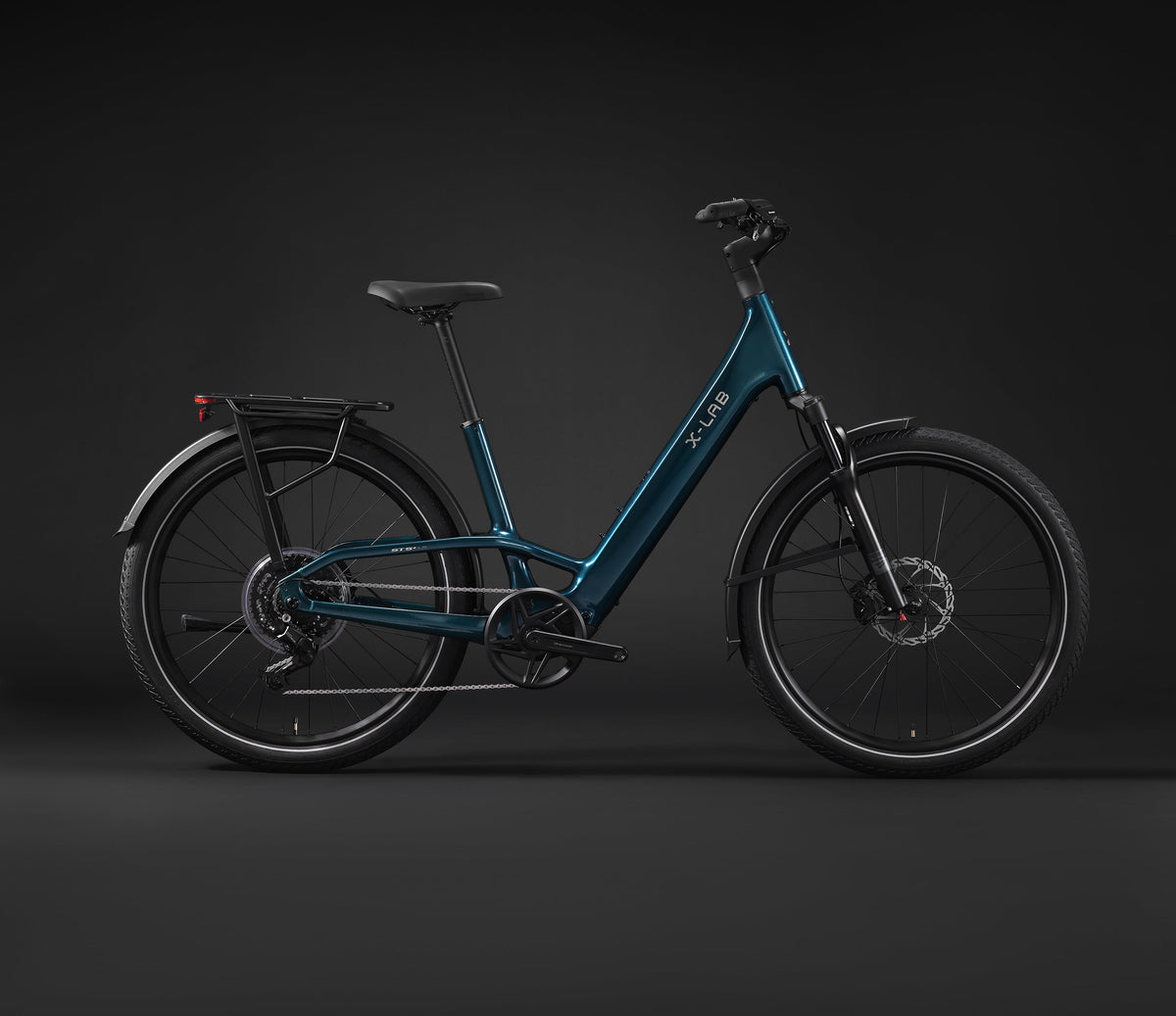

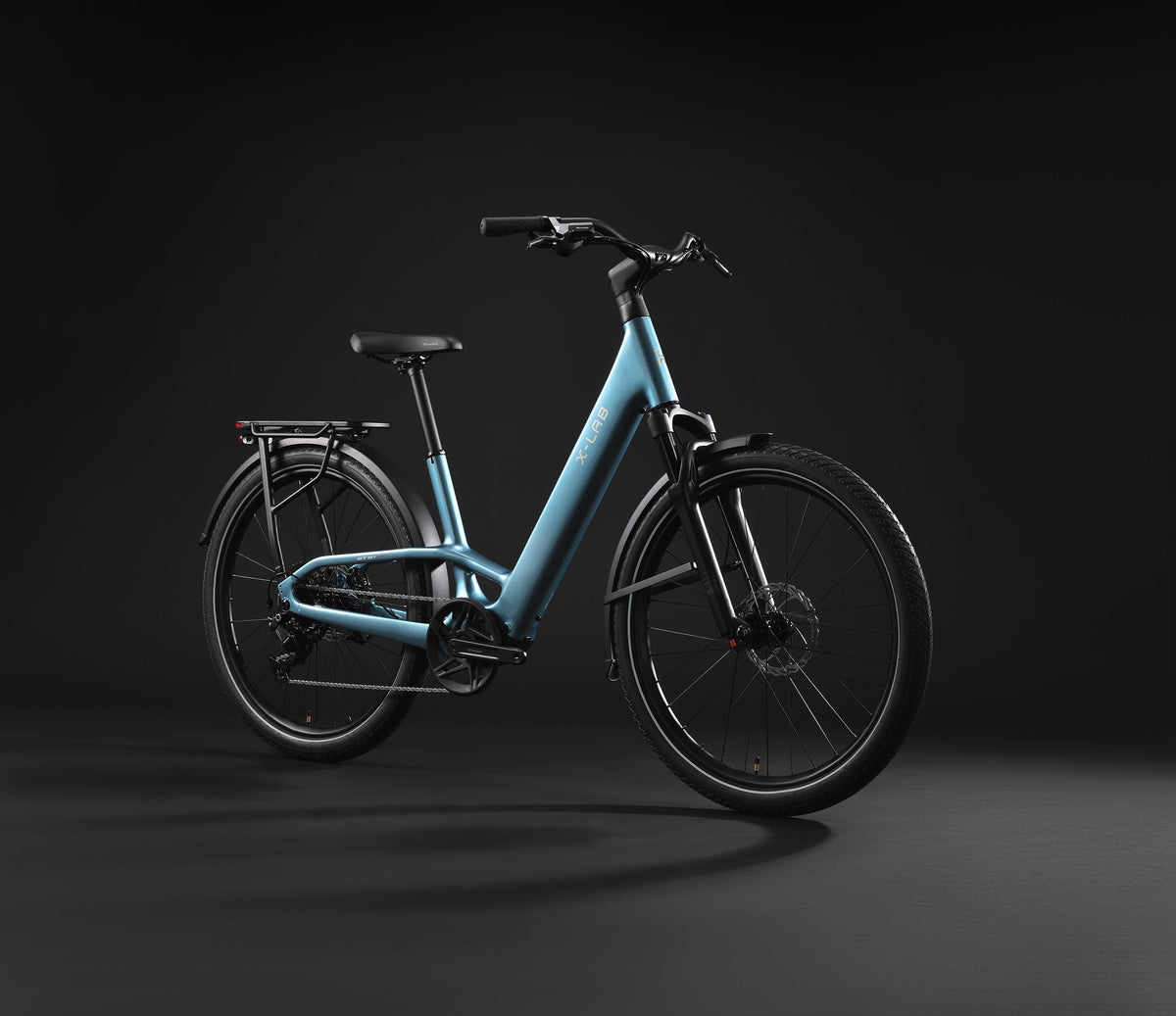

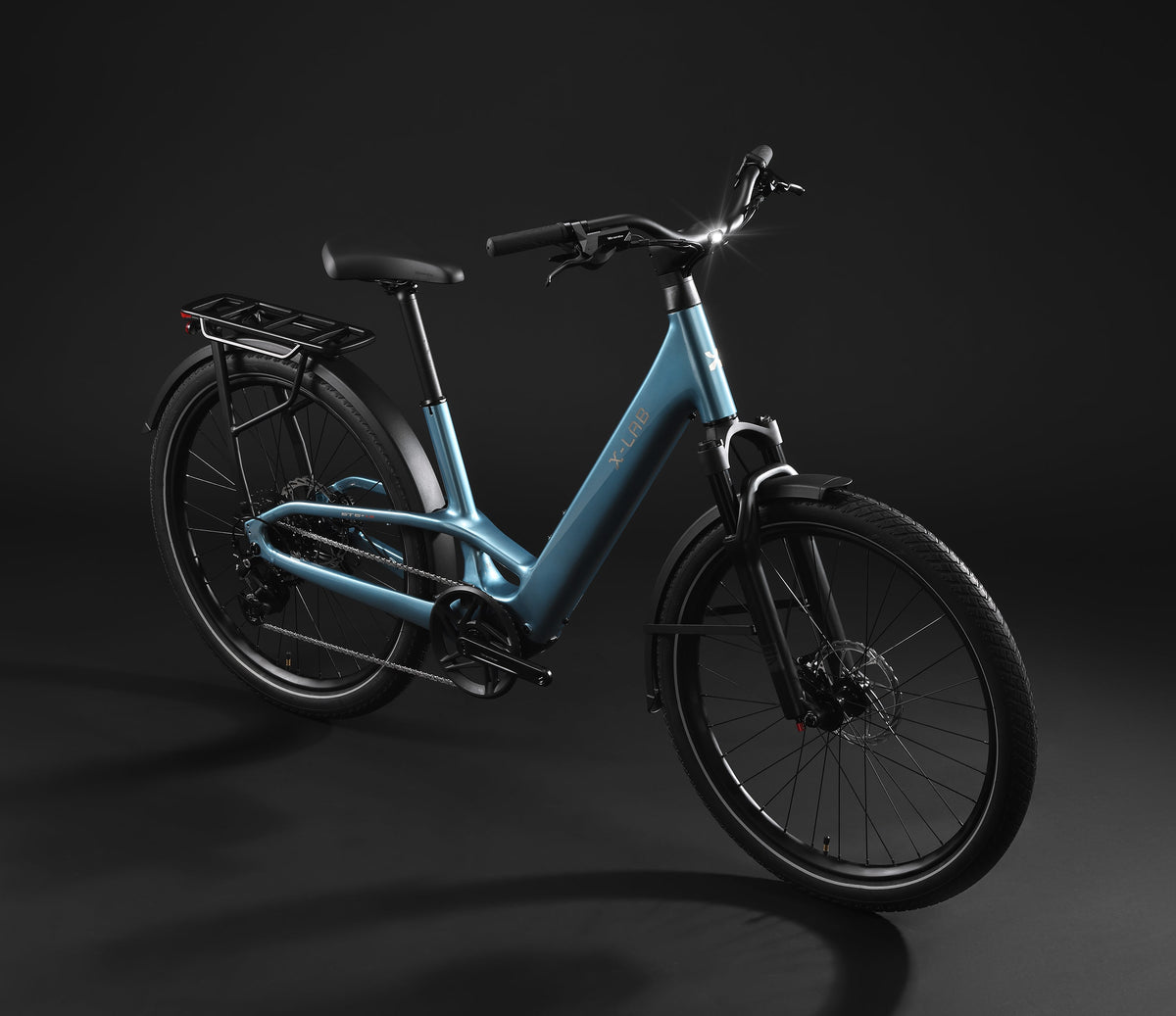

XDS X-Lab ST5+ LS Step Through Electric Bike

In stock at Grace and Pace, Alphington, Melbourne.
Authorised XDS dealer.
Built, tuned and test-ridden in our workshop before you ride it home. First follow-up service included, warranty and parts handled here.

Test ride it: 2 Wingrove St, Alphington
Hours: Mon–Fri 9am–5pm · Sat 10am–4pm · Sun by appointment
Call: (03) 8542 9500

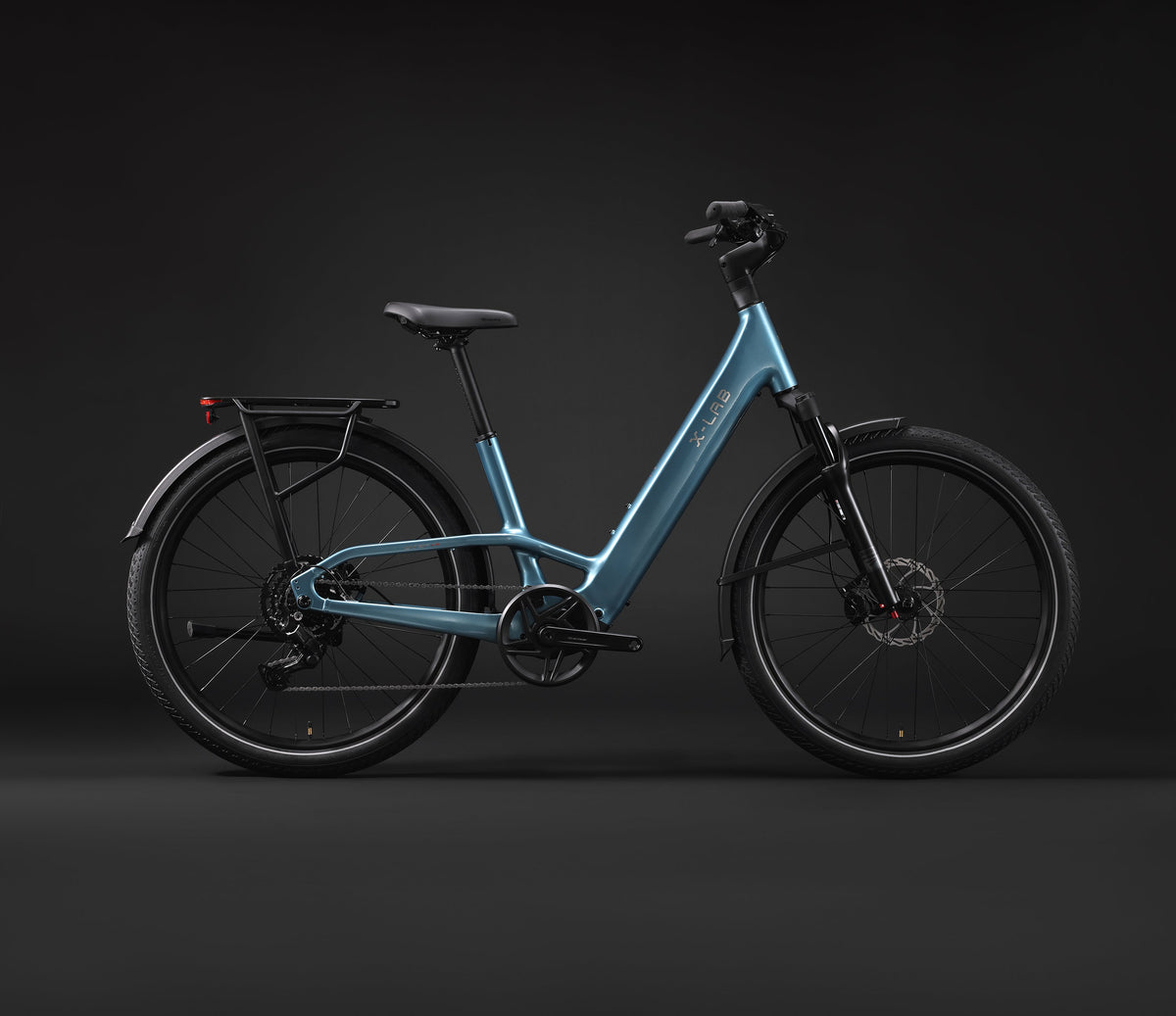

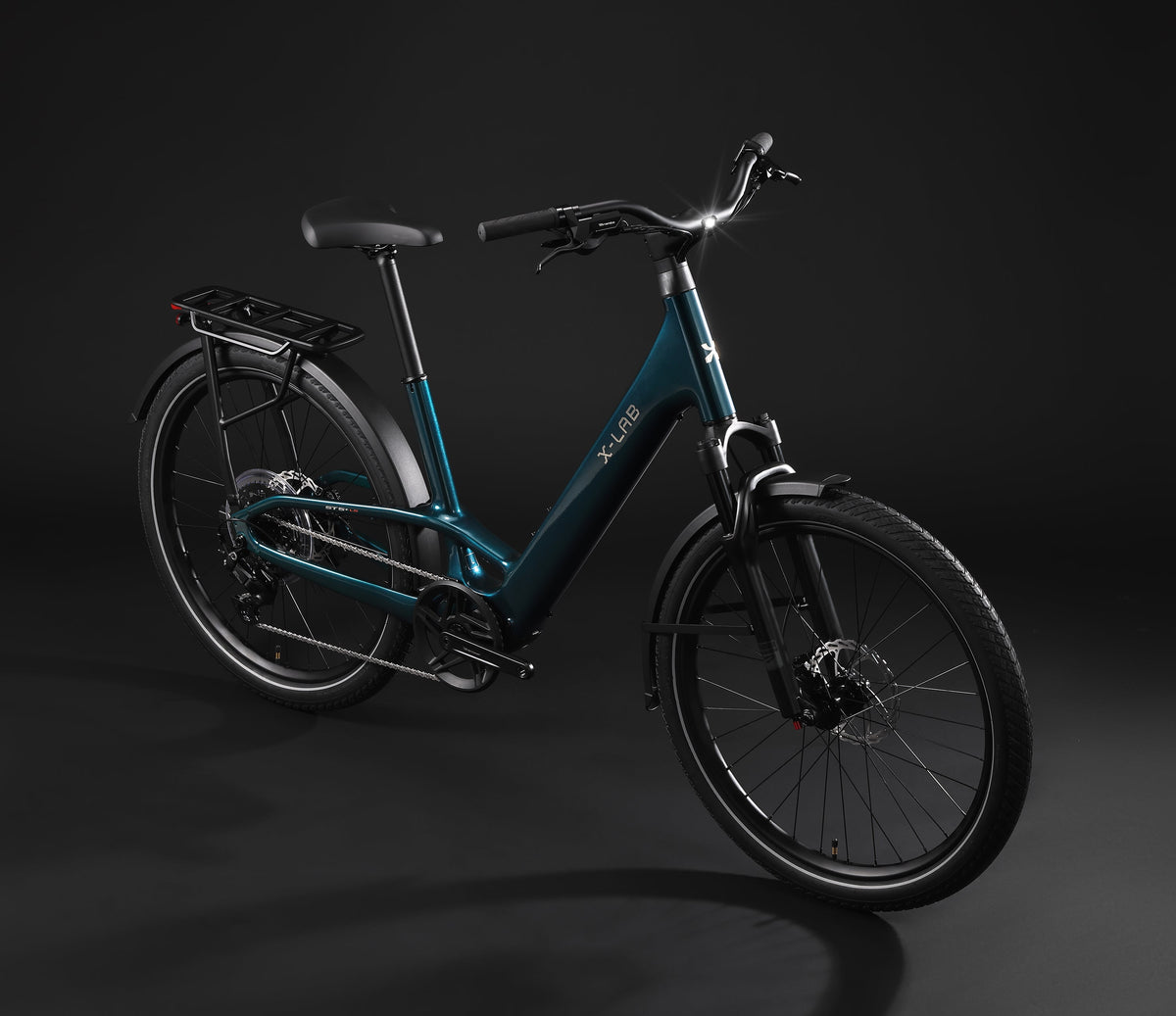

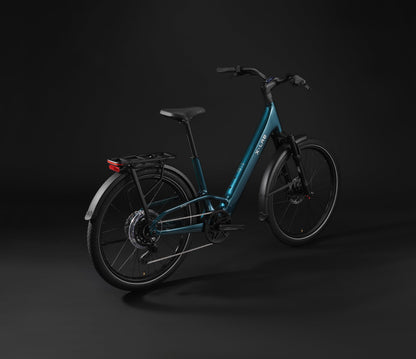

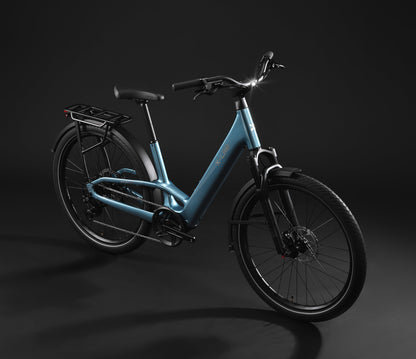

The XDS X-Lab ST5+ LS is the low-step version of the X-Lab ST5+, built around the XDS X800 mid-drive motor (250W continuous, 470W peak, 85Nm) and a 619Wh integrated lithium-ion battery. It runs Shimano CUES 9-speed gearing, Branta 4-piston hydraulic e-bike brakes with 180mm rotors, an 80mm coil suspension fork and 27.5 x 2.4" CST tyres, with an integrated Branta cockpit housing the display and front light. A MIK-HD rear rack and Quad Lock phone mount come fitted. The low-step frame makes getting on and off easier.

Specifications

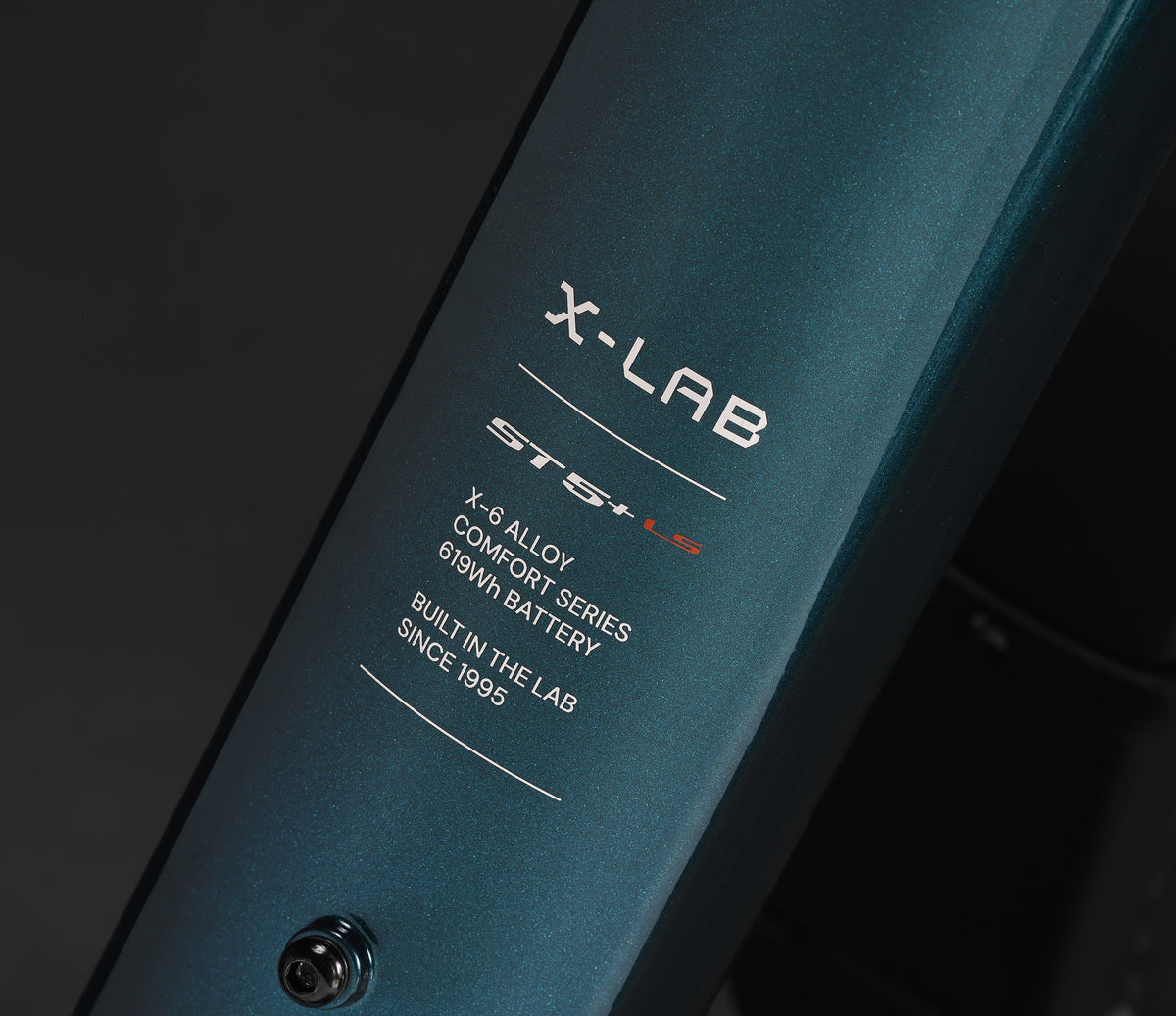

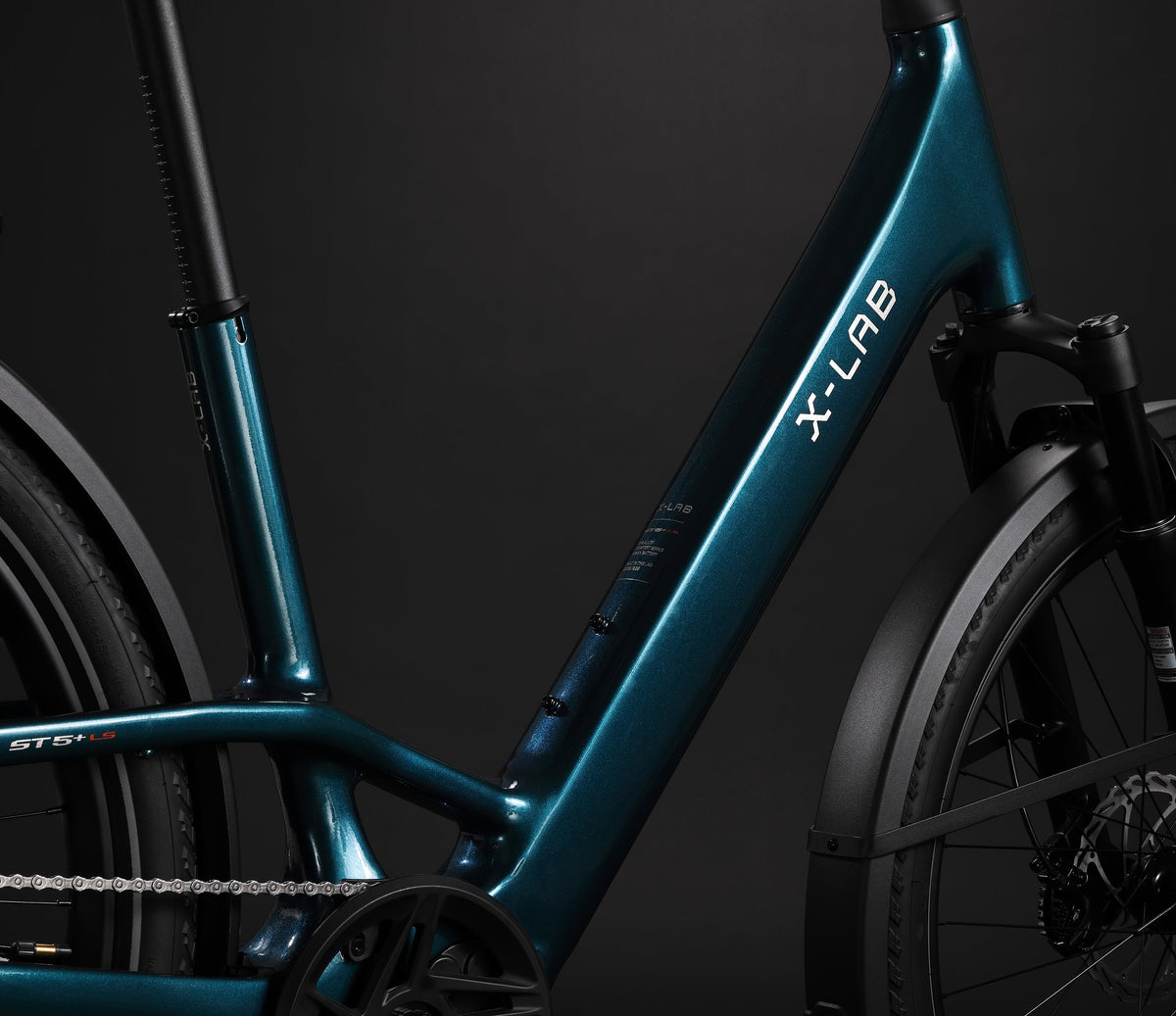

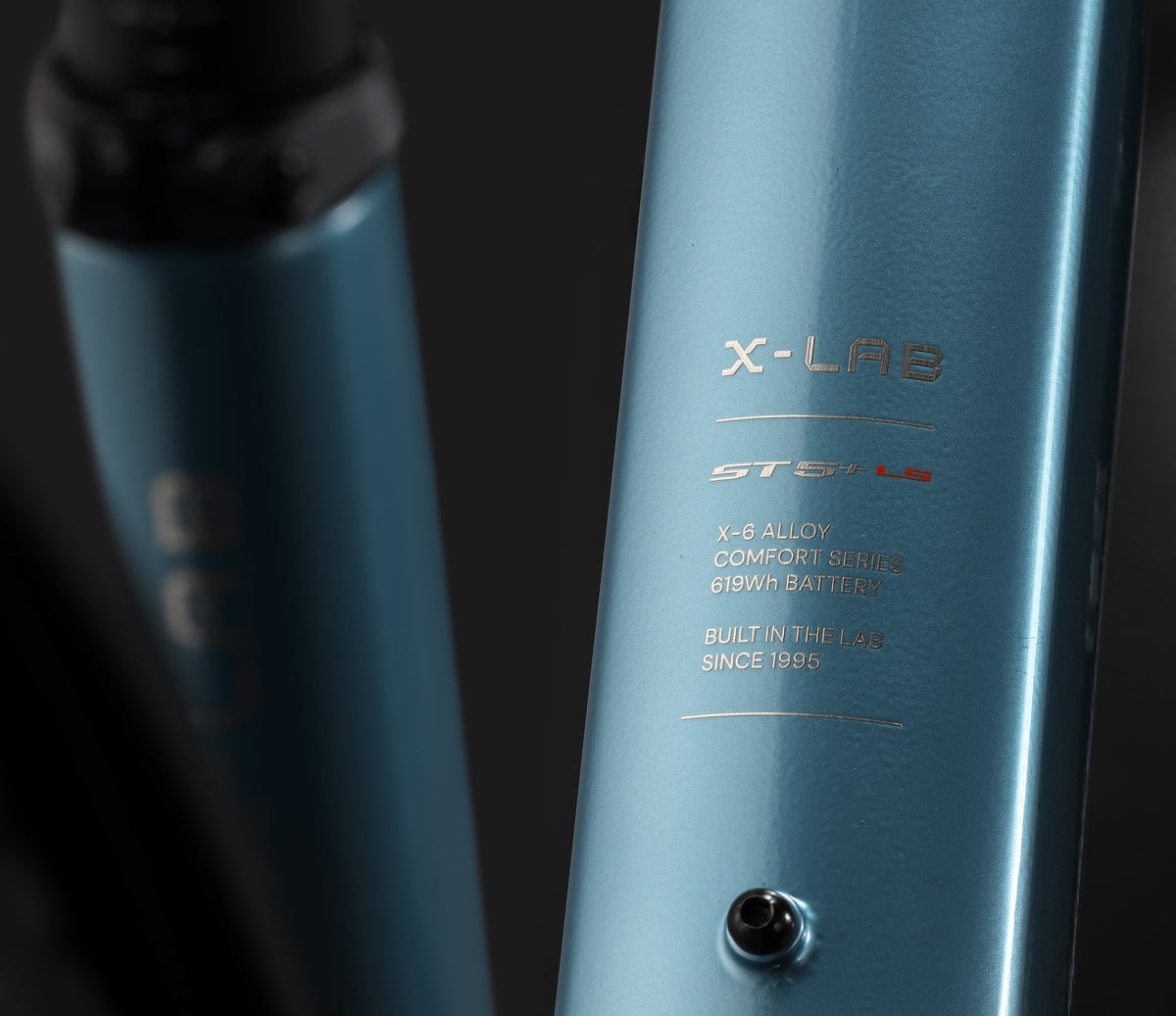

• Frame: XDS X6 aluminium low-step, UDH compatible
• Fork: XDS coil spring suspension, 80mm travel, 110x15mm thru-axle
• Motor: XDS X800 mid-drive, 250W continuous / 470W peak, 85Nm peak torque
• Battery: XDS rechargeable lithium-ion, 619Wh

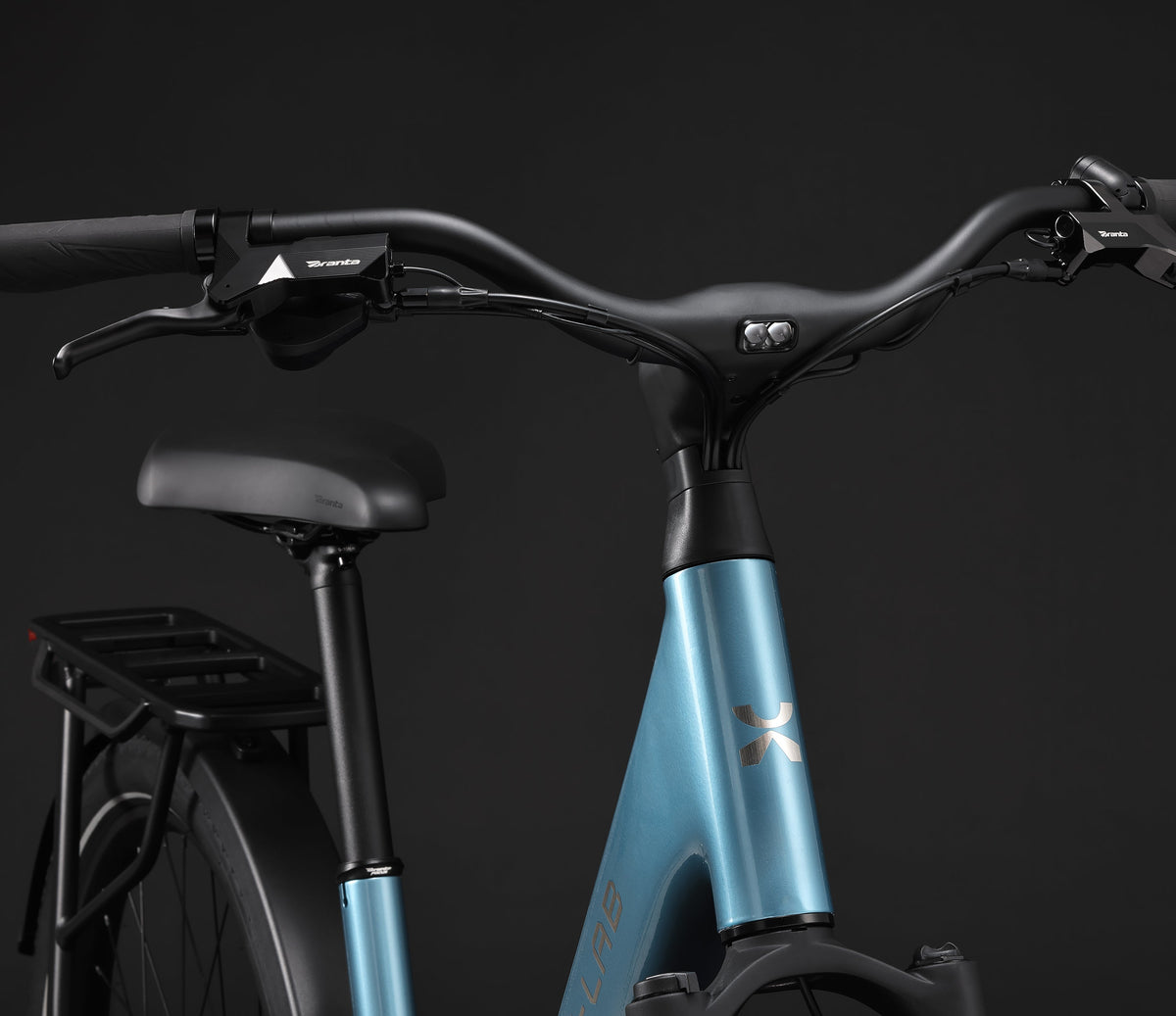

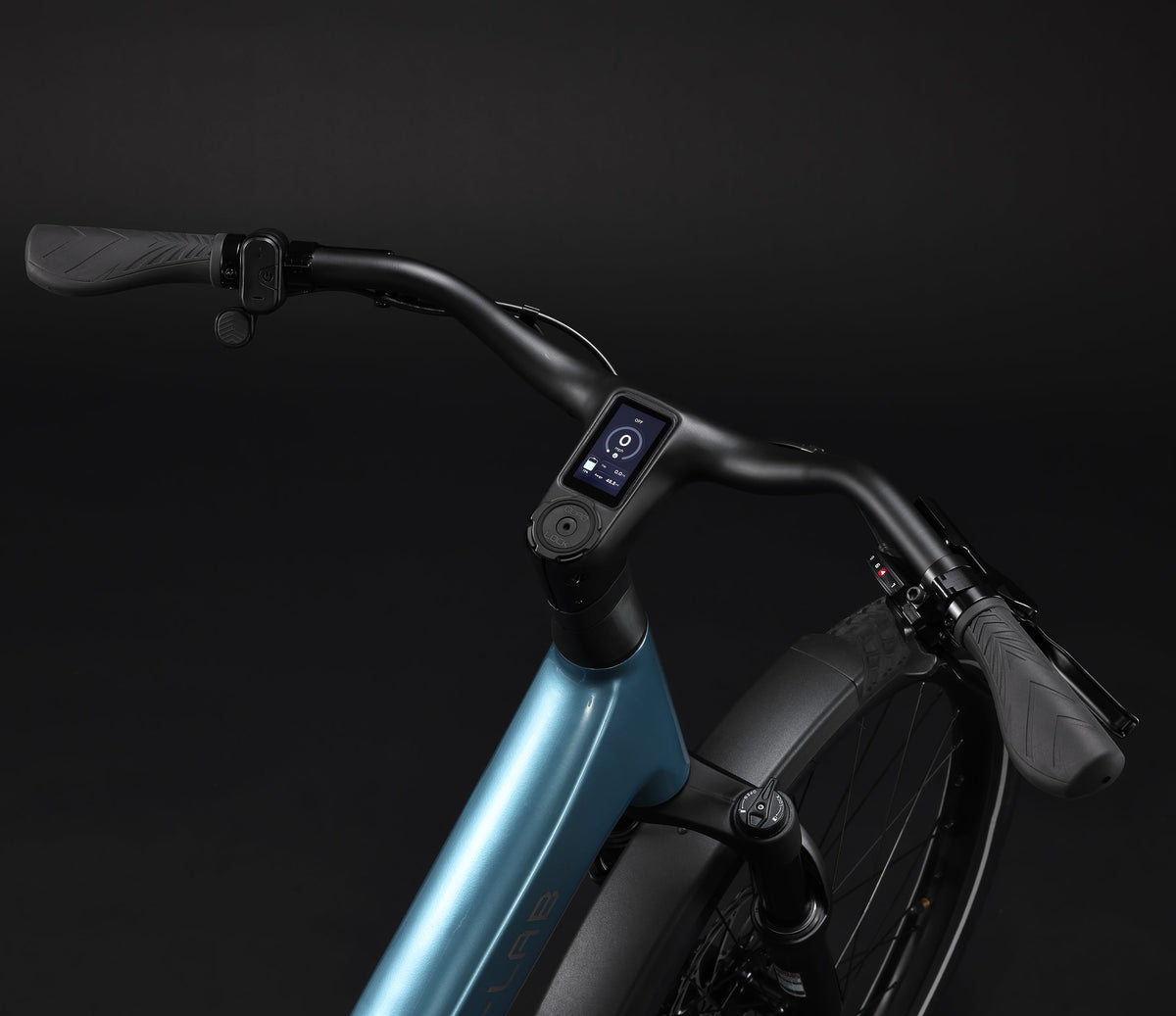

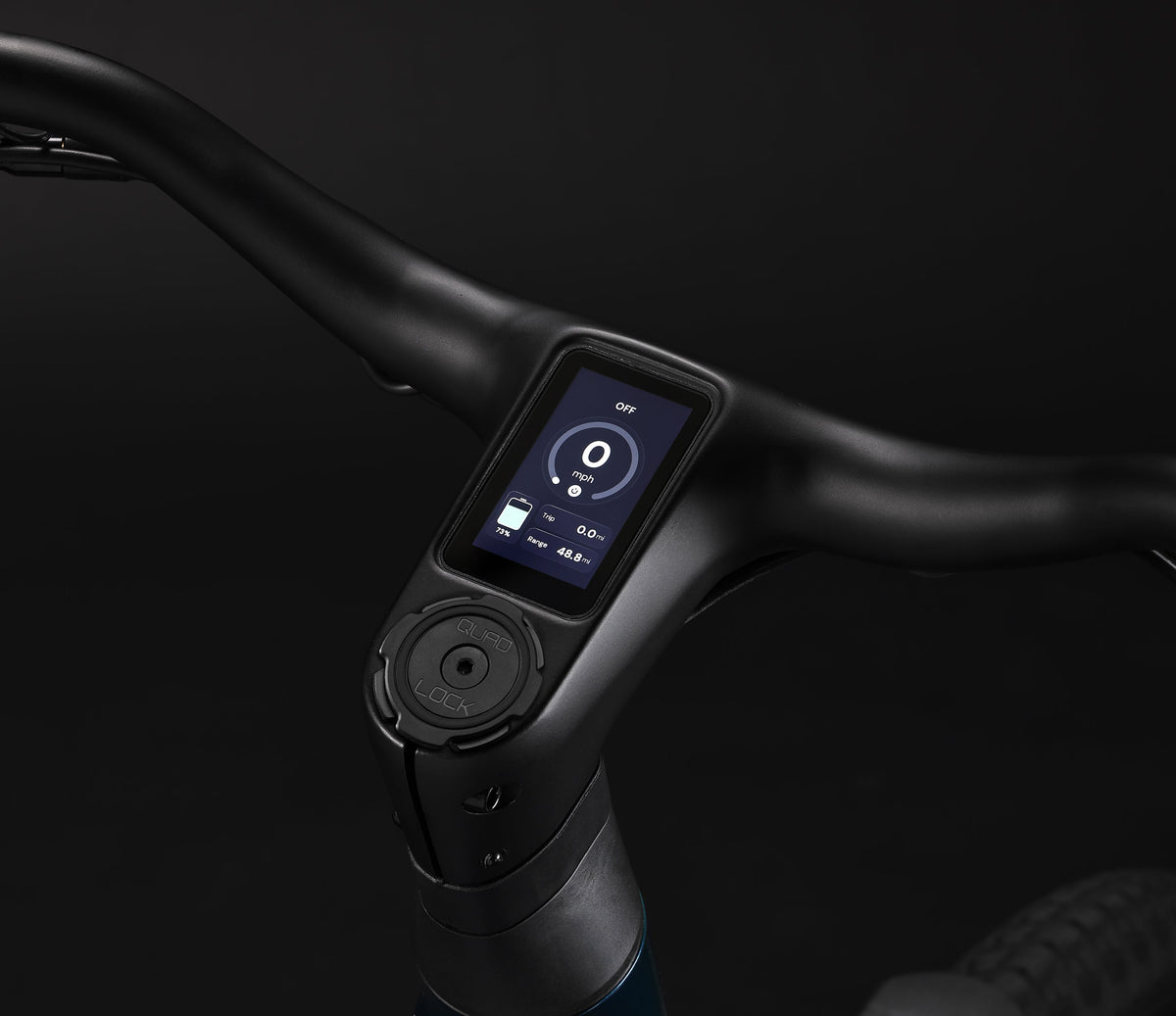

• Cockpit: Branta aluminium integrated stem with display and front light, 680mm width, 8° rise, 28° backsweep
• Shifter: Shimano CUES SL-U4000-9R
• Rear derailleur: Shimano CUES RD-U4000, 9-speed
• Cassette: Shimano CS-LG300 11-46T, 9-speed
• Crankset: Branta aluminium, 46T narrow-wide
• Chain: KMC E-Glide-S
• Brakes: Branta hydraulic e-bike brakes, 4-piston calipers, cutoff switch, 180mm rotors
• Wheelset: Branta aluminium e-bike wheelset
• Tyres: CST CTC-06 27.5 x 2.4, 30TPI, reflective strips
• Saddle: Branta C302
• Seatpost: XDS aluminium 31.6mm

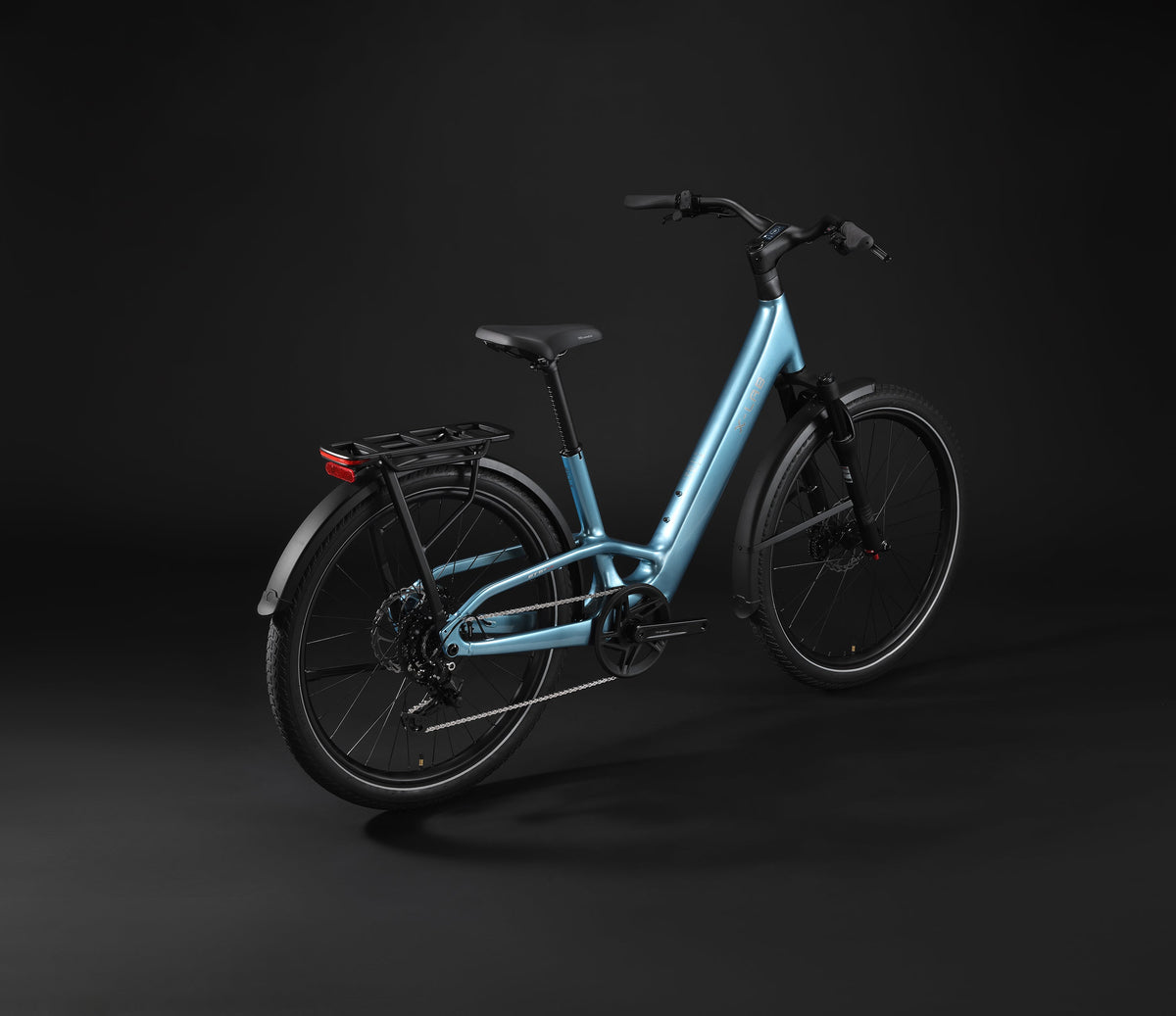

• Rear rack: MIK-HD
• Phone mount: Quad Lock
• Weight: 26kg (size M)
• Max total weight: 150kg (rider plus cargo)
• Sizes: M (157–173cm rider), L (173–188cm rider)

Specifications are subject to change by the manufacturer without notice.
